Schneider Electric Linergy AZ5 Insulated Crimp Bootlace Ferrule, 8.2 mm Pin Length, 1.6 mm Pin Diameter, Blue, 20 AZ5CE007

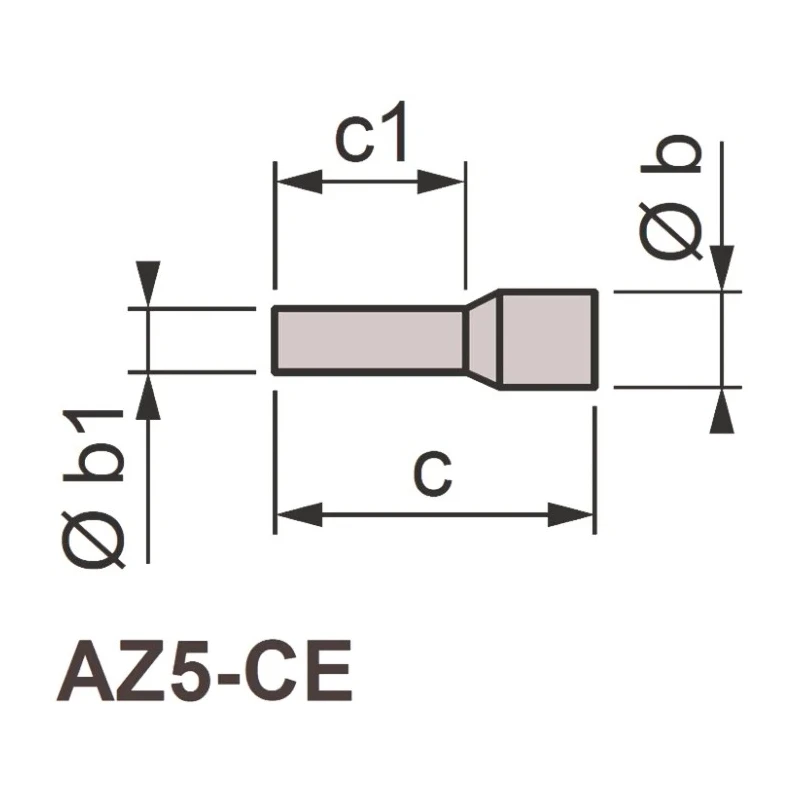

Schneider Electric AZ5CE007 Linergy AZ5 insulated Crimp Bootlace Ferrule is purpose-built to facilitate reliable and secure terminal connections in electrical and electronic systems. With a pin length of 8.2 mm and a pin diameter of 1.6 mm, this ferrule accommodates wire sizes up to 0.75 mm² or 20 AWG gauge, making it ideal for a variety of wiring tasks.

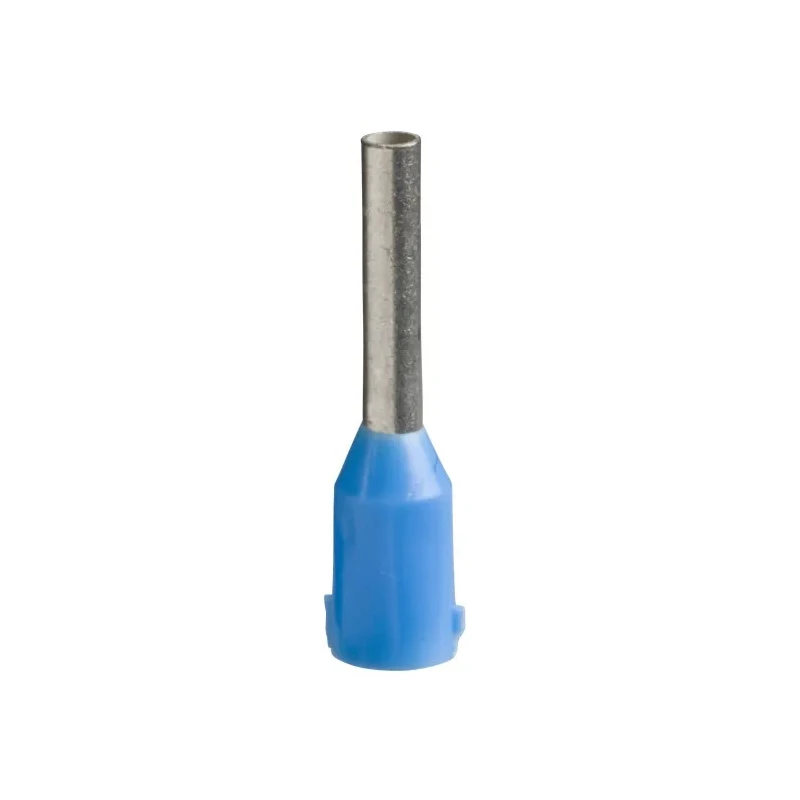

The terminal is made from high-quality copper, which ensures optimum electrical conductivity. The ferrule is insulated with blue plastic material, providing electrical isolation and mechanical protection to the cable end. Its overall length of 13 mm offers a compact and efficient design that fits standard connection receptacles.

These moulded cable ends are tinned copper tubes with an insulating collar, designed to envelop stranded flexible conductors securely, facilitating easy insertion into terminals. The product is part of the Linergy AZ5 series known for consistent quality and performance in industrial and electrical wiring applications.

Manufactured in France, the ferrule meets strict manufacturing guidelines, although no specific approvals or standards are indicated. These ferrules are commonly packaged in small boxes for ease of use and allow significant grip within dish-shaped receptacles.

This product is well-suited for use in electrical, electronics, industrial, manufacturing, and maintenance environments, supporting various power connector and cable termination needs. Its design ensures strong mechanical retention and electrical reliability in terminal connections.

Constructed with a copper terminal material ensuring excellent conductivity. Plastic insulation provides protection and enhances durability. Designed for use with wires up to 0.75 mm² or 20 AWG. Overall length measures 13 mm for precise applications.

Part of the Linergy AZ5 series known for quality performance. Manufactured in France adhering to rigorous production standards. Suitable for industrial, electrical, and electronic wiring tasks. Explore further electrical component solutions in the Wire Terminals & Splices section at EnvMart for compatible accessories and advanced connector systems.
