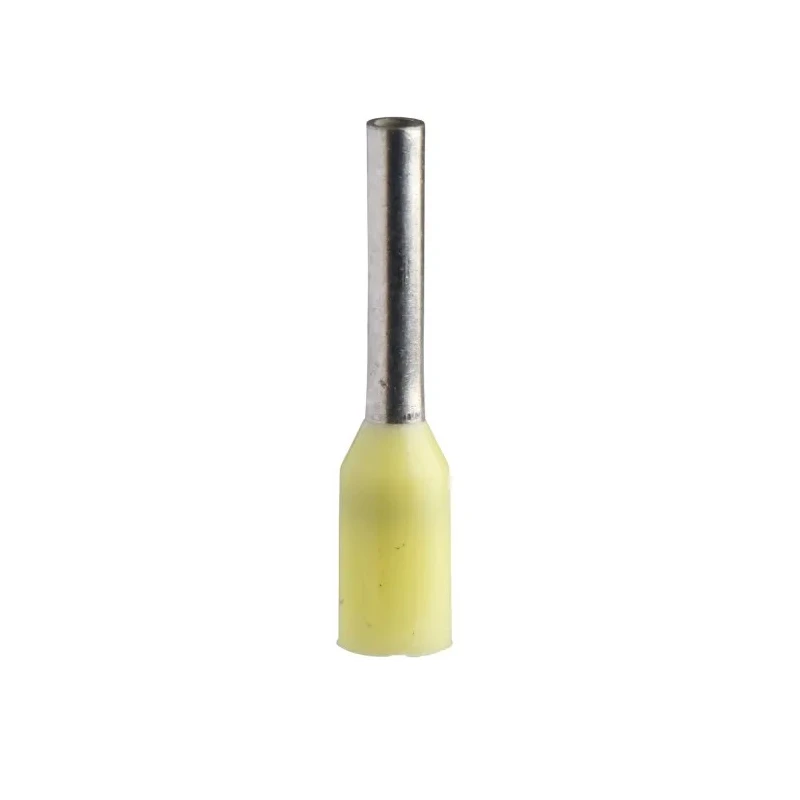

Schneider Electric Linergy DZ5 Insulated Crimp Bootlace Ferrule 1.2 mm Pin Diameter 8.2 mm Pin Length Yellow DZ5CE002

Schneider Electric DZ5CE002 Linergy Insulated Crimp Bootlace Ferrule offers secure, solder-free terminations for fine-stranded wires in industrial and automation electrical assemblies. It is engineered to provide insulated support for conductor insertion, facilitating reliable connections in terminal blocks and panel wiring scenarios.

Featuring a copper terminal tube conforming to ISO1337, the ferrule ensures excellent electrical conductivity and mechanical stability at the crimp interface. The yellow halogen-free plastic insulation enhances safety by reducing corrosive emissions, making it suitable for applications requiring environmental compliance and electrical security.

This model supports conductor sizes up to 0.25 mm² (26 AWG) and operates stably in ambient temperatures from -20 to 105°C, thus accommodating challenging industrial environments. Its compact 12 mm overall length and 8.2 mm pin length suit confined installation spaces common to control panels and relay terminals.

The DZ5CE002 is compliant with NF C 63-023 standards and is a functional component in wiring harness assembly, field-service retermination of small-gauge cables, and automation cabinet wiring. It is ideal for precise crimp connections on terminal blocks, PCB pins, and relay terminals where insulated ferrule ends are required.

The ferrule features a 1.2 mm pin diameter and 8.2 mm pin length with yellow insulated plastic. Copper terminal material ensures excellent conductivity and durability. Supports wire sizes up to 0.25 mm² (26 AWG) for fine-gauge wiring applications.

Halogen-free plastic insulation provides reduced corrosive emissions and safety in various environments. Rated to operate within a temperature range of -20 to 105°C. Complies with NF C 63-023 standards for reliable electrical performance.

Overall length of 12 mm optimizes ease of installation in tight spaces. Ideal for terminating control panel wires and crimp connections on terminal blocks and relays. Suitable for use in automation, electronics, and industrial wiring harness assemblies.

Manufactured in Germany, this insulated Crimp Bootlace Ferrule is engineered for high-quality electrical connections in professional industrial, laboratory, and manufacturing environments. It is packaged for both bench fitting and high-volume production lines.
