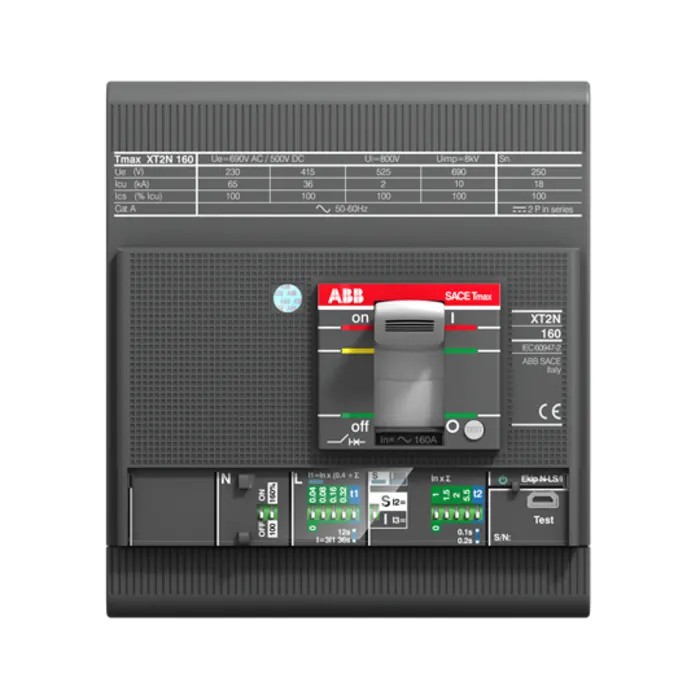

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 10A 65kA Breaking Capacity Fixed Terminal 1SDA067096R1 XT2N 160 Ekip I 10A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 10A 65kA Breaking Capacity Fixed Terminal 1SDA067096R1 XT2N 160 Ekip I 10A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	130mm
Model	1SDA067096R1 XT2N 160 Ekip I 10A FF
Depth	82.5mm
Width	120mm
Mount Type	Fixed
Current Rating	10A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	65kA
Number of Poles	4
Standards/Approvals	RoHS, CE, IEC
Rated AC Voltage	690V ac
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Rated current (In)	10 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

The circuit breaker uses solid state tripping mechanism for precise and dependable performance.
Fixed mounting and fixed terminals ensure secure installation and connection.
Rated AC voltage is 690V AC suitable for industrial applications.
Built with lever reset actuator type for easy operation and reset.
Compact dimensions of 130mm height, 120mm width, and 82.5mm depth facilitates convenient panel mounting.
Complies with RoHS, CE, and IEC standards for quality and safety.
Includes Ekip I solid state release providing advanced tripping functionality.
Designed and manufactured in Italy ensuring European quality standards.

Product Description

ABB 1SDA067096R1 XT2N 160 Ekip I 10A FF Molded Case Circuit Breaker belongs to the Tmax XT range and 1SDA06 series, engineered to provide robust protection for electrical circuits in industrial and commercial environments.

This 4-pole breaker features a fixed mounting style with fixed terminals, rated for 10A current and a high breaking capacity of 65kA. The solid state tripping mechanism integrated within the Ekip I release ensures reliable and accurate trip response to overloads and short circuits.

Operating at a rated AC voltage of 690V and rated impulse withstand voltage of 8 kV, this breaker supports frequencies between 50/60 Hz, making it suitable for diverse electrical systems.

The front-positioned lever reset actuator facilitates quick manual resetting after tripping events. Dimensionally compact at 130mm height, 120mm width, and 82.5mm depth, the breaker fits well within distribution panels and control systems.

Manufactured to meet international standards including RoHS, CE, and IEC, the device ensures compliance with global regulatory requirements. Made in Italy, this breaker combines European manufacturing excellence with ABB's commitment to quality and safety.

The circuit breaker uses solid state tripping mechanism for precise and dependable performance. Fixed mounting and fixed terminals ensure secure installation and connection. Rated AC voltage is 690V AC suitable for industrial applications.

Built with lever reset actuator type for easy operation and reset. Compact dimensions of 130mm height, 120mm width, and 82.5mm depth facilitates convenient panel mounting. Complies with RoHS, CE, and IEC standards for quality and safety.

Includes Ekip I solid state release providing advanced tripping functionality. Designed and manufactured in Italy ensuring European quality standards.

This Molded Case Circuit Breaker is ideal for electrical distribution applications in industrial, manufacturing, commercial buildings, and automation systems, safeguarding circuits against short circuits, overloads, and faults.
