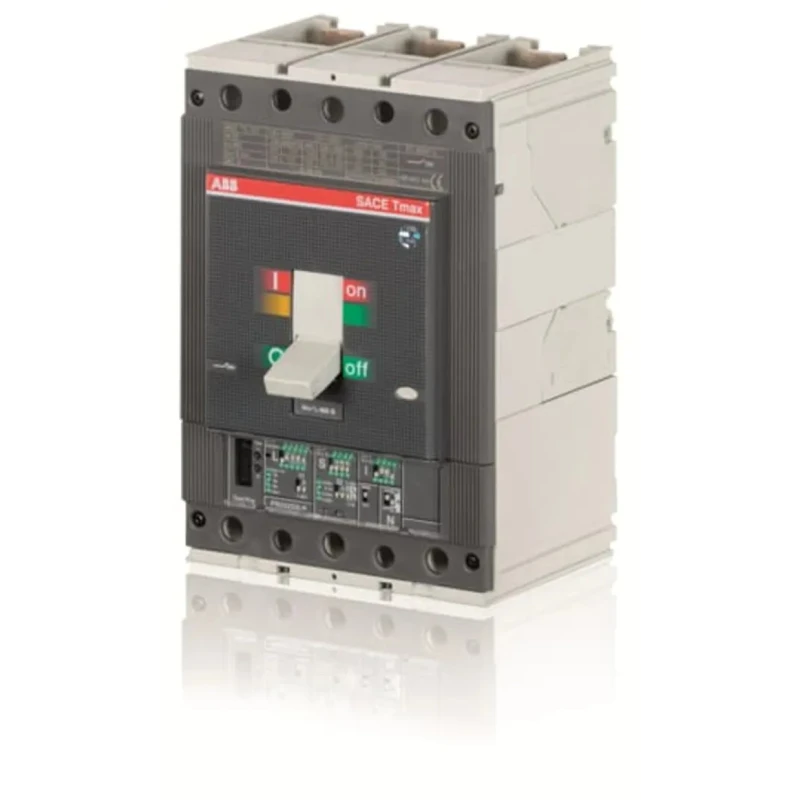

ABB Molded Case Circuit Breaker 3-Pole 630A, Breaking Capacity 100 kA, Fixed Mount 1SDA054414R1 T5H630 FF PR222-LSI 630A
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax |
| Brand | ABB |
| Height | 205mm |
| Model | 1SDA054414R1 T5H630 FF PR222-LSI 630A |
| Depth | 103.5mm |
| Width | 140mm |
| Mount Type | Fixed |
| Current Rating | 630A |
| Series | 1SDA05 |
| Terminal type | Fixed |
| Breaking Capacity | 100kA |
| Number of Poles | 3 |
| Standards/Approvals | CE, IEC, RoHS |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Solid State |
| Reset Actuator Type | Lever |
| Short-circuit performance level | H |
Key Features
- Supports 3 poles for three-phase electrical systems.
- Rated current of 630 amperes suitable for heavy-duty applications.
- Fixed mounting and terminal type ensure robust and stable electrical connections.
- Complies with CE, IEC, and RoHS standards for quality and safety.
- Tripping mechanism is solid-state, providing precise protection.
- Lever reset actuator for easy manual operation.
- Electrical durability supports 60 cycles per hour ensuring reliability.
- Rated insulation voltage up to 1000 V enhances electrical safety.
Product Description
ABB 1SDA054414R1 T5H630 FF PR222-LSI 630A Molded Case Circuit Breaker is a professional-grade 3-pole circuit breaker rated at 630 amperes with a breaking capacity of 100 kA designed for demanding industrial and commercial electrical systems. It is engineered for fixed mounting and features front terminals for convenient installation and maintenance. Its solid-state tripping mechanism guarantees precise and reliable disconnection in case of overloads or short circuits.
This circuit breaker operates at 690V AC rated voltage and withstands an 8 kV rated impulse voltage, ensuring robustness under electrical stress. It offers an electrical durability of 60 operations per hour, making it suitable for applications requiring frequent switching cycles. The device complies with international standards including CE, IEC, and RoHS, confirming its adherence to quality, environmental, and safety requirements.
The compact design with dimensions of 205mm height, 140mm width, and 103.5mm depth allows for efficient panel space utilization. The actuator is lever type for easy manual reset after a trip event. It features a short-circuit performance level of H to manage high fault currents safely.
Ideal for industrial, manufacturing, electrical distribution, and commercial applications where high reliability and protection are critical. The device is manufactured in Italy, assuring superior build quality and precision engineering.
3-pole configuration for three-phase circuits. 630A current rating for high-capacity protection. 100 kA breaking capacity for maximum fault interruption. Solid-state tripping mechanism for rapid response. Rated insulation voltage of 1000V enhances system safety.
Compliant with CE, IEC, and RoHS standards. Fixed mounting type for secure installation. Dimensions: 205mm (H) x 140mm (W) x 103.5mm (D). Lever reset actuator for quick manual resetting. Electrical durability of 60 cycles per hour for high reliability.
Explore a wide range of ABB circuit breakers and electrical components on EnvMart's platform for industrial and commercial power protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This molded case circuit breaker has a current rating of 630A, making it suitable for heavy-duty applications.
It features a breaking capacity of 100 kA, which allows it to interrupt high fault currents safely.
The rated AC voltage for this unit is 690V, ensuring compatibility with various industrial and commercial electrical systems.
This model utilizes a solid-state tripping mechanism, providing precise and reliable disconnection during overloads or short circuits.
The dimensions of this circuit breaker are 205mm in height, 140mm in width, and 103.5mm in depth.
It supports fixed mounting, ensuring secure installation and stable electrical connections.
The reset actuator for this circuit breaker is lever type, allowing for easy manual resetting after a trip event.
It complies with CE, IEC, and RoHS standards, confirming its adherence to quality, environmental, and safety requirements.
The short-circuit performance level of this circuit breaker is rated as H, designed to manage high fault currents safely.
This model is a 3-pole circuit breaker, suitable for three-phase electrical systems.
It has an electrical durability of 60 operations per hour, making it suitable for applications requiring frequent switching cycles.
This circuit breaker is manufactured in Italy, ensuring quality and precision engineering.
