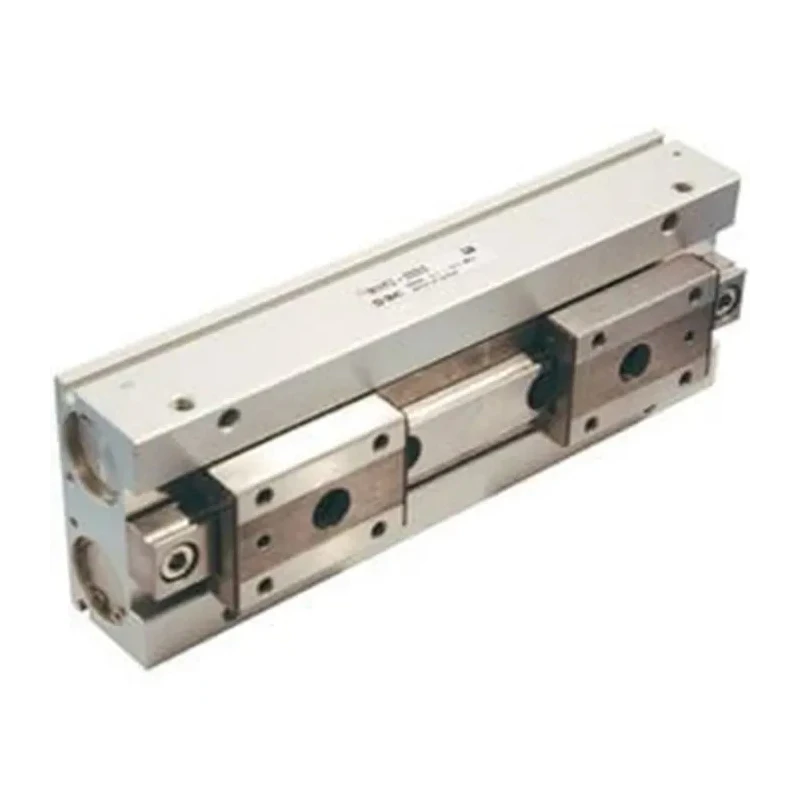

SMC 2 Finger Double Acting Low Profile Pneumatic Gripper, Bore Diameter 16mm, Stroke Length 16mm, MHF2-16DR



Category Pneumatic Gripper Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	7 bar
Height	33mm
Length	72mm
Model	MHF2-16DR
Gross Weight	350g
Width	50mm
Series	MHF2
Maximum Operating Temperature	60°C
Port Size	M5 x 0.8
Minimum Operating Temperature	-10°C
Stroke Length	16mm
Bore Diameter	16mm
Open Width	16mm
Action Type	Double Acting
Number of Fingers	2
Gripping Type	Low Profile
Gripping Force - Internal	90N
Closed Width	16mm

Key Features

Low profile design reduces height to approximately one third compared to equivalent grippers.
Double acting operation ensures precise control of gripping actions.
Bore diameter is 16mm with a stroke length of 16mm suitable for versatile applications.
Maximum operating pressure is 7 bar, providing strong gripping force internally and externally of 90N.
Operating temperature range from -10°C to 60°C for reliable performance under varied conditions.
M5 x 0.8 port size enables convenient pneumatic connections.
Maximum operating frequency is 120 cycles per minute, allowing for high-speed applications.
Constructed with quality materials ensuring durability and smooth operation.

Product Description

SMC MHF2-16DR Pneumatic Gripper is a precision 2 finger double acting gripper designed with a low profile for substantial space savings and enhanced mounting repeatability. The gripper's height is approximately one third the size of comparable units, making it ideal for limited space industrial and manufacturing settings.

This gripper operates with a bore diameter of 16mm and offers a stroke length of 16mm, providing balanced gripping force internally and externally rated at 90N. It is engineered for smooth and accurate gripping action ensuring improved operational accuracy and strong holding power.

Its compact dimensions (length 72mm, width 50mm, height 33mm, closed width 16mm) and M5 x 0.8 ports facilitate installation in various pneumatic systems. The maximum operating pressure is 7 bar with a reliable maximum frequency of 120 cycles per minute, suited for automated pneumatic applications in industrial, manufacturing, automation, and fluid power tool sectors.

Capable of performing under ambient temperatures ranging from -10°C to 60°C, this gripper withstands harsh environments without compromising performance. Its low profile design improves positioning for attachments and offers excellent mounting repeatability to ease integration into complex machinery.

Applications include pneumatic cylinder and actuator systems requiring efficient gripping capabilities such as material handling, assembly automation, and robotics. Low profile enables space-saving within pneumatic assemblies.

Double acting action delivers strong and consistent gripping force. High operating frequency supports rapid cycle processes. Robust construction ensures longevity and smooth operation. Temperature and pressure ranges accommodate varied industrial environments.
