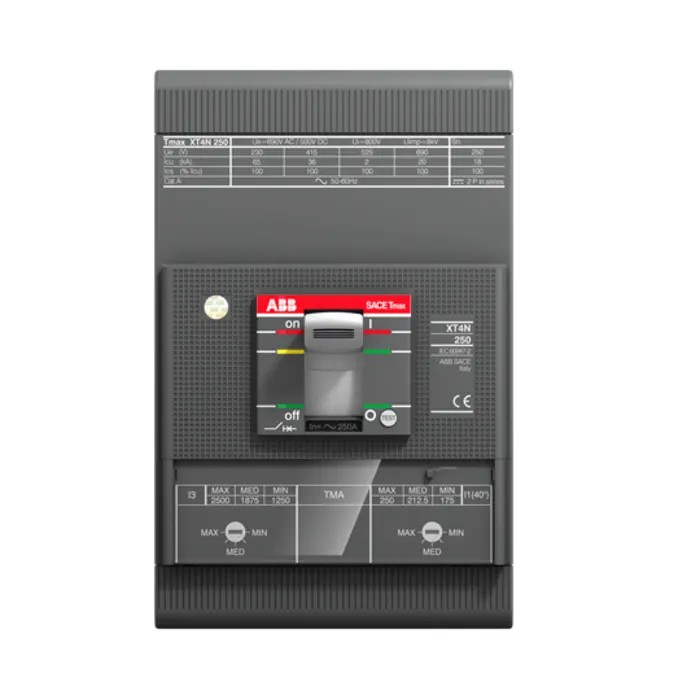

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 10A 65kA Breaking Capacity Fixed Mount 690V AC 1SDA068112R1 XT4N 160 MA 10 FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 10A 65kA Breaking Capacity Fixed Mount 690V AC 1SDA068112R1 XT4N 160 MA 10 FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	160mm
Model	1SDA068112R1 XT4N 160 MA 10 FF
Depth	82.5mm
Width	105mm
Mount Type	Fixed
Current Rating	10A
Series	Tmax XT
Terminal type	Fixed
Breaking Capacity	65kA
Number of Poles	3
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Designed for Disassembly
Tripping Mechanism	Magnetic
Reset Actuator Type	Lever
Rated current (In)	10 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

The circuit breaker operates at rated AC voltage of 690V and DC voltage of 500V.
It features a thermomagnetic release with magnetic tripping mechanism for protection.
Front fixed terminals ensure secure connections.
The product complies with CE, IEC, and RoHS standards.
The breaker is equipped with a lever reset actuator type for ease of operation.
Its compact dimensions are 160mm height, 105mm width, and 82.5mm depth.
Rated uninterrupted current is 160A with a rated impulse withstand voltage of 8 kV.
Designed for industrial and commercial electrical protection applications.

Product Description

ABB 1SDA068112R1 XT4N 160 MA 10 FF Molded Case Circuit Breaker is engineered for high-performance industrial and commercial electrical protection. This 3-pole circuit breaker offers a reliable current rating of 10A with an exceptional breaking capacity of 65 kA, ensuring the safety of electrical installations in demanding environments.

Designed for fixed mounting, the breaker supports rated AC voltage up to 690V and DC voltage up to 500V, making it adaptable for various electrical systems. The thermomagnetic release type combined with a magnetic tripping mechanism provides fast and precise protection against overloads and short circuits.

The front fixed terminals guarantee robust connection integrity and ease of installation. Compactly sized, the device measures 160mm in height, 105mm in width, and 82.5mm in depth, allowing for efficient integration into electrical panels and distribution boards.

Compliance with CE, IEC, and RoHS standards assures conformity to international safety and environmental requirements. The lever type reset actuator enables straightforward resetting after fault clearance, enhancing operational convenience.

Manufactured in Italy, this Molded Case Circuit Breaker embodies quality craftsmanship and advanced technology, suitable for a wide range of electrical protection needs in industrial automation, manufacturing plants, commercial buildings, and infrastructure projects.

The circuit breaker operates at rated AC voltage of 690V and DC voltage of 500V. It features a thermomagnetic release with magnetic tripping mechanism for protection. Front fixed terminals ensure secure connections. The product complies with CE, IEC, and RoHS standards.

The breaker is equipped with a lever reset actuator type for ease of operation. Its compact dimensions are 160mm height, 105mm width, and 82.5mm depth. Rated uninterrupted current is 160A with a rated impulse withstand voltage of 8 kV.

Designed for industrial and commercial electrical protection applications. Manufactured in Italy, emphasizing high-quality European standards. Explore more high-quality electrical protection devices in the EnvMart catalog tailored for industrial and commercial users seeking dependable circuit interruption solutions.
