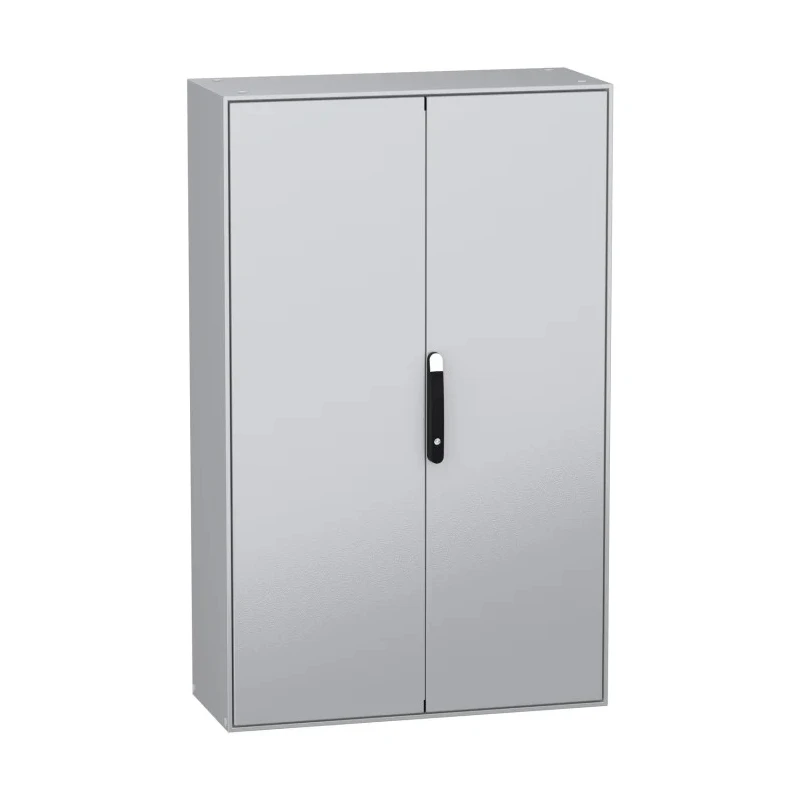

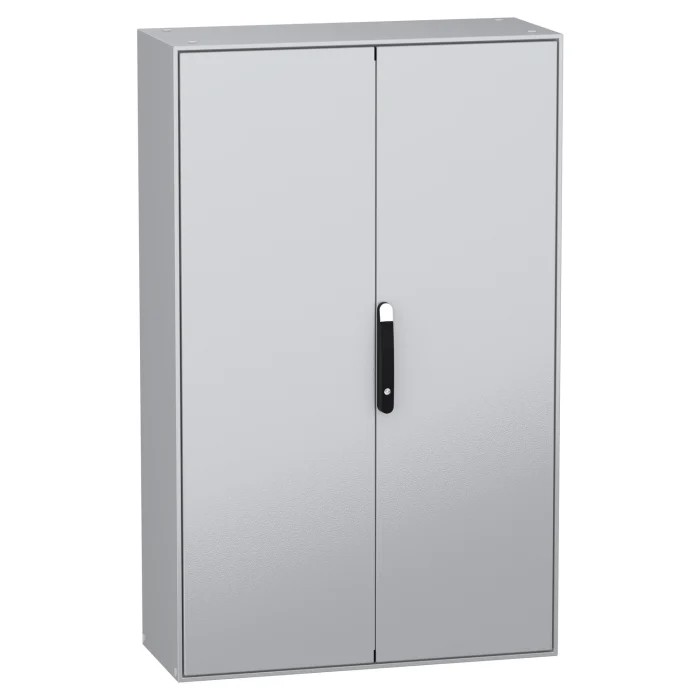

Schneider Electric NSYSF Series Sheet Steel General Purpose Enclosure Light Grey with Black Handle, 1600 x NSYSM1612302DP
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | Schneider Electric |
| Colour | Enclosure: Light Grey, Handle: Black |
| Body Material | Sheet Steel |
| Model | NSYSM1612302DP |
| IP Rating | IP55 |
| Gross Weight | 130.5kg |
| Series | NSYSF |
| External Width | 1200mm |
| External Height | 1600mm |
| Standards/Approvals | IEC 62208, UL BV DNV |
| Better World Claim | Designed for Disassembly |
| Lid Colour | Grey |
| IK Rating | IK10 |
| Colour Enclosure | Light Grey, Handle: Black |
| Schneider Electric NSYSF Series Enclosure | Light Grey, Handle: Black Grey Lid Sheet Steel General Purpose Enclosure |
Key Features
- Constructed with robust sheet steel for durability and long service life.
- External dimensions of 1600mm height, 1200mm width, and 300mm depth.
- Light grey enclosure body with black grey handle for ergonomic operation.
- Provides IP55 ingress protection suitable for industrial indoor and outdoor environments.
- Includes mounting plate for easy setup and installation.
- Complies with international standards IEC 62208, UL, BV, and DNV certification.
- Designed for floor-standing mounting configuration enhancing stability.
- Features IK10 impact resistance rating for strong mechanical protection.
Product Description
Schneider Electric NSYSM1612302DP is a High-Quality Sheet Steel General Purpose Enclosure from the NSYSF Series designed for reliable electrical equipment protection in industrial, commercial, and institutional applications. The enclosure measures 1600 mm in height, 1200 mm in width, and 300 mm in depth, providing ample space for housing electrical components safely.
The enclosure body is coated with an epoxy polyester powder finish in light grey color, complemented by a black grey handle, offering durability and resistance against corrosion and environmental factors. It meets IP55 rating under IEC 60529 standards, ensuring protection against dust ingress and water jets, making it suitable for demanding indoor and outdoor industrial environments.

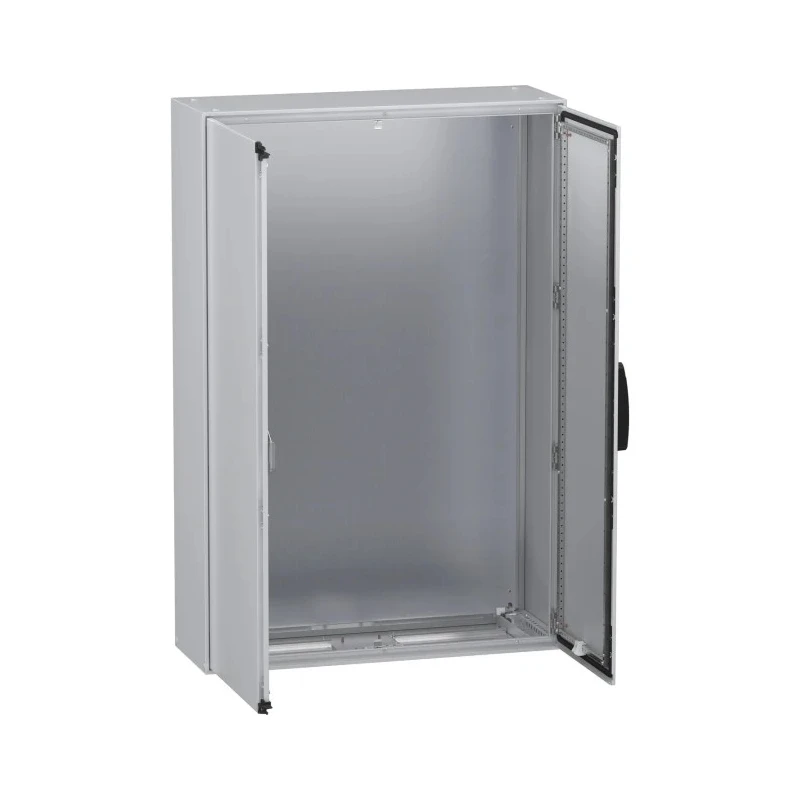

This model features a mounting plate to facilitate the installation of electrical equipment and supports floor-standing mounting for stability and ease of access. It complies with IEC 62208 standards and approvals from UL, BV, and DNV, ensuring compliance with international safety and quality requirements.
The IK10 rating guarantees impact resistance against mechanical shocks and vandalism, protecting sensitive equipment inside. The enclosure design supports industrial automation, electrical equipment housing, manufacturing facilities, and commercial building installations.
Constructed with durable sheet steel body and epoxy polyester powder coating. External dimensions: 1600mm (H) x 1200mm (W) x 300mm (D). IP55 protection rating for dust and water ingress resistance. Includes convenient black grey handle and mounting plate.
Certified to IEC 62208, UL, BV, and DNV standards. Robust impact resistance with IK10 rating. Designed for floor-standing mounting installations. Manufactured in Spain with sustainability focus.
This Schneider Electric NSYSF Series enclosure is ideal for electrical protection applications in industrial plants, manufacturing units, HVAC installations, and infrastructure projects. It offers reliable safeguarding of electrical controls and wiring against environmental hazards and mechanical impacts.
Browse more high-quality Schneider Electric electrical enclosures and panels at EnvMart to meet diverse industrial and commercial requirements.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this enclosure are 1600mm in height, 1200mm in width, and 300mm in depth.
It has an IP55 ingress protection rating, ensuring protection against dust ingress and water jets.
The enclosure is constructed from sheet steel and features an epoxy polyester powder coating.
The gross weight of this enclosure is 130.5kg.
It complies with IEC 62208 standards and has approvals from UL, BV, and DNV.
This model has an IK10 impact resistance rating, providing strong mechanical protection.
Yes, it includes a mounting plate for easy setup and installation.
The enclosure is light grey, while the handle is black grey.
It is designed for floor-standing mounting configuration, enhancing stability.
This enclosure is manufactured in Spain.
It is suitable for industrial, commercial, and institutional applications, particularly for housing electrical equipment.

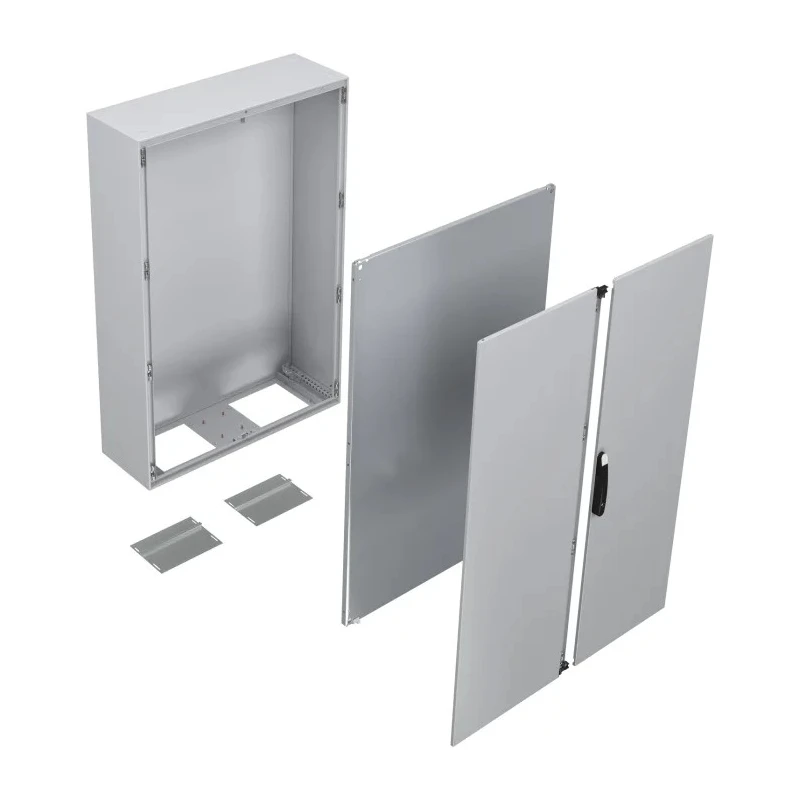

It is designed for disassembly, reflecting a focus on sustainability.
