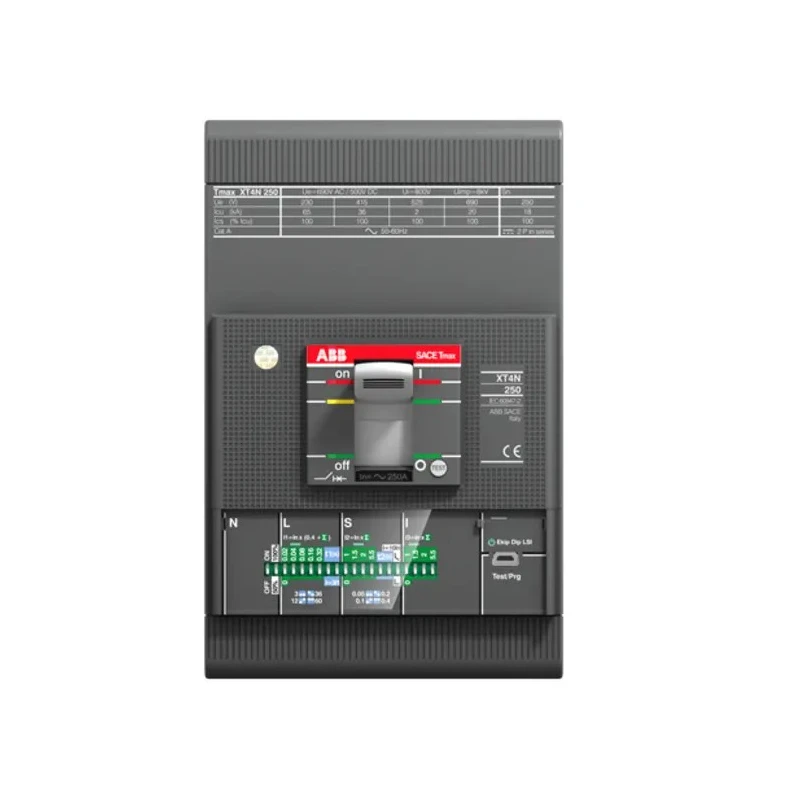

ABB Molded Case Circuit Breaker Tmax XT 3-Pole 250A 690V AC Breaking Capacity 150 kA 1SDA068565R1 XT4L 250 Ekip LSI 250A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Molded Case Circuit Breaker Tmax XT 3-Pole 250A 690V AC Breaking Capacity 150 kA 1SDA068565R1 XT4L 250 Ekip LSI 250A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	160mm
Model	1SDA068565R1 XT4L 250 Ekip LSI 250A FF
Depth	82.5mm
Width	105mm
Mount Type	Fixed
Current Rating	250A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	150kA
Number of Poles	3
Standards/Approvals	IEC, RoHS, CE
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Rated current (In)	250 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

This MCCB supports rated AC voltage up to 690V for high-voltage applications.
Equipped with a solid state tripping mechanism for precise circuit protection.
Features a lever-type reset actuator for easy manual operation.
Designed with fixed mounting and terminals for secure installation.
Constructed to meet IEC, RoHS, and CE standards ensuring quality and safety compliance.
Its compact dimensions of 160mm height, 105mm width, and 82.5mm depth optimize panel space.
Manufactured in Italy with a Better World design focused on disassembly and sustainability.
Operates safely at rated frequency of 50/60 Hz with an impulse withstand voltage of 8 kV.

Product Description

ABB 1SDA068565R1 XT4L 250 Ekip LSI 250A FF Molded Case Circuit Breaker from the Tmax XT range is a high-performance electrical protection device designed for industrial and commercial applications. Rated for 250A current with a breaking capacity of 150 kA, it ensures dependable interruption of electrical faults.

Its three poles and fixed mounting type enable secure and stable installation in electrical panels, with front-mounted fixed terminals facilitating easy wiring connections. The breaker operates with a solid state tripping mechanism incorporated in the Ekip LSI frame for precise and reliable circuit protection dynamics.

Designed for voltages up to 690V AC and frequencies of 50/60 Hz, this MCCB delivers robust performance in demanding environments. Its mechanical lever reset actuator enhances operational convenience, enabling quick breaker reset after trip events.

Dimensions are compact at 160mm height, 105mm width, and 82.5mm depth, suitable where panel space is limited. The device complies with key safety standards including IEC, RoHS, and CE, making it compliant with international regulatory requirements. The MCCB is also a Better World product emphasizing environmentally responsible design with a focus on disassembly.

Manufactured in Italy, this circuit breaker is ideal for industrial automation, electrical distribution, manufacturing plants, and infrastructure sectors that require high reliability and safety in power circuits.

This MCCB supports rated AC voltage up to 690V for high-voltage applications. Equipped with a solid state tripping mechanism for precise circuit protection. Features a lever-type reset actuator for easy manual operation.

Designed with fixed mounting and terminals for secure installation. Constructed to meet IEC, RoHS, and CE standards ensuring quality and safety compliance. Its compact dimensions of 160mm height, 105mm width, and 82.5mm depth optimize panel space.

Manufactured in Italy with a Better World design focused on disassembly and sustainability. Operates safely at rated frequency of 50/60 Hz with an impulse withstand voltage of 8 kV. Explore the extensive ABB range and related industrial electrical protection devices available at EnvMart for reliable performance and certified safety.
