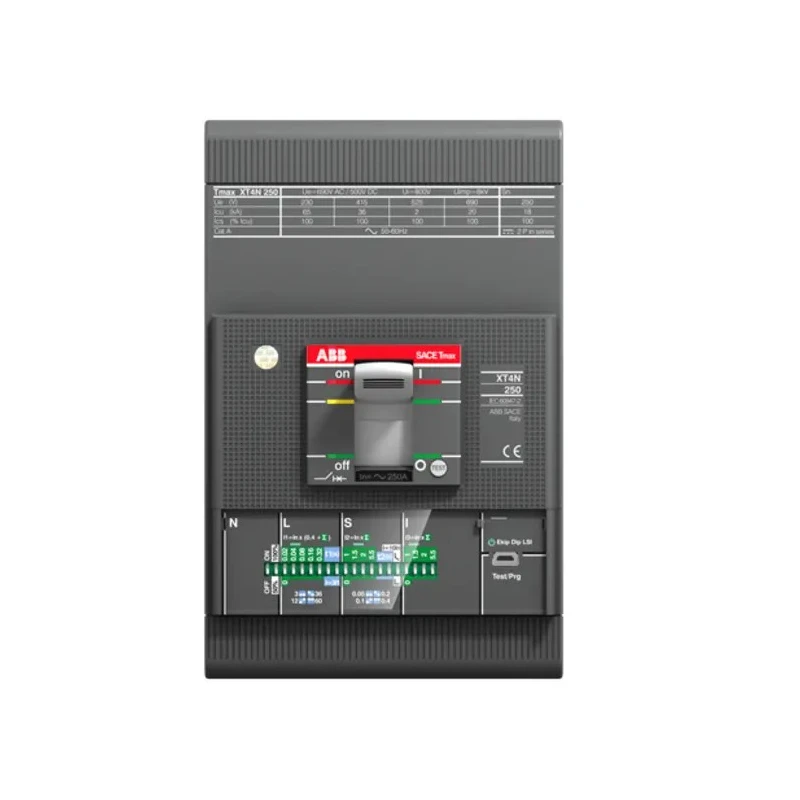

ABB Molded Case Circuit Breaker 3-Pole 100A Breaking Capacity 150 kA Fixed XT4L 1SDA06 1SDA068558R1

Free Delivery in India | Lowest Global Shipping Charges

ABB Molded Case Circuit Breaker 3-Pole 100A Breaking Capacity 150 kA Fixed XT4L 1SDA06 1SDA068558R1



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	XT4L
Brand	ABB
Height	160mm
Model	XT4L
Depth	82.5mm
Width	105mm
Mount Type	Fixed
Current Rating	100A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	150kA
Number of Poles	3
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Short circuit performance level	L

Key Features

Designed with a fixed mounting type ensuring stable installation.
Rated operational voltage of 690V AC for versatile industrial applications.
Solid state tripping mechanism for reliable and precise circuit protection.
Three poles with a current rating of 100A catering to three-phase systems.
Compact dimensions of 160 mm height, 105 mm width, and 82.5 mm depth for space efficiency.
Complies with CE, IEC, and RoHS standards assuring quality and environmental compliance.
Equipped with a lever-type reset actuator for convenient operation.
Better World product designed for disassembly and sustainability considerations.

Product Description

ABB XT4L Molded Case Circuit Breaker model 1SDA068558R1 1SDA06 series is a 3-pole, fixed mounting circuit breaker designed for industrial and commercial electrical protection. It operates at a rated voltage of 690V AC and supports a current rating of 100A with a high breaking capacity of 150 kA. This breaker features a solid state release in AC Ekip I technology ensuring high tripping accuracy and operational reliability.

This breaker has a compact design with dimensions of 160 mm height, 105 mm width, and 82.5 mm depth, making it suitable for installations with space constraints. The fixed terminals ensure firm connections suitable for heavy-duty electrical circuits. It includes a lever-type reset actuator that allows quick reset after a trip event.

The product complies with international standards CE, IEC, and RoHS, offering assured quality, safety, and environmental compliance. As a Better World product, it emphasizes sustainability through designs intended for easy disassembly and recycling.

Ideal for use in electrical distribution panels, industrial machinery protection, HVAC systems, and manufacturing facilities, this Molded Case Circuit Breaker provides dependable protection against overloads and short circuits. The short circuit performance level is rated L, enabling it to withstand high fault currents efficiently.

Fixed mounting type for secure and stable installation. Rated AC voltage 690V ensuring compatibility with heavy industrial voltage systems. Solid state tripping mechanism for precise and reliable circuit interruption. Three poles and 100A current rating suitable for three-phase electrical circuits.

Compact form factor with dimensions of 160 mm height, 105 mm width, and 82.5 mm depth. Compliant with CE, IEC, and RoHS standards. Lever type reset actuator for ease of use. Better World product supporting environmental sustainability.

Short circuit performance level L for high fault tolerance.
