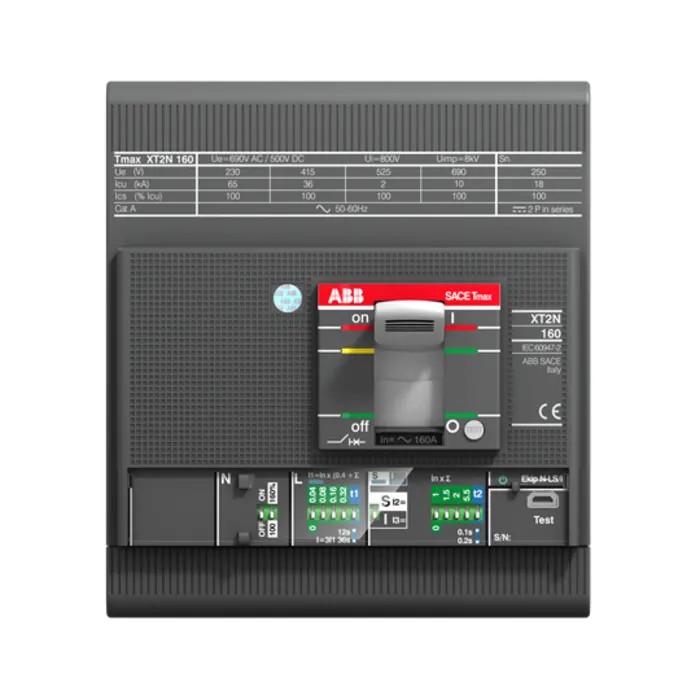

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 10A Fixed 690V AC Breaking Capacity 1SDA068016R1 XT2V 160 Ekip LSI 10A FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 130mm |
| Model | 1SDA068016R1 XT2V 160 Ekip LSI 10A FF |
| Depth | 82.5mm |
| Width | 120mm |
| Mount Type | Fixed |
| Current Rating | 10A |
| Series | 1SDA06 |
| Terminal type | Fixed |
| Breaking Capacity | 200kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC, RoHS, CE |
| Rated AC Voltage | 690V ac |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Solid State |
| Reset Actuator Type | Lever |
| Rated current (In) | 10 A In |
| Rated frequency (f) | 50/60 Hz |
| Rated voltage (Ur) | 690 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
Key Features
- Features a solid state tripping mechanism for precise circuit control.
- Equipped with front fixed terminals for secure mounting.
- Rated uninterrupted current of 160A for stable performance.
- Compact dimensions of 130mm height, 120mm width, and 82.5mm depth.
- Compliance with IEC, RoHS, and CE standards ensures quality and safety.
- Constructed in Italy with design considerations for disassembly and sustainability.
- Reset actuator type is lever for easy manual operation.
- Supports frequency of 50/60 Hz for versatile applicability.
Product Description
ABB 1SDA068016R1 XT2V 160 Ekip LSI 10A FF Molded Case Circuit Breaker is a 4-pole fixed circuit breaker designed to provide high-performance electrical protection. Rated for 10A current with a breaking capacity of 200kA, this robust device operates up to 690V AC and features a solid state tripping mechanism, optimizing responsiveness and reliability.
The breaker is designed with front fixed terminals for secure and stable connections and includes a lever-type reset actuator facilitating manual resetting after fault clearance. Its compact dimensions (130mm height, 120mm width, and 82.5mm depth) enable easy integration into electrical panels and industrial control systems.
This model conforms to IEC, RoHS, and CE standards, reflecting compliance with international quality and safety regulations. Manufactured in Italy, it incorporates sustainability features such as design for disassembly, aligning with environmental commitments.
Suitable for a wide range of industrial, manufacturing, and electrical installation applications, this circuit breaker ensures protection against overloads and short circuits, enhancing equipment safety and operational continuity.
Solid state tripping mechanism enhances circuit precision and reliability. Front fixed terminal mounting ensures secure electrical connections. Rated uninterrupted current of 160A supports stable load management. Compact size facilitates mounting in confined electrical enclosures.
Meets IEC, RoHS, and CE standards guaranteeing safety and performance. Lever reset actuator enables straightforward manual operation. Designed for disassembly promoting sustainability and ease of maintenance. Operates with 50/60 Hz frequency for versatile industrial use.
Explore more Molded Case Circuit Breakers and ABB electrical protection solutions at EnvMart to meet your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this molded case circuit breaker is 200kA, allowing it to effectively interrupt high fault currents.
This model has compact dimensions of 130mm in height, 120mm in width, and 82.5mm in depth, facilitating easy integration into electrical panels.
The rated current for this circuit breaker is 10A, making it suitable for specific load management applications.
It operates at a rated voltage of 690V AC, allowing it to be used in various industrial applications.
This circuit breaker features a solid state tripping mechanism, which enhances its responsiveness and reliability in circuit protection.
It complies with IEC, RoHS, and CE standards, ensuring it meets international quality and safety regulations.
It is designed with front fixed terminals for secure and stable mounting in electrical systems.
The reset actuator type is lever, allowing for straightforward manual operation after a fault clearance.
This circuit breaker supports a frequency range of 50/60 Hz, making it versatile for different industrial applications.
This model is manufactured in Italy, reflecting a commitment to quality and design considerations for sustainability.
This circuit breaker is a 4-pole device, suitable for various electrical protection applications.
The rated impulse withstand voltage for this model is 8 kV, providing additional protection against voltage spikes.
