Fibox ABS Grey Grey Lid Enclosure IP67 IP66 IK07 Impact Resistant 65 mm x 160 mm x 80 mm AB 081607 ENCLOSURE

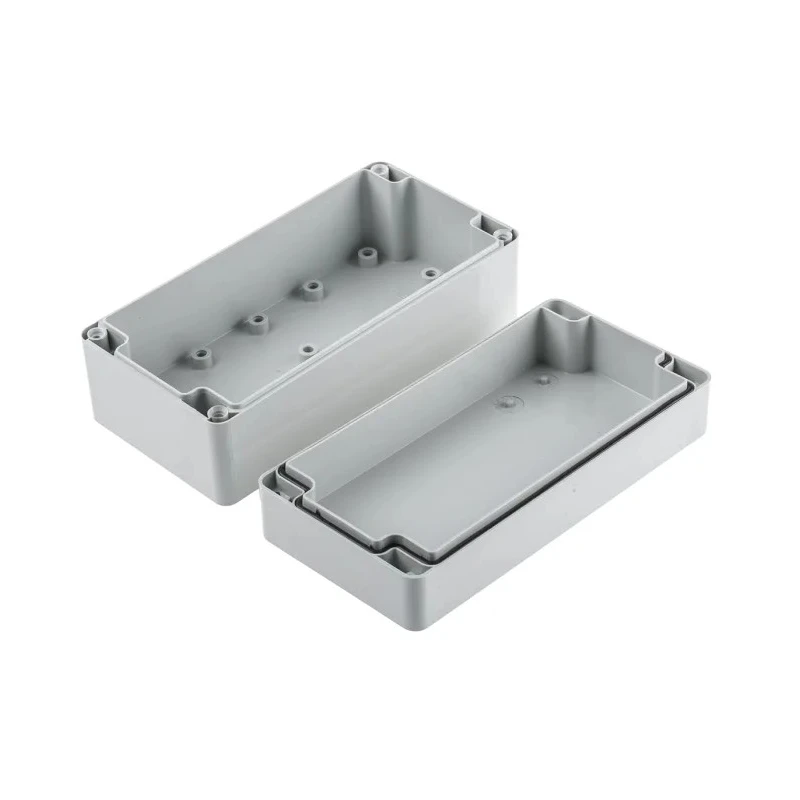

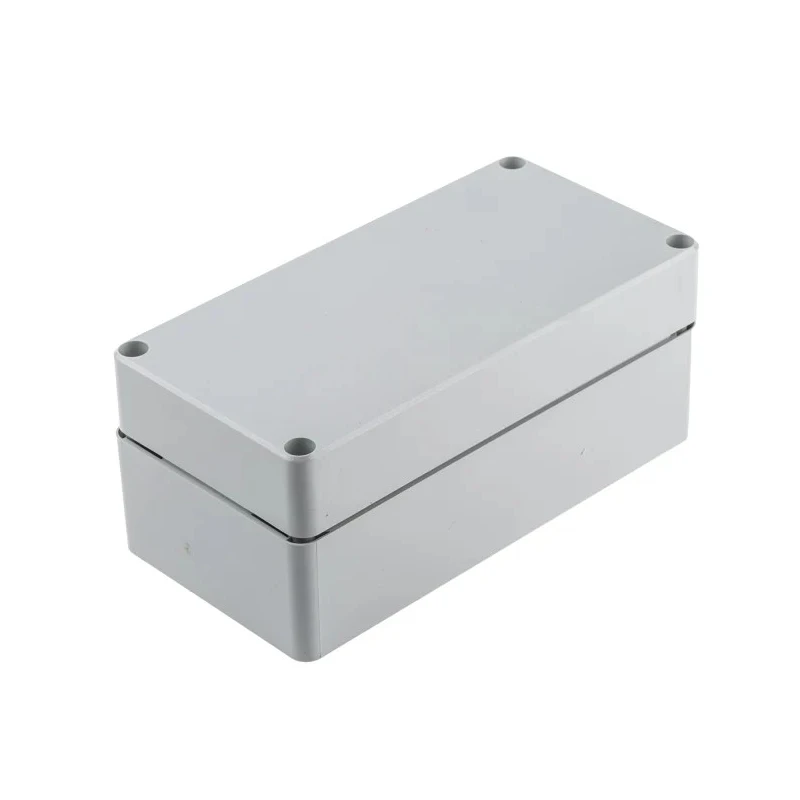

Fibox AB 081607 ENCLOSURE is a robust ABS electrical enclosure with grey-colored body and lid, designed for protecting electrical and electronic components in demanding industrial environments. It features internationally recognized ratings including IP67 and IP66 for ingress protection, and IK07 for impact resistance, ensuring reliable operation under harsh conditions.

Manufactured using advanced injection moulding, this enclosure includes a polyurethane gasket and stainless steel cover screws to maintain durable sealing and mechanical stability. It offers compatibility with mounting plates and DIN rails, enabling versatile installation options.

The enclosure body measures 65 mm in height, 80 mm in width, and 160 mm in length, making it suitable for a variety of electrical configurations. Its temperature tolerance ranges from -40 °C to +80 °C for short-term exposure, and continuous operation up to +60 °C, meeting application needs across different environments.

It complies with key standards such as EN 62262 for impact resistance, IEC 695-2-1 glow wire test, and UL 94 HB for flammability, ensuring safety and performance. The product is unshielded and halogen-free, supporting environmentally responsible applications.

Ideal for industrial, automation, and electrical infrastructure use, this enclosure provides reliable protection for sensitive electrical components against dust, water, and mechanical impacts.

Constructed from durable ABS body material for electrical component housing. External dimensions measure 65 mm height, 80 mm width, and 160 mm length. Lid and body are grey colored, providing uniform aesthetic and functionality.

Includes a mounting plate and polyurethane gasket for secure installation and sealing. Certified to standards including EN 62262 impact resistance and UL 94 HB flammability rating. Suitable for housing electrical and electronic components in demanding environments.

Features IP66/IP67 ingress protection rating compliant with EN 60529 standards. Temperature range supports -40 °C to +80 °C short term and -40 °C to +60 °C continuous operation. Enclosure is unshielded, halogen free, and passes glow wire testing.
