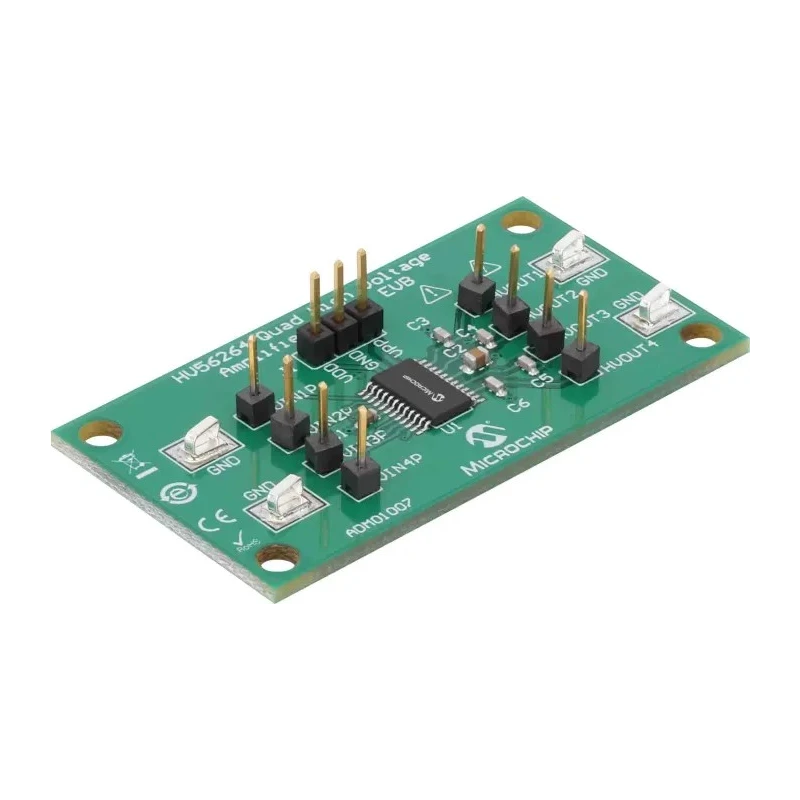

Microchip HV56264 Quad High Voltage Amplifier Array Development Board
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | HV56264 |
| For Use With | Power Supply |
| Standards/Approvals | ISO |
| Kit Classification | Development Board |
| Featured Device | HV56264 |
| Kit Name | HV56264 Quad High Voltage Amp Array EVB |
Key Features
- The development board facilitates functional evaluation of the HV56264 high voltage amplifier.
- Features four independent high voltage amplifiers suitable for automotive and industrial applications.
- Supports a 225V output swing with an absolute maximum rating of 250V.
- Typical output slew rate is 9.0V per microsecond for rapid response.
- Gain is configurable via external resistors for adaptable amplification levels.
- Rated for AEQ Grade 1 operation up to 125°C with robust ESD protection.
- Consists of very low operating current for energy-efficient performance.
- Ideal for power, motor, and robotics development toolkits.
Product Description
Microchip HV56264 model ADM01007 quad high voltage amplifier array development board is engineered for advanced power supply evaluation. This board provides customers with practical means to explore the capabilities of the HV56264, an automotive adaptation of the industrial HV264 amplifier array.
The development board features four independent high voltage amplifiers, each capable of a 225V output swing and rated for an absolute maximum voltage of 250V. It offers a typical output slew rate of 9.0V per microsecond, enabling high-speed signal handling and precise control.
Gain on each amplifier channel is externally settable with resistors, allowing flexible system tuning. The device is certified to AEQ Grade 1 operational standards at temperatures up to 125°C and includes strong ESD protection for durability in demanding environments.
Operational efficiency is prioritized by very low current consumption, making it suitable for embedded systems and automotive applications requiring high voltage amplification with minimal power draw. Compliance with ISO standards ensures manufacturing quality and performance consistency.
This development board is a valuable tool for engineers working in power supply design, motor control, and robotics development, providing a reliable platform for evaluation and testing tasks.
The board includes four channels of high voltage amplification with configurable gain settings. It supports automotive-grade reliability requirements with extended temperature and ESD rating. Designed to ease integration with power supply systems for testing and development.
Offers strong adherence to ISO standards for robust industrial use. Enables precise high voltage signal amplification in various embedded systems applications. Discover more products in Development Tools & Single Board Computers category at EnvMart for comprehensive engineering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a 225V output swing with an absolute maximum rating of 250V.
The typical output slew rate is 9.0V per microsecond, allowing for rapid response in signal handling.
It is rated for AEQ Grade 1 operation up to 125°C.
It is suitable for automotive and industrial applications, particularly in power supply design, motor control, and robotics development.
It complies with ISO standards, ensuring manufacturing quality and performance consistency.
The country of origin is India.
The kit classification is a Development Board.
It features the HV56264 high voltage amplifier array.
It consists of very low operating current for energy-efficient performance.
Yes, it includes robust ESD protection for durability in demanding environments.
It is designed to facilitate functional evaluation of the HV56264 high voltage amplifier.
