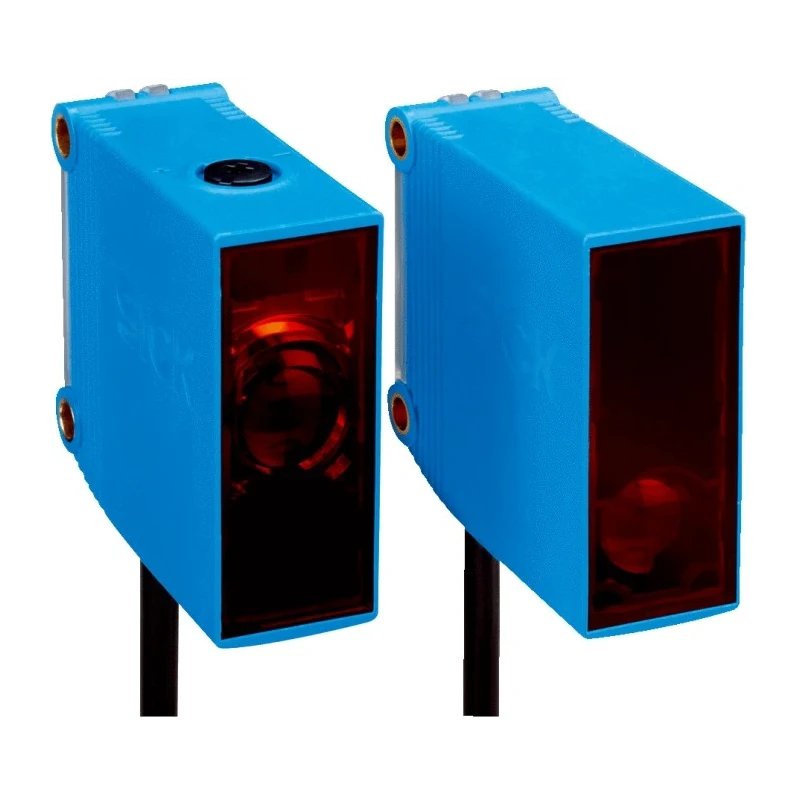

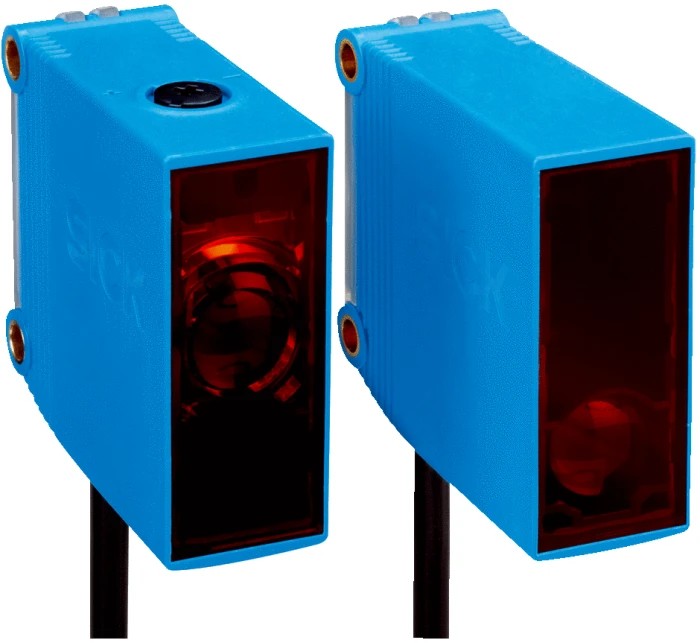

SICK Through Beam Photoelectric Sensor Block Sensor 0 to 40 m Detection Range Relay Output IP67 GSE10-R3812

SICK GSE10-R3812 Through Beam Photoelectric Sensor Block Sensor style features a robust design with a detection range of 0 to 40 meters, operating with relay output and IP67 ingress protection. It uses polarised red light to achieve accurate sensing in demanding industrial environments.

This sensor supports a wide operating voltage range from 10 to 30 VDC or 24 to 240 VAC/VDC, accommodating versatile power inputs. It includes a 5-pin connector terminal and a durable plastic housing, making it suitable for panel mounting in space-constrained locations.

The GSE10-R3812 sensor offers rapid response time of 0.01 seconds and is rated for maximum AC and DC voltages of 240 V, with a maximum current of 3 amps. Designed to withstand temperature extremes from -30°C to 60°C, it ensures reliable operation across varied environmental conditions.

Certified to EN 60947-5-2, EN 61000-6-3, and UL325 standards, this sensor meets rigorous quality and safety requirements. The patented Q-Lock assembly system allows efficient installation, significantly reducing commissioning times in industrial settings.

Its wide range of accessories, including assembly aids, connecting cables, and reflectors, simplify sensor integration for machine builders, logistics, automotive sectors, automated car parks, doors and gates, and distribution systems. This sensor is suitable for applications like pallet detection, loop control, tire detection on conveyor lines, positioning small load carriers, presence detection on induction lines, and height control of load-carrying units.

The G10 product family, which includes this model, is known for optimal detection performance in compact housings, ideal for industrial and commercial automation tasks requiring high reliability amidst optical interference or mechanical stress.

Equipped with polarised red light for precise detection. Features a 5-pin connector terminal for easy wiring. Operates in a wide temperature range from -30°C to 60°C. Supports maximum AC and DC voltages up to 240 V. Quick response time of 0.01 seconds for high-speed applications.

Durable plastic housing with panel mount type. Complies with EN 60947-5-2, EN 61000-6-3, and UL325 standards. Includes the patented Q-Lock assembly system for fast installation. Wide range of accessories simplifies sensor integration.

Applicable in logistics, machine building, automotive, and automated systems. Explore more high-quality sensors and automation products suitable for various industrial applications at EnvMart.
