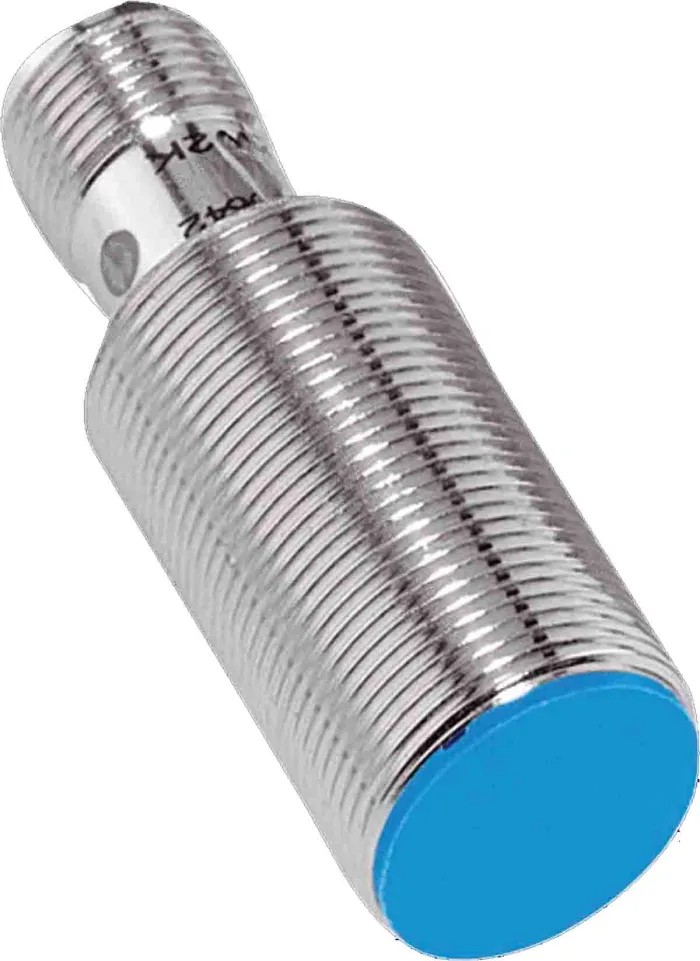

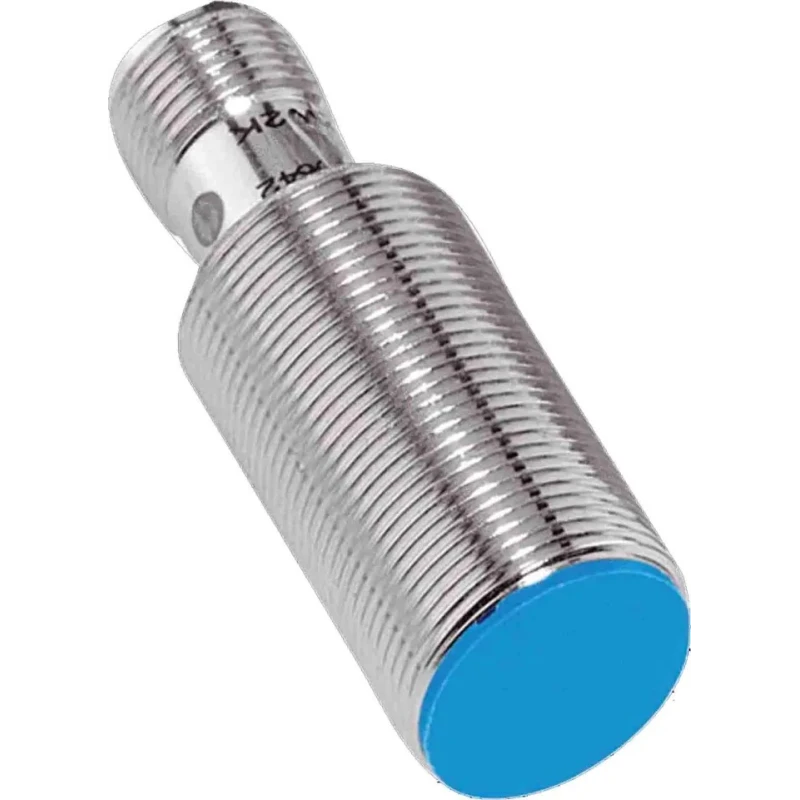

SICK Inductive Proximity Sensor Threaded Barrel M18 x 1, PNP Output, 30V DC, 5 mm Detection IME18-05BPPZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 50mm |
| Model | IME18-05BPPZC0K |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME18-05BPPZC0K |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 5mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Equipped with a durable metal housing and threaded barrel M18 x 1 dimensions.
- Flush mount type with IP67 rating ensures excellent protection against dust and water ingress.
- PNP output type with 4-pin terminal for versatile electrical configurations.
- Operates reliably in temperature range from -25°C to 75°C.
- Maximum switching frequency of 1 kHz supports rapid detection cycles.
- Highly shielded design reduces electromagnetic interference for precise sensing.
- Suitable for industrial automation applications including presence detection and positioning.
- Manufactured in Hungary with compliance to EN 60529 and EN 60947-5-2 standards.
Product Description
The SICK IME18-05BPPZC0K is a high-performance inductive proximity sensor featuring a threaded barrel design with M18 x 1 dimensions and a metal housing. This sensor operates at a maximum supply voltage of 30V DC and provides a reliable PNP output with a 4-pin terminal connection. Its robust IP67 enclosure rating ensures protection against dust and water, making it suitable for demanding industrial environments.
Designed to detect metal objects up to a distance of 5 mm, this sensor offers precision and repeatability facilitated by an integrated ASIC chip. The temperature operating range from -25°C to 75°C expands its usability in various thermal conditions encountered in automation and manufacturing sectors.
This sensor is shielded to prevent interference and supports a maximum switching frequency of 1 kHz, enabling it to handle rapid sensing tasks with accuracy. The IME series from SICK is known for high machine availability and cost efficiency, making the IME18-05BPPZC0K an optimal choice for presence detection, position monitoring, and end position detection in industrial automation.
Typical applications include car body part detection, positioning dashboard components, monitoring dancer positions in film tension controls, and detecting metal parts in automated assembly lines. Manufactured in Hungary, it meets relevant international standards EN 60529 and EN 60947-5-2 for quality and safety.
Durable metal housing ensures long sensor life. Flush mount with threaded barrel facilitates easy installation. Wide operating temperature range suitable for varied environments. High switching frequency supports fast automation cycles.
Shielded design improves accuracy in electrically noisy environments. Versatile electrical configuration with 4-pin PNP output. Certified to international standards ensuring reliability.
For users seeking dependable Inductive Proximity Sensors with precise metal detection capabilities, the SICK IME18-05BPPZC0K offers an industry-leading solution ideal for manufacturing, automation, and control applications. Browse additional options and complementary automation components in the Sensors and Proximity Sensors categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of the SICK IME18-05BPPZC0K is 5 mm for metal objects.
This sensor operates within a temperature range of -25°C to 75°C.
It provides a PNP output type, suitable for various electrical configurations.
The SICK IME18-05BPPZC0K has an IP67 rating, ensuring protection against dust and water ingress.
The maximum switching frequency of this sensor is 1 kHz, allowing for rapid detection cycles.
The threaded barrel has a diameter of 18 mm and a length of 50 mm.
It is designed for flush mounting, which facilitates easy installation in various applications.
This model is specifically designed to detect metal objects.
It features a 4-pin terminal for versatile electrical configurations.
The IME18-05BPPZC0K complies with EN 60529 and EN 60947-5-2 standards.
This sensor is manufactured in Hungary.
The maximum supply voltage for the SICK IME18-05BPPZC0K is 30V DC.
