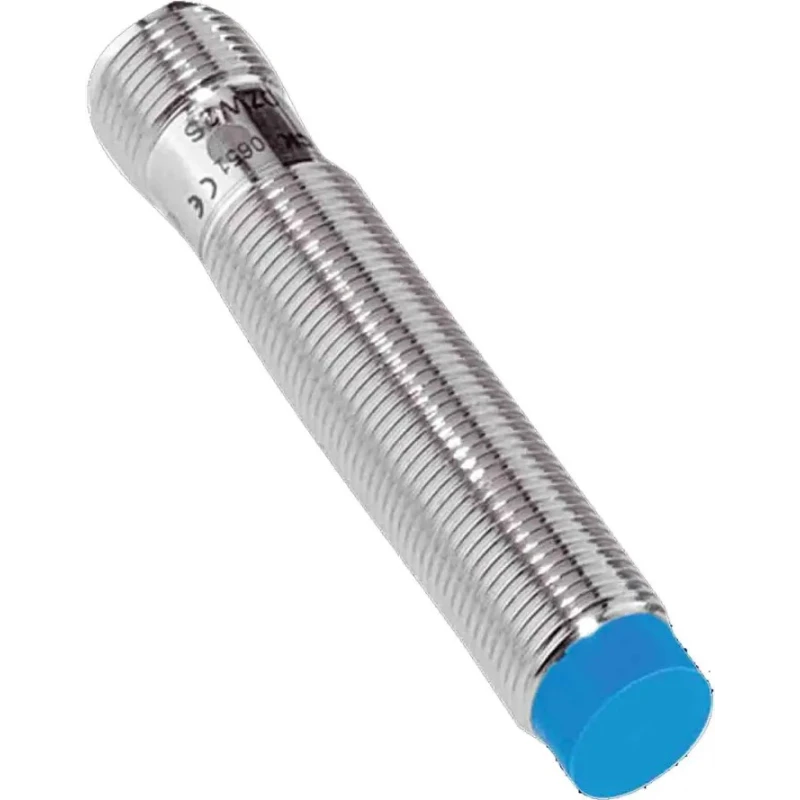

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 NPN 30 V DC 200mA IME12-10NNSZC0S

SICK IME12-10NNSZC0S is a high-precision Threaded Barrel Inductive Proximity Sensor designed for reliable metal object detection in demanding industrial environments. With an M12 x 1 threaded barrel and metal housing, it provides ruggedness and excellent protection rated at IP67, making it suitable for harsh and dusty conditions.

The sensor operates at a maximum supply voltage of 30 V DC and delivers a switching current up to 200 mA. Its NPN output type allows straightforward integration into automation control systems.

This model features a 10 mm maximum detection range, enabling effective presence detection and position monitoring tasks in automotive manufacturing, packaging, and material handling applications. The non-flush mounting and 4-pin terminal simplify installation and wiring configurations.

Temperature tolerance from -25 °C to +75 °C broadens its applicability across various industrial settings including hydraulic and pneumatic equipment, conveyor systems, and automated machinery. The sensor operates at switching frequencies up to 400 Hz, supporting rapid response requirements.

Designed with unshielded sensing for selective metal object measurement, this product is part of the IME12 series, which offers multiple sizes ranging from M8 to M30 and extended sensing ranges from 1.5 mm to 38 mm. Its nickel-plated brass housing and plastic sensing face enhance durability and overall sensor longevity.

Typical uses include presence detection of car body parts, positioning of tooling and carriers, automated part handling, and position monitoring in elevators or door systems. The encapsulated ASIC technology assures high switching accuracy and long-term stability even under vibration and shock.

Features a metal housing with IP67 protection for reliable industrial use. Operates within a voltage range up to 30 V DC with a switching current of 200 mA. NPN output type ensures compatibility with various control systems.

Supports a switching frequency up to 400 Hz for high-speed detection applications. Wide operating temperature range from -25 °C to +75 °C for versatile environments. Non-flush mount with 4-pin terminal for easy installation and wiring.

Unshielded sensor design for specific target detection accuracy. Length of 65 mm and width of 12 mm provides compact form factor. Extended sensing capabilities spanning 1.5 mm to 38 mm available across the IME12 series. Manufactured in Hungary ensuring quality compliance with EN 60529 and EN 60947-5-2 standards.

This Inductive Proximity Sensor supports diverse industrial applications including automotive assembly lines, materials handling, packaging machinery, and automated systems in manufacturing plants. It delivers dependable, maintenance-free performance, contributing to high machine availability and reduced downtime.
