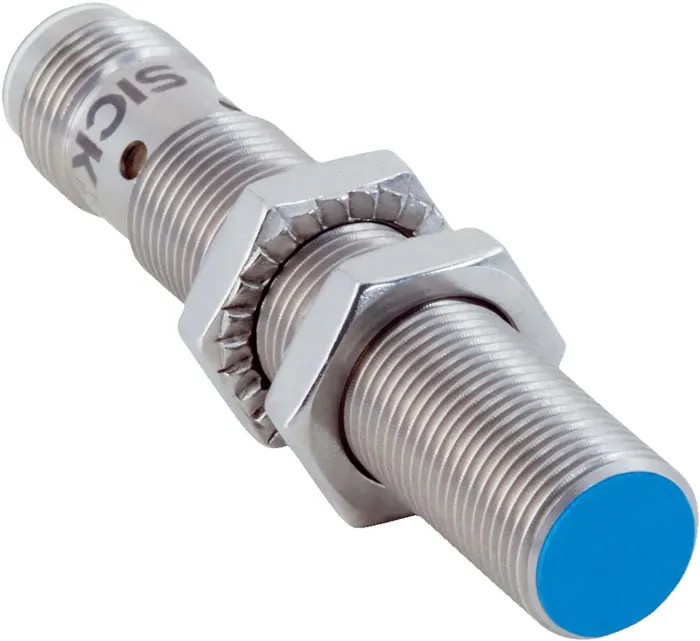

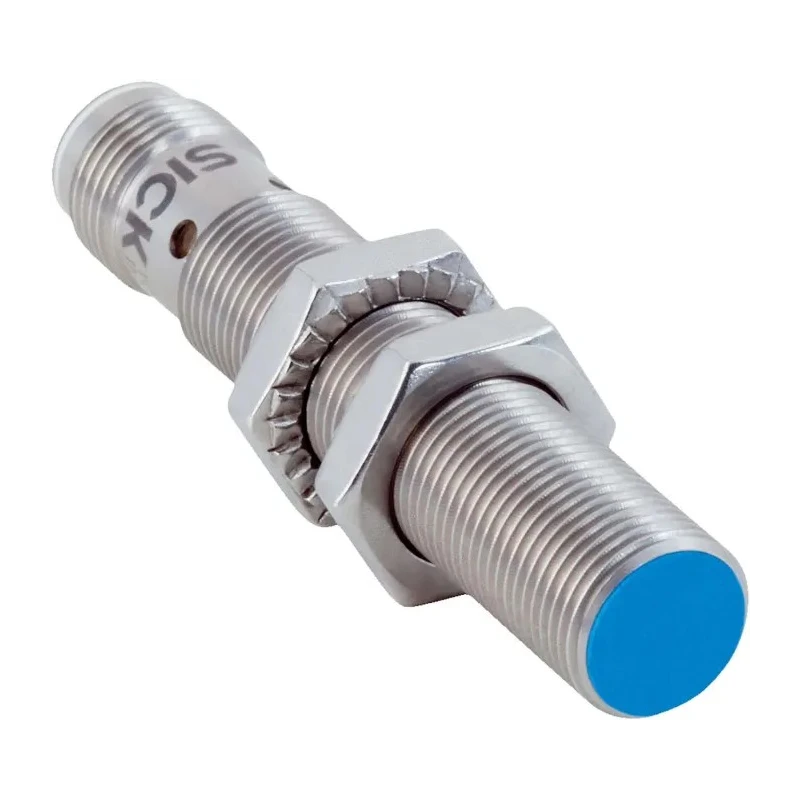

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 30 V dc 200mA NPN Output IMB12-04BNSVC0S

The SICK IMB12-04BNSVC0S is a high-performance threaded barrel Inductive Proximity Sensor designed for industrial automation and control applications. Featuring an M12 x 1 threaded barrel body style and stainless steel housing, this sensor combines robustness with precision sensing capabilities. It operates at a maximum supply voltage of 30 V dc and provides an NPN output configured for 4-pin terminal connectivity, ensuring seamless integration within automation systems.

This sensor offers an effective sensing range of 4 mm, optimized for detecting plastic materials, making it ideal for use in manufacturing lines, material transport monitoring, and position detection tasks such as valve piston openings and elevator door leaf detection. The device is constructed to withstand harsh conditions, featuring IP68 and IP69K ingress protection ratings which safeguard against dust ingress and high-pressure water jets. It operates reliably over a broad temperature range from -40°C to 100°C, supporting diverse environmental conditions.

With a maximum switching frequency of 2 kHz, the IMB12-04BNSVC0S delivers fast response times for high-speed automation processes. The flush mounting capability ensures stable installation, while the optical adjustment indicator and self-locking nuts facilitate quick and error-free setup. Thanks to its rugged stainless steel body and protection against oils and cooling lubricants, the sensor maintains longevity and ensures reduced machine downtime.

Intended applications include speed measurement, material transportation monitoring, position determination in automated doors and gates, and elevator shaft zone detection among others. The sensor also supports IO-Link communication for enhanced flexibility and integration within complex automation networks. Manufactured to stringent standards including ISO 20653:2013-03, EN 60947-5-2, and EN 60529, this sensor upholds quality and safety requirements.

Equipped with NPN output for compatibility with various automation systems. Threaded barrel body style with M12 x 1 thread size for secure mounting. Constructed from stainless steel housing ensuring durability in harsh environments.

IP68 and IP69K rated for outstanding protection against dust and water. Wide operating temperature range from -40°C to 100°C supporting diverse applications. Maximum switching frequency of 2 kHz enables fast and precise detection.

Flush mount type with 4-pin terminal connection for easy wiring. Designed to detect plastic materials effectively within 4 mm sensing distance. Suitable for industrial automation including speed measurement and position detection.

Manufactured in Hungary assuring high quality standards. Explore a wide range of industrial sensors and automation solutions at EnvMart to enhance your process control and reliability.
