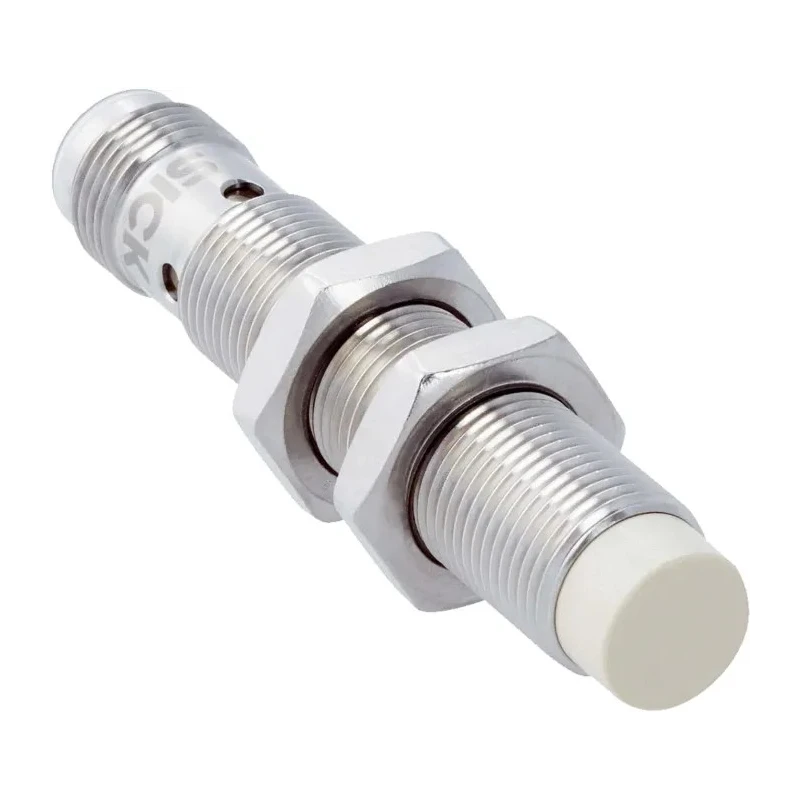

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30 V dc 200mA IMF12-08NPSNC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 40 °C to +100 °C |
| Length | 65mm |
| Model | IMF12-08NPSNC0S |
| IP Rating | IP68, IP69K |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IMF12 |
| Maximum Operating Temperature | 100°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
| Extended sensing ranges | 2 mm to 20 mm |
| Electrical configuration | DC 3-/4-wire |
| Standards/ApprovalsAccording to EN 60529, EN 60947-5-2, ISO 20653 | 2013-03 |
Key Features
- Features a durable stainless steel threaded barrel housing with M12 x 1 thread size.
- Rated for IP68 and IP69K ingress protection for industrial cleaning resistance.
- Operates with PNP output type and supports a switching current of 200mA.
- Wide operating temperature range from -40°C to +100°C suitable for harsh environments.
- Supports extended sensing ranges from 2mm to 20mm with high accuracy enabled by SICK ASIC technology.
- Equipped with 4-pin terminal type and non-flush mount type for flexible installation.
- Maximum supply voltage of 30V DC with a switching frequency up to 2 kHz.
- Optical adjustment indicator for quick and error-free setup.
Product Description
The SICK IMF12-08NPSNC0S is a high-performance threaded barrel inductive proximity sensor designed for robust industrial applications requiring reliable metal object detection. Featuring a compact M12 x 1 stainless steel housing with 65mm length and 12mm width, this sensor ensures durability and resistance to harsh conditions including IP68 and IP69K ingress protection levels. It operates on a DC 3-/4-wire electrical configuration with a PNP output and supports a maximum supply voltage of 30V DC and a switching current of 200mA.
This sensor's sensing range extends up to 8mm, with a series capability supporting from 2mm to 20mm detection ranges, providing enhanced precision and stability through advanced SICK ASIC technology. The minimum and maximum operating temperatures range from -40°C to +100°C, making it suitable for extreme environments including food industry applications due to its food-compatible stainless steel housing and plastic sensing face.
The device includes an optical adjustment indicator to facilitate quick installation and reduce setup errors, while being IO-Link ready to allow advanced communication and integration in automated systems. Its design complies with EN 60529, EN 60947-5-2, and ISO 20653:2013-03 standards, underscoring its reliability and quality assurance.
Durable stainless steel and plastic construction for industrial resilience. High ingress protection (IP68, IP69K) suitable for water and dust exposure. Non-flush mount type and 4-pin terminal for versatile installation options.
Extended sensing ranges provide precise metal detection capabilities. Suitable for food processing industry with certified resistant materials. Optical adjustment indicator reduces commissioning time. Supports high switching frequency (2kHz) for rapid response.
Communication options include IO-Link for flexible automation integration. Temperature tolerance ensures operation in demanding environments. Compliant with international industrial standards for safety and performance.
This Inductive Proximity Sensor is ideal for industrial automation tasks such as valve position determination, coupling bend position queries, and applications demanding high reliability under frequent cleaning cycles. Its modularity and extensive product portfolio allow easy selection and quick deployment of variants to meet customer-specific needs.
Explore the comprehensive selection of sensors in EnvMart's Electronics & Electricals category to find optimized solutions for industrial sensing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 8mm, with extended sensing capabilities from 2mm to 20mm.
It operates within a temperature range of -40°C to +100°C, making it suitable for harsh environments.
This unit features a PNP output type, suitable for various industrial applications.
The sensor has a length of 65mm and a width of 12mm, designed for compact installation.
The maximum switching frequency is 2kHz, allowing for rapid response in detection tasks.
It is rated IP68 and IP69K, providing excellent resistance to dust and water exposure.
This model is equipped with a 4-pin terminal type for electrical connections.
Yes, it features a food-compatible stainless steel housing, making it appropriate for food processing environments.
The maximum supply voltage is 30V DC, ensuring compatibility with various industrial systems.
It complies with EN 60529, EN 60947-5-2, and ISO 20653:2013-03 standards, ensuring reliability and quality assurance.
The housing is made of durable stainless steel, providing resilience in industrial settings.
This model supports a non-flush mount type, allowing for flexible installation options.
