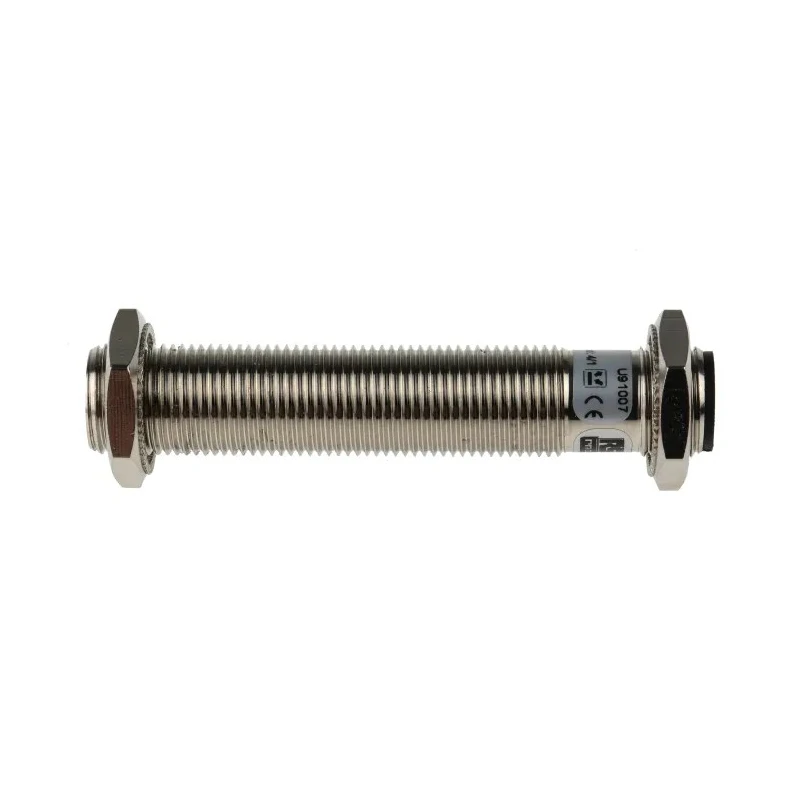

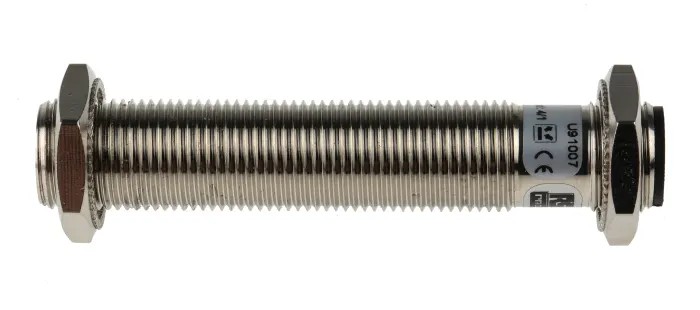

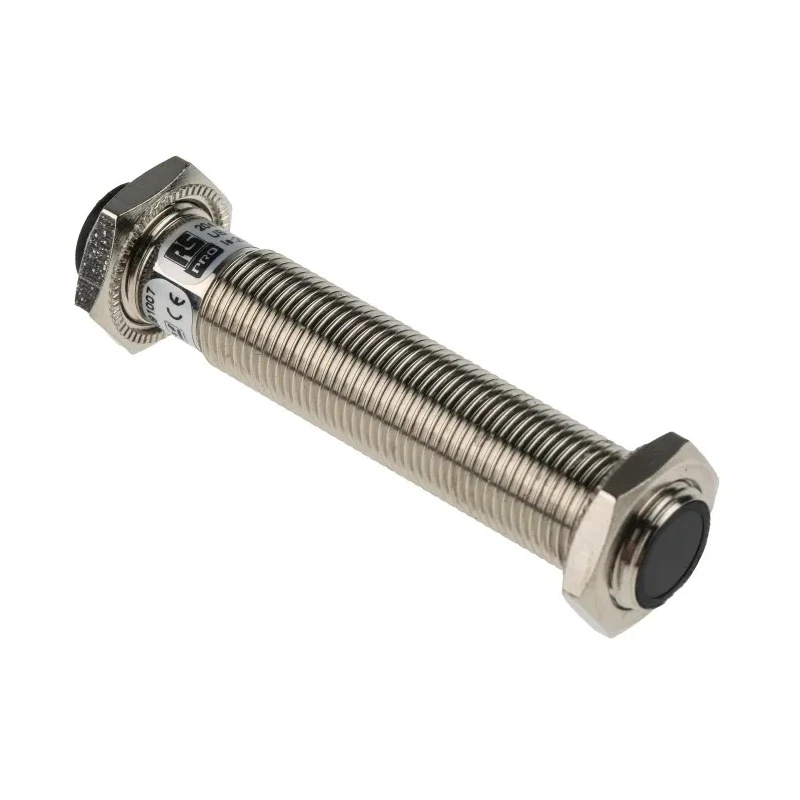

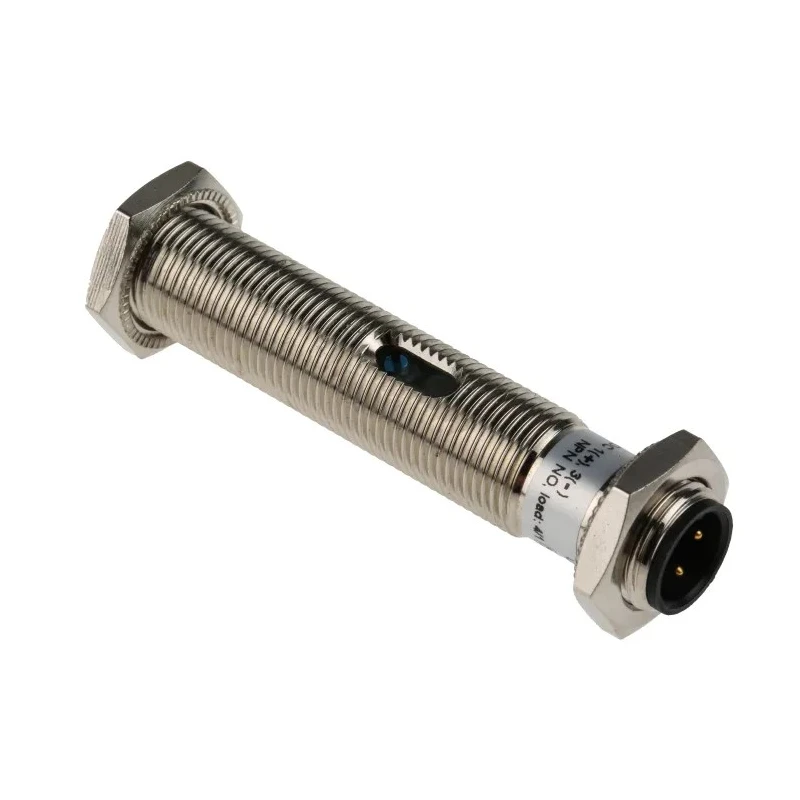

RS Pro Diffuse Reflection Photoelectric Sensor, Barrel Style, 0.15 m Detection Range, Infrared LED, NPN NO Output 204-3963
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS Pro |
| Response time | 8.2ms |
| Light Source | Infrared LED |
| Detection range | 0.15 m |
| Model | 204-3963 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Copper Nickel |
| Output type | NPN NO |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -15°C |
| Maximum Current | 200mA |
| DetectIon Type | Diffuse Reflection |
| Terminal type | M12 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Barrel |
Key Features
- Operates at a maximum DC voltage of 30V for stable performance.
- Features NPN normally open output for flexible application integration.
- Built to IP67 standards ensuring dust tight and water immersion protection.
- Detection range of 0.15 meters supports precise object sensing tasks.
- Constructed from durable copper nickel housing for long-lasting industrial use.
- Equipped with screw mount and M12 connector for secure installation.
- Operates within temperature range of -15°C to 55°C suitable for diverse environments.
- CE certified to meet essential European safety and quality standards.
Product Description
RS Pro 204-3963 diffuse reflection Photoelectric Sensor is a high-quality barrel style sensor designed to detect objects through infrared LED technology at a precise detection range of 0.15 meters. It provides non-contact sensing using a diffuse reflection principle, ideal for industrial automation, manufacturing lines, and quality control operations where accurate and reliable object detection is essential.
This sensor features a robust copper nickel housing combined with a screw mount and M12 connector terminal, allowing it to withstand harsh environments with an IP67 ingress protection rating. Capable of operating between -15°C and 55°C, it performs reliably across a wide temperature spectrum.
The output is NPN normally open type, compatible with various control systems. With a maximum DC voltage of 30V and maximum current of 200mA, it supports safe electrical limits. The sensor response time at 8.2ms ensures fast detection, enabling real-time monitoring and control in automated setups.
Certified with CE standards, the RS Pro 204-3963 is manufactured to meet strict quality and safety regulations. This sensor is an essential component for industrial and manufacturing applications that demand precise detection of object presence or absence without physical contact.
Operates on diffuse reflection principle using infrared LED light source. Barrel sensor style designed for compact installations. IP67 rated housing for dust and water resistance. NPN NO output ensures straightforward signal integration.
Suitable for automation and control gear sensor requirements.
The RS Pro range guarantees reliable sensor solutions backed by rigorous testing and quality assurance. Ideal for engineers looking for durable sensors with stable long-term performance in automation environments.
Explore the RS Pro category at EnvMart for a wide selection of trusted sensors designed to meet demanding industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 0.15 meters, allowing for precise object sensing tasks.
It features an NPN normally open output, which allows for flexible integration with various control systems.
The maximum operating voltage for this unit is 30V DC, ensuring stable performance in its applications.
This model operates within a temperature range of -15°C to 55°C, making it suitable for diverse environments.
The sensor has a response time of 8.2 milliseconds, enabling fast detection for real-time monitoring.
It is constructed from durable copper nickel, which contributes to its robustness in industrial settings.
This model features a screw mount design, allowing for secure installation in various applications.
The RS Pro 204-3963 utilizes an infrared LED as its light source for object detection.
This sensor is rated IP67, ensuring it is dust-tight and protected against water immersion.
It is equipped with an M12 connector terminal, facilitating easy electrical connections.
Yes, it is CE certified, meeting essential European safety and quality standards.
The RS Pro 204-3963 operates on a diffuse reflection principle for non-contact sensing of objects.
