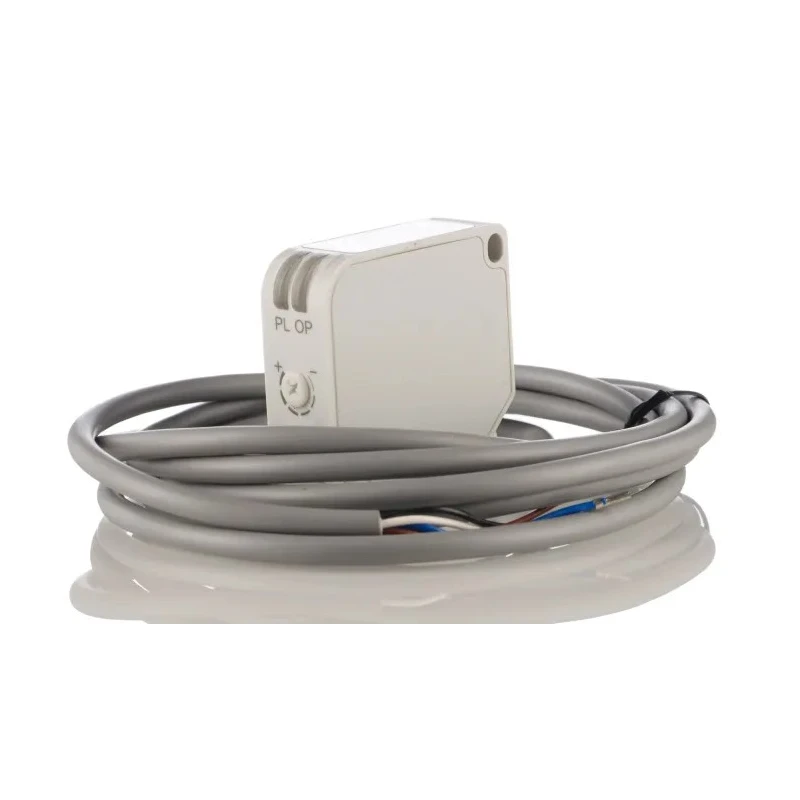

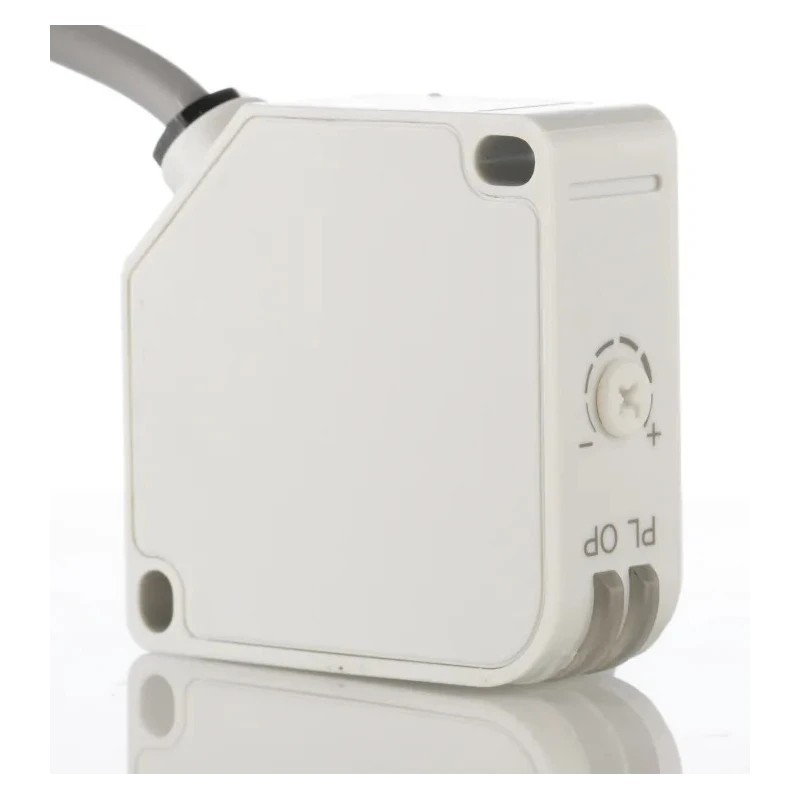

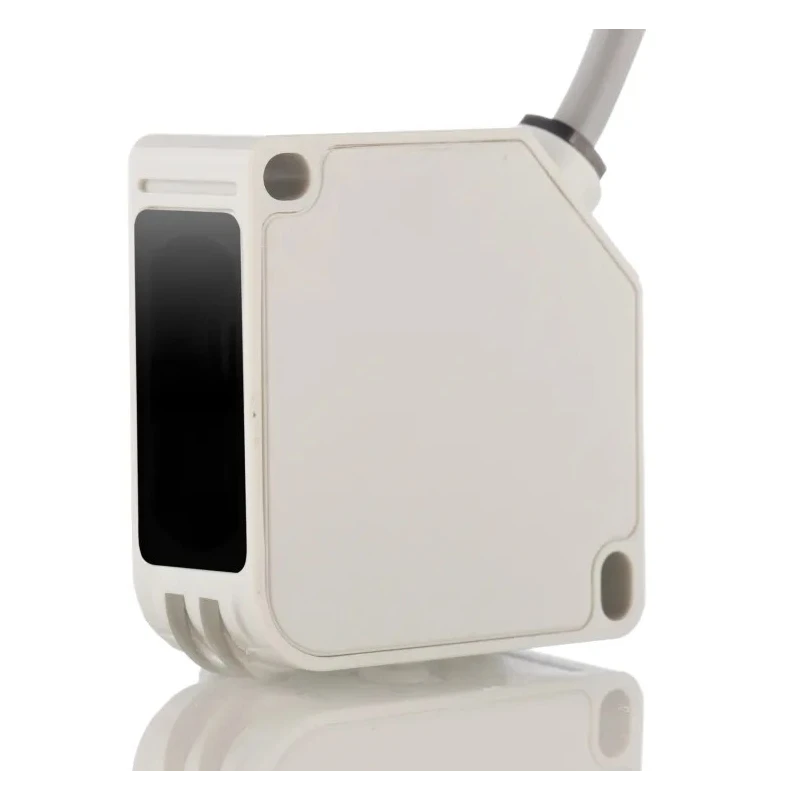

RS PRO Diffuse Reflection Photoelectric Sensor, Block Sensor, Relay Output, 0.3 m Detection Range, IP67, 240V 202-4476
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Light Source | Infrared LED |
| Detection range | 0.3 m |
| Model | 202-4476 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS/Polycarbonate |
| Output type | Relay |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| DetectIon Type | Diffuse Reflection |
| Terminal type | Cable |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CE |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Block |
| Emitter, PVC cable, RS stock no | 202-4482 |
| Receiver, PVC cable, RS stock no | 202-4483 |
Key Features
- Durable ABS/Polycarbonate housing ensures reliable operation.
- IP67 rated for protection against harsh environments.
- Operates within temperature range of -25°C to 55°C.
- Powered by 240V AC/DC with infrared LED light source.
- Designed for bracket or screw mounting for versatile installation.
- Maximum current rating of 3A supports robust relay output.
- Compact sensor style block with cable terminal connection.
- CE certified with no hazardous area certification.
Product Description
RS PRO 202-4476 diffuse reflection photoelectric sensor is a reliable block sensor with a detection range of 0.3 meters and relay output. It operates at a maximum voltage of 240V AC/DC and uses an infrared LED light source optimized for industrial, automation, and logistics applications.
This sensor is housed in durable ABS and polycarbonate material that provides excellent protection and longevity. Rated IP67, it is well-suited for harsh and demanding environmental conditions, ensuring excellent anti-interference performance and high detection accuracy.
The sensor supports operating temperatures from -25°C to 55°C and handles a maximum current of 3 A. It includes mounting options via bracket or screws for easy installation in diverse industrial setups.
RS PRO's PTE Series sensors, including this diffuse reflection model 202-4476, are widely used in industrial automation, automotive, material handling, logistics, and parking system applications. The device provides outstanding sensing capabilities without physical contact, detecting object presence via emitted infrared light reflection.
Durable ABS/Polycarbonate housing for enhanced robustness. IP67 ingress protection for operation in harsh environments. Wide operating temperature range from -25°C to 55°C. Compatible with 240V AC/DC power supply. Relay output with maximum current load of 3A.
Diffuse reflection detection type for sensing object presence. Compact block style sensor with cable connection. CE certified ensuring compliance with international safety standards.
Set contains one RS PRO 202-4476 Diffuse Reflection Photoelectric Sensor with cable terminal connection. This sensor is engineered for precise and reliable sensor detection performance where compact size and ruggedness are required.
This product is manufactured in China and delivered in new condition, fitting requirements for industrial automation, manufacturing control systems, and logistics material handling. Explore more sensors and automation components from RS PRO and other leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this photoelectric sensor is 0.3 meters.
It provides a relay output with a maximum current rating of 3A.
The sensor operates within a temperature range of -25°C to 55°C.
This model has an IP67 rating, making it suitable for harsh environments.

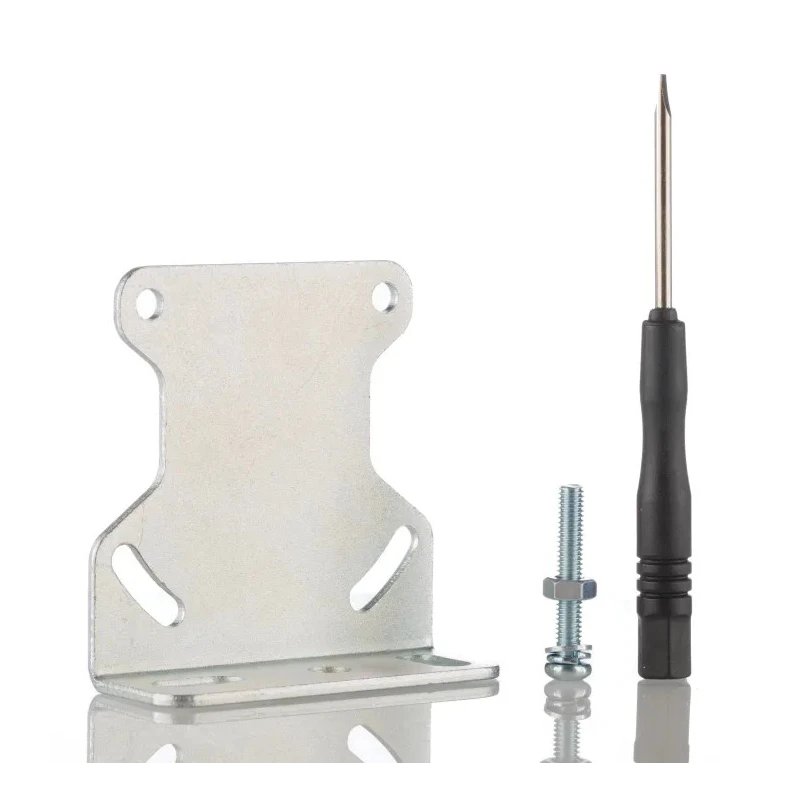

It can be mounted using either brackets or screws, providing versatile installation options.
The housing is made from durable ABS and polycarbonate materials.
It is compatible with a power supply of 240V AC/DC.
It uses an infrared LED light source for detection.
This model is designed in a compact block style with a cable terminal connection.
It is CE certified, ensuring compliance with international safety standards.
It is widely used in industrial automation, automotive, material handling, logistics, and parking system applications.
The maximum operating voltage is 240V, both AC and DC.
