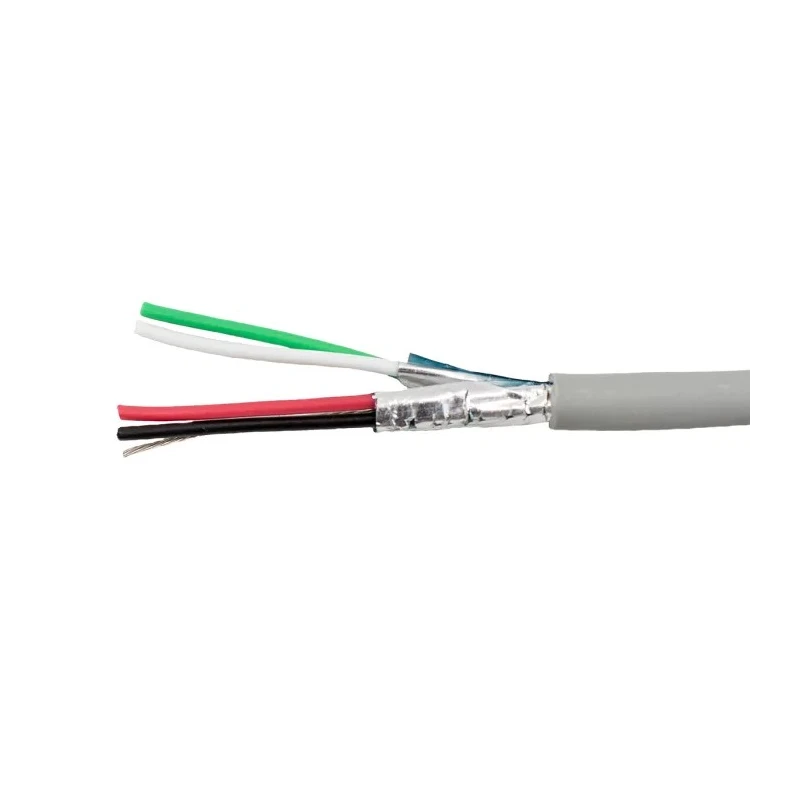

Alpha Wire Alpha Essentials Communication & Control Series Data Cable 2 Pairs 4 Cores 0.56mm² 305m Slate Sheath 6032C SL001

Alpha Wire 6032C SL001 Alpha Essentials Communication & Control Series Data Cable is a 2-pair, 4-core Data Cable engineered for reliable communication and control signal transmission in industrial and electronic systems. This cable features 0.56mm² cross-sectional tin-plated copper conductors with polypropylene insulation, twisted into pairs and wrapped with a protective slate-coloured polypropylene jacket.

The cable supports a voltage rating of 300V and a temperature range from -20°C to 75°C, making it suitable for indoor industrial applications such as machinery control, factory automation, and electrical panels. The VW-1 flame performance rating ensures enhanced circuit safety, particularly in confined spaces.

Each conductor consists of seven 28 AWG strands of tin-plated copper which improve flexibility and corrosion resistance. The cable pairs are shielded with aluminium/Mylar tape having 25% overlap and include a 22 AWG drain wire for effective noise rejection and straightforward earthed panel termination.

Its 8.76 mm outside diameter and slate-coloured jacket offer abrasion resistance and ease of routing within control cabinets and machinery. The cable meets UL, CSA, and CE approvals and is RoHS compliant, ensuring its suitability for commercial and industrial environments.

Typical applications include distributed control wiring in factory automation cabinets, linking sensors and actuators in machinery control systems, communication runs in building services and HVAC control, and wiring in electrical panels requiring shielded pairs.

Features tin-plated 7-strand copper conductors for enhanced corrosion resistance and flexibility. Rated for 300V, suitable for low-voltage control circuits. Polypropylene jacket with slate color provides abrasion resistance and simplified routing.

VW-1 flame rating ensures enhanced safety in confined spaces. Operational temperature range from -20°C to 75°C supports indoor industrial use. Characteristic impedance of 61Ω maintains consistent signal integrity. Constructed with aluminium/Mylar shield and 22 AWG drain wire for noise reduction.

Available in continuous lengths on spools of 100 ft, 500 ft, or 1000 ft. Complies with UL, CSA, CE standards and RoHS compliance. Explore more high-quality industrial and communication cables in the Electronics & Electricals category at EnvMart.
