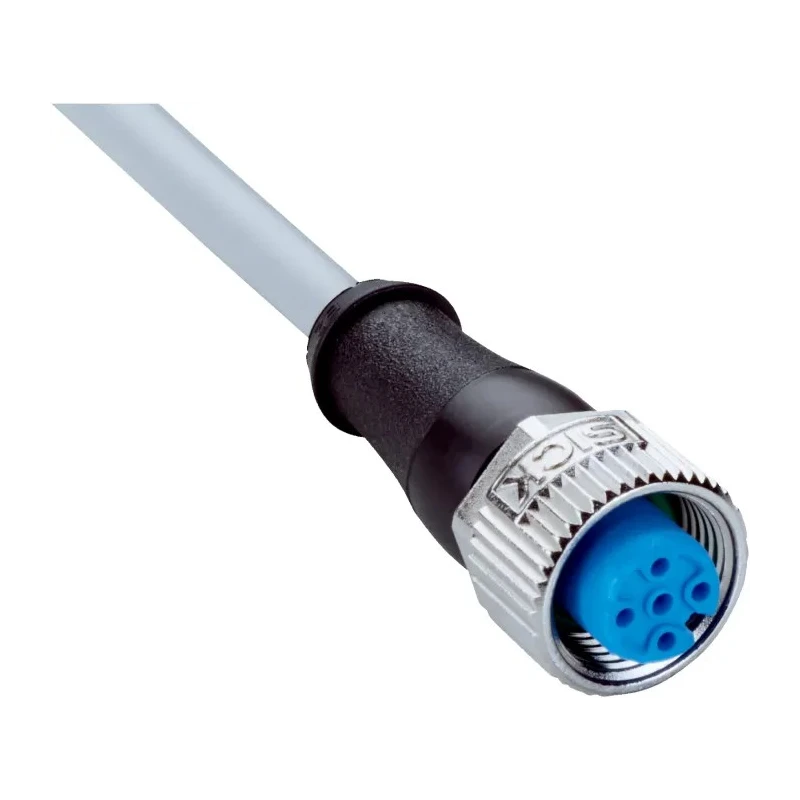

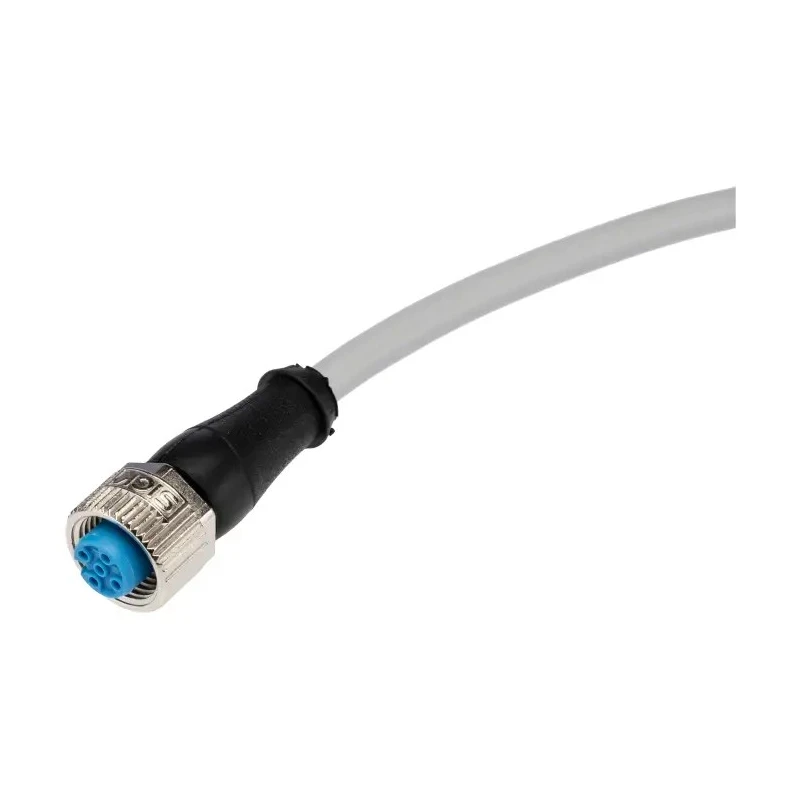

SICK Female 5 Way Straight M12 to Unterminated Sensor Actuator Cable 5 m YF2A15-050VB5XLEAX YF2A15-050VB5XLEAX / 2096240

SICK YF2A15-050VB5XLEAX / 2096240 is a female 5 way straight M12 to unterminated sensor actuator cable with a length of 5 meters. This cable is designed to provide a reliable and robust connection between M12-equipped sensors and control systems in industrial environments.

The cable features five unshielded conductors each of 0.34 mm² cross-section, housed within a chemical-resistant grey polyvinyl chloride (PVC) jacket. It supports up to 4A of continuous current and operates at a maximum reference voltage of 125 V, making it suitable for actuator circuits in various industrial applications.

With an IP65, IP66K, and IP67 rating, the cable is protected against ingress from dust and water jets, enabling usage in harsh and washdown environments. The female M12 connector end employs a screw-type locking nut with a 13 mm flats width and requires a tightening torque of 0.6 N·m to ensure a secure mechanical and electrical connection.

The cable is rated for flexible operation at temperatures down to −5 °C, while stationary installations allow use between −30 °C and +80 °C. The connector head itself can tolerate temperatures from −25 °C up to +85 °C. For optimal longevity, installers should maintain a bending radius greater than 10 times the cable diameter for moving applications and 5 times for fixed routing.

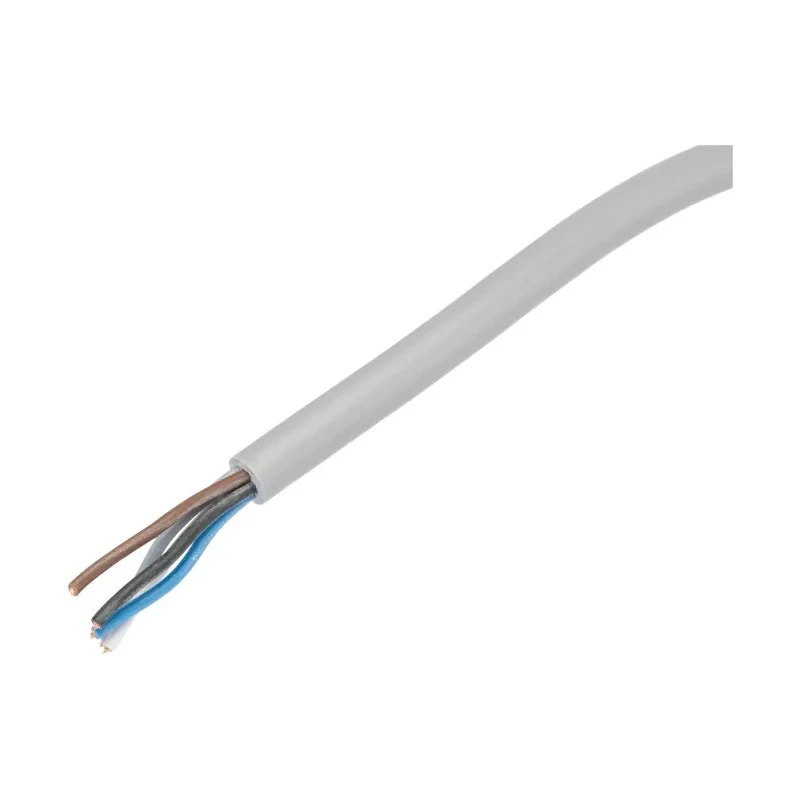

This product carries CE marking and is UL recognized under file E335179, confirming compliance with stringent industrial standards. It is ideal for proximity sensor connections to control cabinets, actuator wiring on factory lines requiring washdown capability, and sensor retrofits calling for custom lead termination with the unterminated flying leads.

Five conductors allow for connections up to 4A continuous current. PVC jacket ensures chemical resistance and mechanical protection. IP65, IP66K, and IP67 rating suitable for demanding industrial conditions. 5 meter cable length facilitates flexible layout and installation.

Female M12 connector with screw locking ensures stable connections. Operating temperature range supports both dynamic and stationary installations. Compliant with CE and UL standards for industrial use. Uses include sensor actuator wiring, factory automation, and washdown areas.
