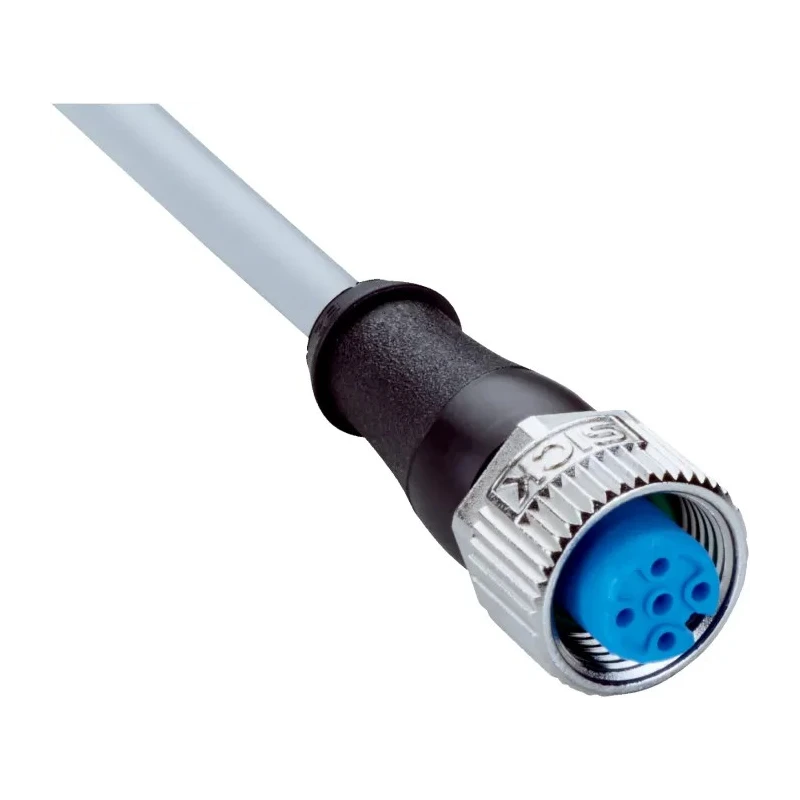

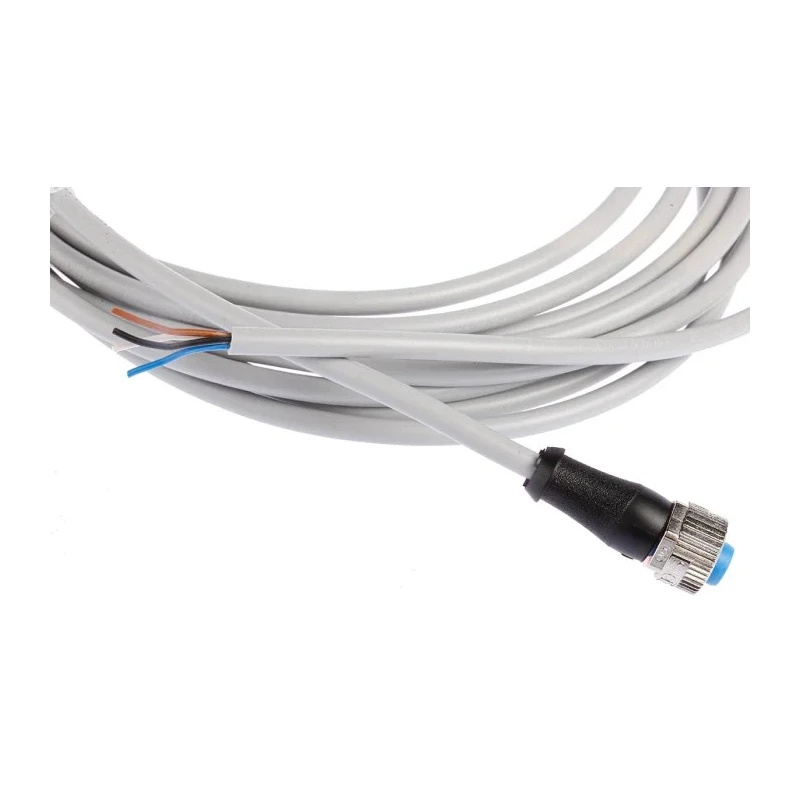

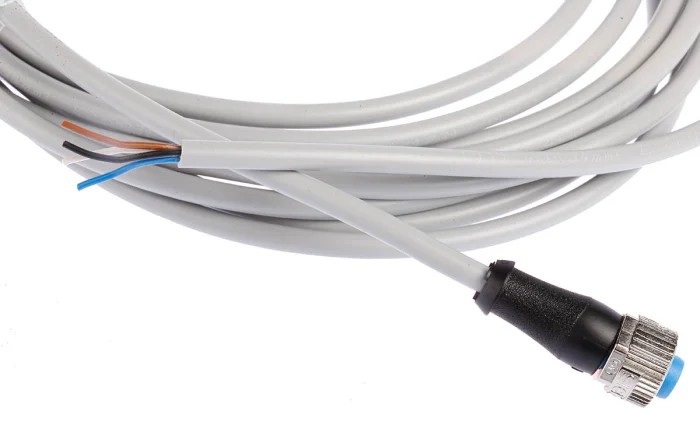

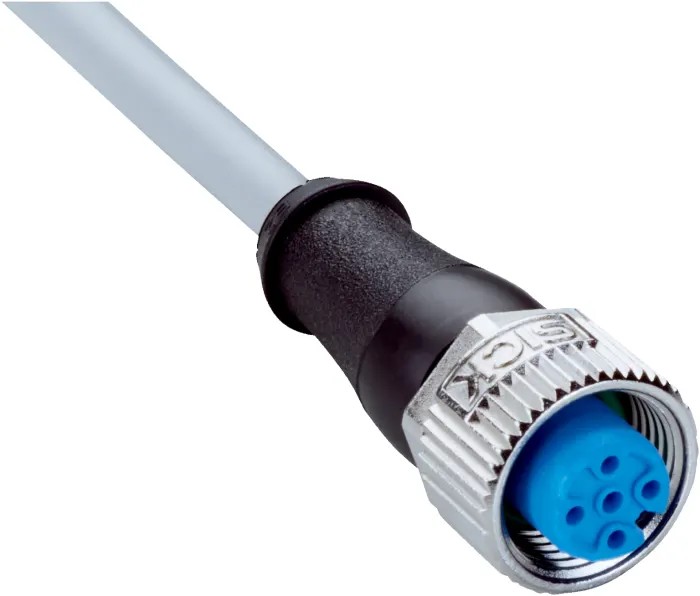

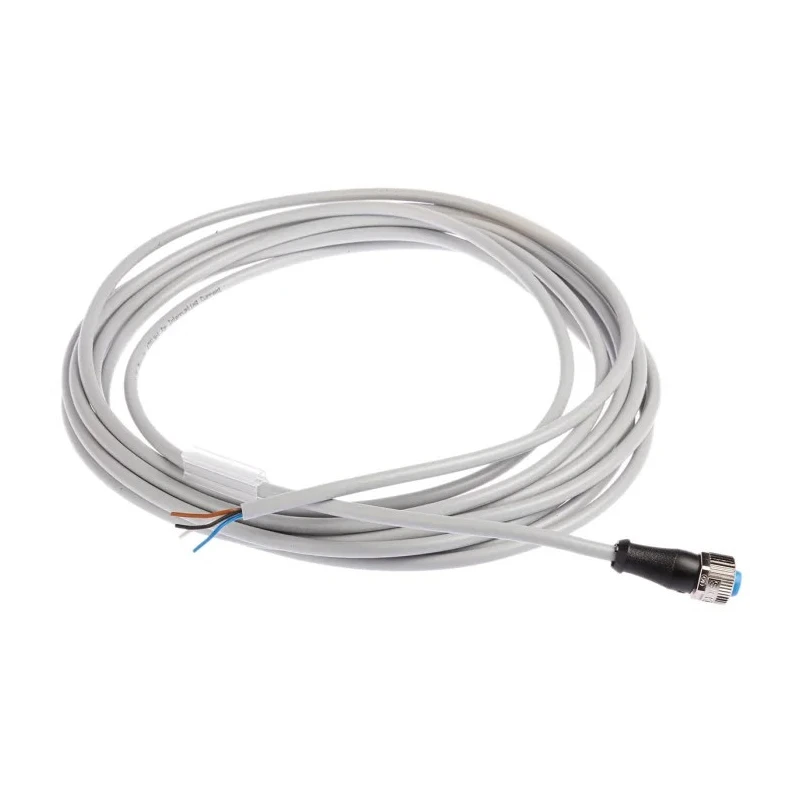

SICK Sensor Actuator Cable Female 4 Way Straight M12 to Unterminated 4 Way 5m Grey PVC Jacket YF2A14-050VB3XLEAX / 2096235

SICK YF2A14-050VB3XLEAX / 2096235 Sensor Actuator Cable is a 5-meter long industrial cable designed to connect M12-equipped sensors to control wiring with reliability and durability. Featuring a female 4-contact straight M12 connector at one end and unterminated leads at the other, the cable facilitates versatile integration and flexible terminations in automation and manufacturing environments.

The cable's grey polyvinyl chloride (PVC) jacket offers resistance to common chemicals and mechanical wear, making it suitable for harsh industrial zones requiring wash-down and dust protection. Its IP65, IP66K, and IP67 ratings certify protection against water jets, dust ingress, and temporary immersion.

Rated for 250 volts with 0.34 mm² conductors carrying currents up to 4A, this cable supports typical control voltages and field devices. The M12 female connector is secured by a screw-lock mechanism tightened to 0.6 N·m, featuring a zinc die-cast, nickel-plated locking nut for corrosion resistance and mechanical robustness.

The cable operates in temperatures ranging from -5 °C to +80 °C during flexing, covering most dynamic installation needs. Although unscreened for electrical interference, appropriate routing away from high-power cables is recommended to minimize signal noise.

The mechanical bending requirements specify a minimum bend radius greater than 10 times the cable diameter for flexible use and more than 5 times diameter for fixed installations, ensuring cable longevity and performance.

Widely applied in industrial automation, this cable is ideal for connecting proximity sensors to control panels, actuator wiring on conveyor systems, and field wiring in wash-down production environments. It meets CE and UL approvals with UL file E335179 and complies with overvoltage category III and rated impulse voltage of 2.5 kV for industrial safety standards.

The cable length is 5 meters, offering flexible reach for site wiring. Features four contacts in the female straight M12 connector for sensor and actuator signals. Durable PVC grey jacket withstands harsh chemical and mechanical stresses.

Rated voltage of 250 volts supports standard industrial control applications. Enclosures comply with IP65, IP66K, and IP67 for wash-down and dust protection. Screw-lock zinc die-cast, nickel-plated locking nut ensures reliable connector fastenings.

Operates in a temperature range from -5 °C to +80 °C when flexed during service. Bending radius minimums ensure mechanical stability in flexible and fixed installations. Unscreened cable recommends careful routing to prevent electrical interference.

This product is made in Germany and intended for industrial, automation, manufacturing, and machine wiring applications. It is part of a reliable sensor actuator cable series from SICK designed to maintain signal integrity and mechanical durability in demanding industrial environments.
