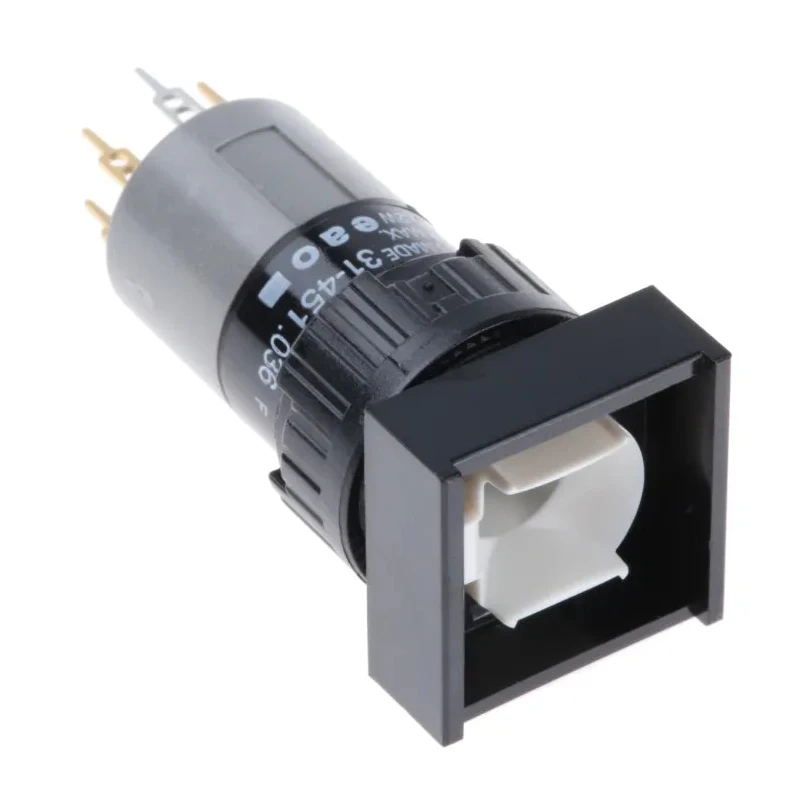

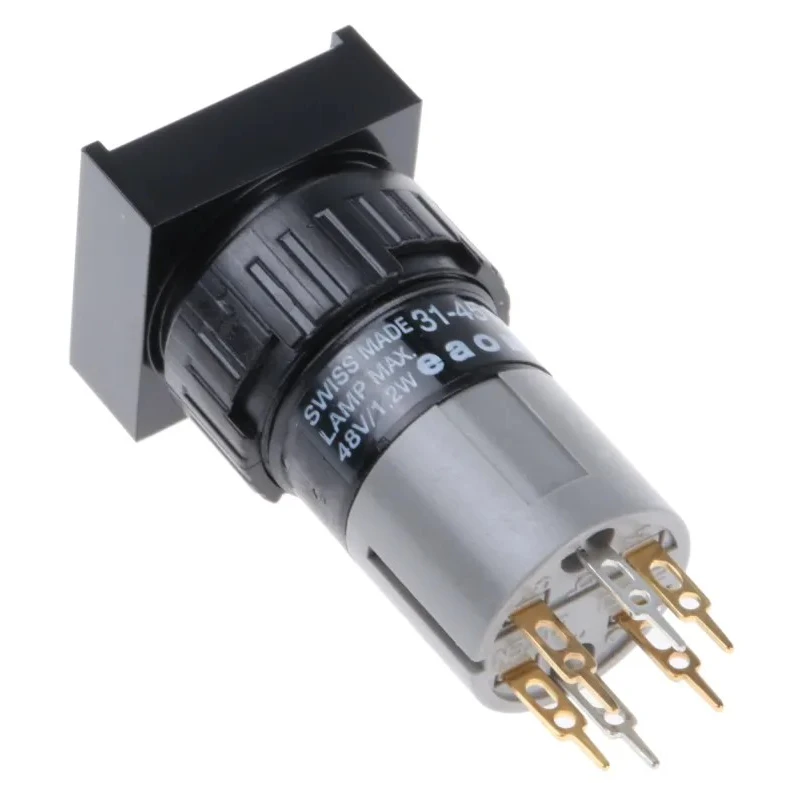

EAO Illuminated Push Button Switch, Button Actuator, 16mm Panel Cut-out, Model 31-451.036



Category Push Button Switches & Components Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Actuator Type	Button
Standards/Approvals	RoHS
EAO Push Button Switch for Use with Series 31 Push ButtonsBrand	EAO
EAO Illuminated Push ButtonBrand	EAO

Key Features

Suitable for Human Machine Interface panel mounting including Process Control and Machinery.
Available with round, square, or rectangular bezels and snap action or low level switching elements.
Supports momentary or maintained switching actions for versatile use.
Illumination via T1 ¾ midget filament lamp or single chip LED within 6 to 48V range.
Supports panels with thickness between 1.5 and 6mm and requires 16mm panel cut-out.
Self-extinguishing housing material with Class II compliance and 2500Vac electric strength.
Multiple configurations with normally open or normally closed contacts available.
Compatible accessories include lenses, filament lamps, LEDs, and toolkits for assembly.

Product Description

EAO 31-451.036 Illuminated Push Button Switch is designed with a Button Actuator and requires a 16mm panel cut-out. It is manufactured in Switzerland and is suited for various Human Machine Interface (HMI) panel mounting applications such as Process Control, Panel Building, Machinery, and Instrumentation.

The switch is available with different bezel shapes including round (18mm diameter), square (18x18mm), and rectangular (18x24mm). It offers snap action or low level switching elements combined with momentary or maintained switching actions, allowing customization for specific operational needs.

The snap action element features a self-cleaning, double-break mechanism with solder terminals, while the low level element supports switching of electronic circuit loads from microamps to 100mA at 42Vac/dc, using universal terminals for direct soldering or PCB installation.

Illumination is achieved with a T1 ¾ midget filament lamp or single chip LED supporting voltages between 6 and 48V. For voltages above 48V, an external series resistor is required. The switch housing is constructed from self-extinguishing material, meeting Class II safety standards and offering electric strength of 2500Vac at 50Hz for one minute between terminals and earth as per IEC 60512-2-11.

This product supports panel thickness from 1.5mm to 6mm, boasting a long operational life, short mechanical rebound, and stable contact resistance. Configurations include normally open or normally closed contacts with snap action or low level switching elements, and momentary or maintained actions.

Accessories such as lenses (stock numbers 749-2611, 248-5425, 248-5374), filament lamps (655-9211), LEDs (225-997), and a dedicated toolkit (248-5481) are available to complete the illuminated switch assembly.

Suitable for Process Control, Industrial Automation, Instrumentation, Machinery, and Panel Building applications. Offers a raised button profile for ergonomic use. Complies with RoHS and EN 61058 standards ensuring environmental and safety adherence.

Compatible with all Series 31 push buttons from EAO for integrated solutions. Explore the comprehensive range of EAO push button switches at EnvMart for reliable and customizable control solutions in industrial settings.
