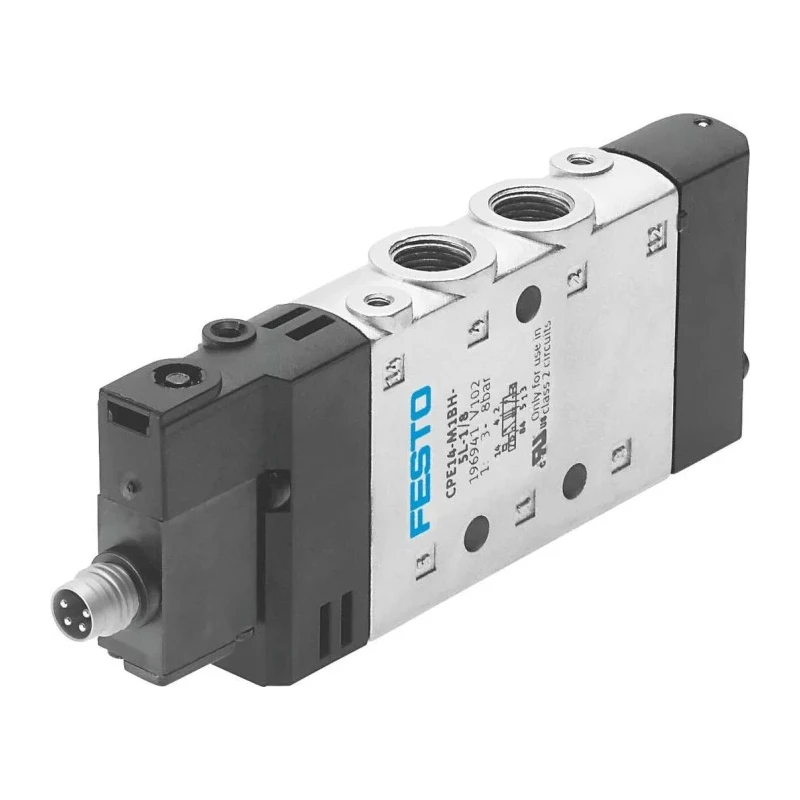

Festo Solenoid Pilot Valve 5/2, 24V DC, Die Cast Aluminium, Pilot G 1/8 CPE14-M1CH-5L-1/8

Festo CPE14-M1CH-5L-1/8 is a solenoid pilot valve designed for pneumatic systems, featuring a 5/2 valve function and powered by 24V DC.

The valve utilizes a die-cast aluminium body for excellent corrosion resistance and mechanical strength. It is designed for through-hole mounting and has a compact 14mm width for versatile installation.

This valve controls airflow direction using five ports and two positions, operated electromagnetically to ensure accurate switching and system responsiveness. The pilot operation type leverages pilot pressure ranges from 0.9 bar minimum to 10 bar maximum, with a maximum operating pressure of 8 bar.

Seal materials employed include perfluoroelastomer, ethylene propylene diene monomer (EPDM), fluoroelastomer, and polytetrafluoroethylene, ensuring minimal air leakage and system reliability. It functions effectively in temperatures from -5°C to 50°C.

The valve features a soft-seal cartridge design, contributing to airtight operation and consistent pressure maintenance. It switches off within 32 milliseconds and switches on within 24 milliseconds, satisfying requirements for quick and precise control in automated applications.

When paired with a plug socket, the valve achieves an IP67 protection rating, making it dust-proof and able to withstand immersion in 1 meter of water for up to 30 minutes. This makes it suitable for challenging industrial environments.

This solenoid pilot valve is widely used across assembly lines, HVAC systems, water treatment plants, medical equipment, and irrigation systems due to its reliable operation and versatile mounting options.

Features a 5-port, 2-position design for precise airflow direction control. Die-cast aluminium body provides corrosion resistance and durability. Operates at a maximum pressure of 8 bar and pilot pressure up to 10 bar. Seal materials ensure minimal air leakage and maintain pressure.

Compact 14mm width and through-hole mounting enhance installation flexibility. Soft-seal cartridge design prevents leakage and keeps system stable. Fast switching times of 24ms on and 32ms off improve automation precision.

IP67 rating with plug socket for protection against dust and water immersion. Suitable for industrial, medical, HVAC, water treatment and irrigation applications. Explore more Pneumatic Solenoid Valves and associated industrial automation products on EnvMart to optimize your fluid power systems.
