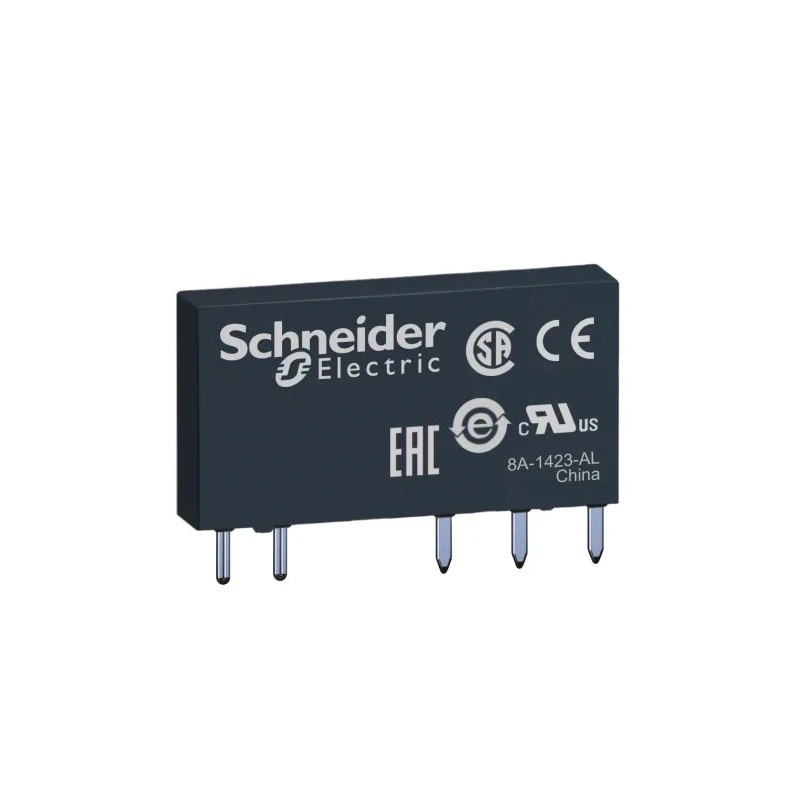

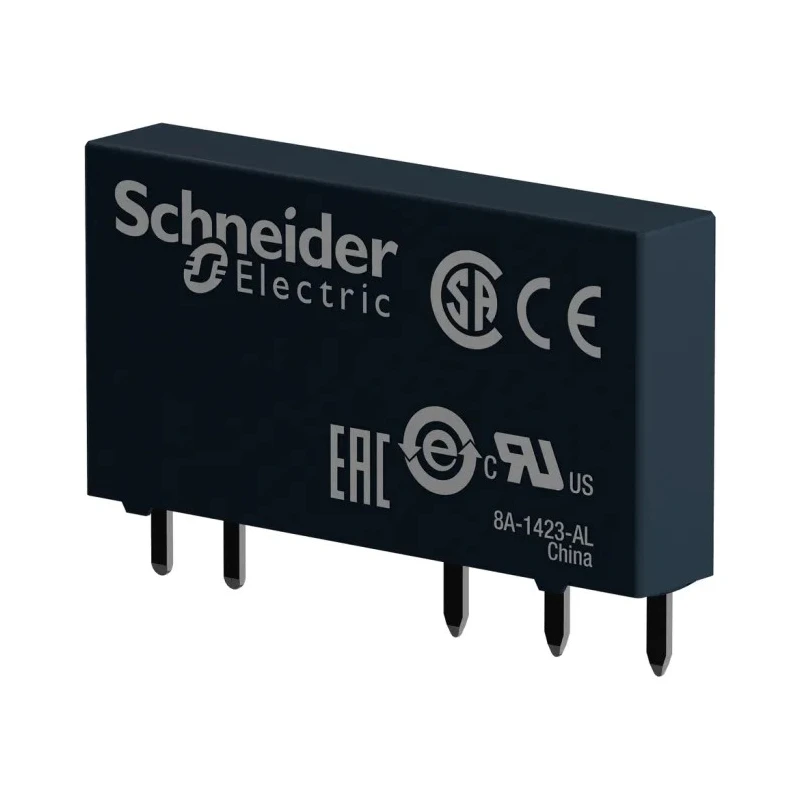

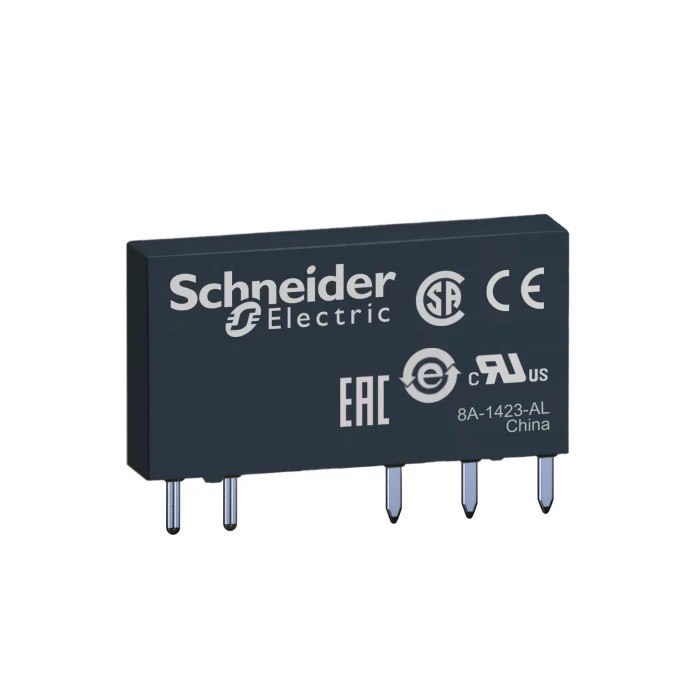

Schneider Electric PCB Power Relay 60V DC Coil 6A Switching Current SPDT RSL1GB4ND

Schneider Electric RSL1GB4ND PCB Power Relay is a high-performance relay designed for industrial and automation applications requiring reliable switching with a compact form factor. The relay features a 60V DC coil and an SPDT (single pole double throw) contact configuration rated for 6A switching current, supporting AC and DC voltages up to 277V with a switching power capacity of 1.5kVA.

The relay is engineered with a slim width of 5mm and a compact height of 15mm, making it especially suitable for space-constrained PCB mounting. The plug-in terminal design enables quick and secure installation as well as easy withdrawal for maintenance or replacement.

Its coil resistance is 16.6kΩ, and it operates reliably over a broad temperature range from -40°C minimum to 55°C maximum, ensuring stable performance in diverse environmental conditions.

The contact material utilizes silver alloy to provide consistent conductivity and long-term durability under electrical load, enhancing the relay's reliability in industrial control circuits.

This relay is part of the RSL series from Schneider Electric, which is optimized for slim interface relays that save enclosure space and offer modularity for DIN rail mounting at the enclosure rear. Its compact design improves machine reliability and reduces enclosure size requirements.

Ideal for hard-wired logic circuits and programmable logic controllers, it addresses the needs of automation and signal conditioning systems found in manufacturing, HVAC, water treatment, and other industrial processes.

This power relay is compact with a slim width of 5mm, suitable for PCB mounting. It supports switching AC/DC voltages up to 277V and a switching power of 1.5kVA. The coil resistance of 16.6kΩ ensures efficient operation.

Operating temperature range from -40°C up to 55°C allows wide environmental use. Contact material uses silver alloy for reliable conductivity and durability. Plug-in terminal type enables easy installation and replacement.

Designed for high reliability in industrial automation and control systems. Compatible with programmable logic controllers and automated hard-wired logic systems. Explore the wide range of Schneider Electric Power Relays and related electrical components available for automation and control systems at EnvMart.
