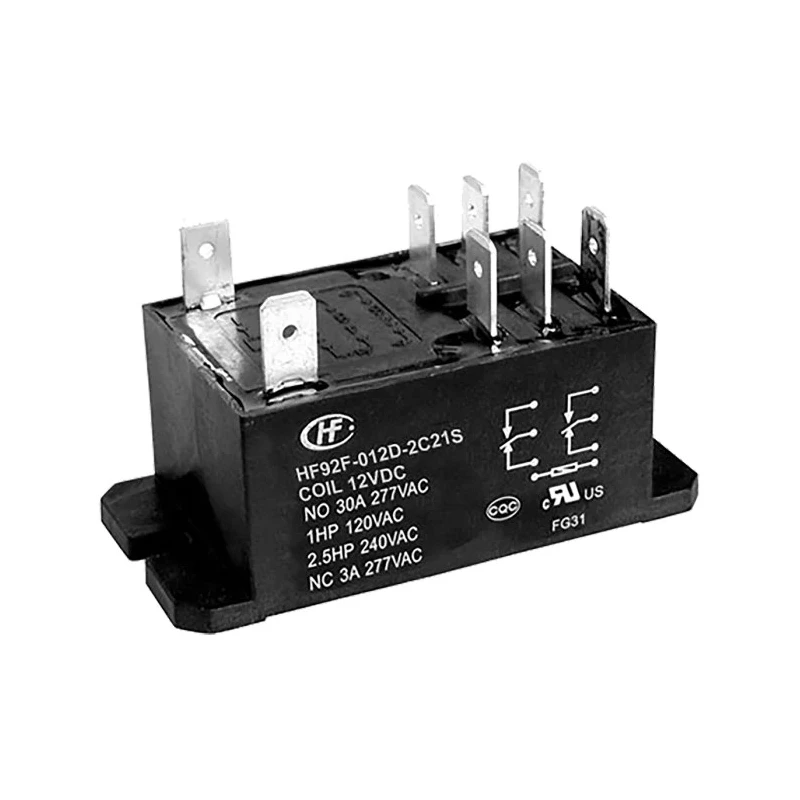

Hongfa Europe GMBH Flange Power Relay 12V dc Coil, 30A Switching Current, DPDT HF92F-012D-2C21S
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.4mm |
| Length | 68.6mm |
| Model | HF92F-012D-2C21S |
| Width | 33.7mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | HF92F |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Contact Resistance | 50mΩ |
| Standards/Approvals | cULus, CQC |
| Coil Resistance | 86Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.7W |
Key Features
- This miniature intermediate power relay supports both AC and DC coil options.
- The relay incorporates silver tin oxide terminals for improved conductivity and durability.
- Designed with a 4 kV dielectric strength and 3 mm contact gap for electrical safety.
- Quick connect terminals sized 6.4 x 0.8 mm enable easy installation.
- Operating temperature ranges from -40°C to 85°C, ensuring reliability in harsh environments.
- The relay is housed within a sealed plastic flange mount for mechanical stability.
- Silver alloy contact material provides low contact resistance of 50mΩ.
- Coil power consumption is 1.7W, with coil resistance of 86Ω.
Product Description
Hongfa Europe GMBH HF92F-012D-2C21S is a flange mount power relay with a 12V dc coil designed for industrial applications requiring reliable switching of high currents up to 30A. Its double-pole double-throw (DPDT) contact configuration allows versatile circuit control in automation, electrical, HVAC, and manufacturing systems.
This relay comes with a sealed plastic housing and quick connect terminals that support ease of installation and maintenance. The silver tin oxide terminals and silver alloy contacts with 50mΩ resistance offer excellent electrical conductivity and durability under repeated switching cycles.
The device complies with cULus and CQC standards and operates reliably within a temperature range from -40°C to 85°C, making it suitable for demanding industrial environments. The 4 kV dielectric strength rating provides substantial insulation for electrical safety.
Its miniature size, with dimensions 68.6mm length, 33.7mm width, and 26.4mm height, allows compact integration in control panels and electronic assemblies. Coil power consumption rated at 1.7W with 86Ω coil resistance ensures efficient operation.
This miniature intermediate power relay supports both AC and DC coil options. The relay incorporates silver tin oxide terminals for improved conductivity and durability. Designed with a 4 kV dielectric strength and 3 mm contact gap for electrical safety.
Quick connect terminals sized 6.4 x 0.8 mm enable easy installation. Operating temperature ranges from -40°C to 85°C, ensuring reliability in harsh environments. The relay is housed within a sealed plastic flange mount for mechanical stability.
Silver alloy contact material provides low contact resistance of 50mΩ. Coil power consumption is 1.7W, with coil resistance of 86Ω. Compact dimensions: length 68.6mm, width 33.7mm, and height 26.4mm.
This flange power relay is ideal for industrial, commercial, and automation applications requiring high current switching reliability and long service life. Suitable uses include power control in HVAC systems, manufacturing automation, industrial machines, and signal conditioning circuits.
Explore similar Power Relays and related electrical components in the Electronics & Electricals category at EnvMart to find the exact matching parts for your systems and projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 30A.
The coil voltage for this relay is 12V DC.
The relay has dimensions of 68.6mm in length, 33.7mm in width, and 26.4mm in height.
It features a double-pole double-throw (DPDT) contact configuration.
This relay operates reliably within a temperature range from -40°C to 85°C.
It is equipped with quick connect terminals sized 6.4 x 0.8 mm for easy installation.
The contact resistance of this model is rated at 50mΩ.
The relay complies with cULus and CQC standards.
The coil power consumption is rated at 1.7W.
The relay has a dielectric strength of 4 kV, ensuring electrical safety.
The contacts are made of silver alloy, which provides low contact resistance.
This relay is suitable for applications in HVAC systems, manufacturing automation, and signal conditioning circuits.
