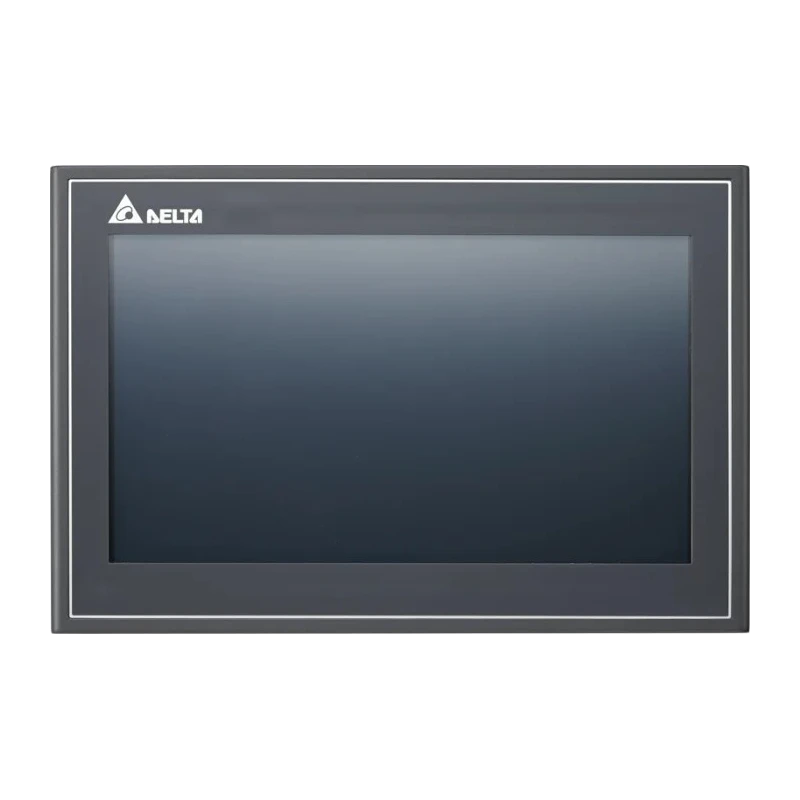

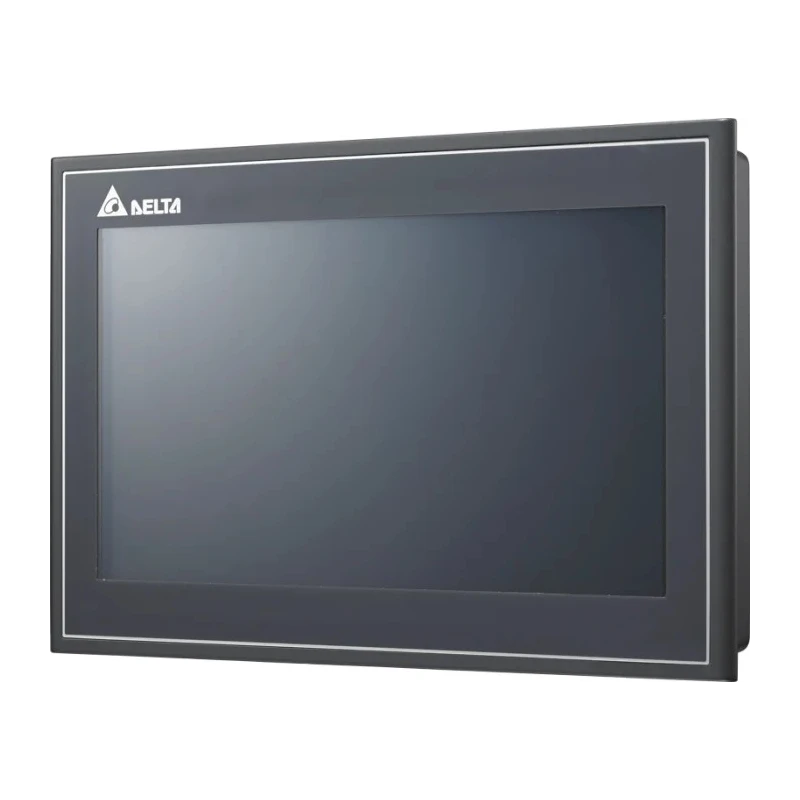

Delta Electronics HMI Series Touch Screen HMI 10 in TFT LCD 1024 x 600 pixel DOP-110WS

Delta Electronics DOP-110WS is a 10.1 inch TFT LCD Touch Screen HMI designed for advanced human-machine interface applications in industrial automation, manufacturing, and control systems. Featuring a narrow frame design and a wide screen, this model delivers a resolution of 1024 x 600 pixels to ensure detailed and sharp display output.

Powered by an ARM Cortex-A8 800MHz microcontroller unit, it provides robust processing capabilities while maintaining efficient natural air cooling. The device supports Ethernet communication via a 10/100 Mbps auto-sensing port, enabling seamless network connectivity in industrial environments.

With a back light brightness of 450 cd/m² and a color display supporting 65,000 colors, the HMI offers excellent visibility and user interface clarity. Operational temperature ranges from 0°C to 50°C, making it suitable for diverse environments.

This HMI unit is rated IP65, providing strong protection against dust and water, critical for industrial usages. Multilingual input support enhances versatility for global applications.

The compact design with dimensions of 270 mm width and 47.5 mm depth allows installation flexibility in control panels or machinery. It complies with RoHS standards ensuring environmentally responsible manufacturing practices.

Common applications include industrial automation systems, factory machinery control, and process visualization in sectors such as manufacturing, HVAC, and water treatment. Features a 10.1 inch TFT LCD advanced narrow frame touchscreen.

Equipped with an ARM Cortex-A8 800MHz MCU for efficient processing. Offers natural air cooling for reliable operation. Supports Ethernet communication with a 10/100 Mbps auto-sensing port. Includes multilingual input capabilities for flexible interface options.

Operates within 0 to 50°C temperature range suitable for industrial environments. Complies with RoHS standards ensuring environmental safety. Has an IP65 rating for protection against dust and water ingress. Provides 450 cd/m² backlight brightness for clear visibility.

Display color supports 65 K colors for crisp graphical interface. Compact dimensions with 270 mm width and 47.5 mm depth for space saving. Manufactured in China with a focus on industrial HMI applications. Explore more HMI options and automation solutions in the Electronics & Electricals category at EnvMart.
