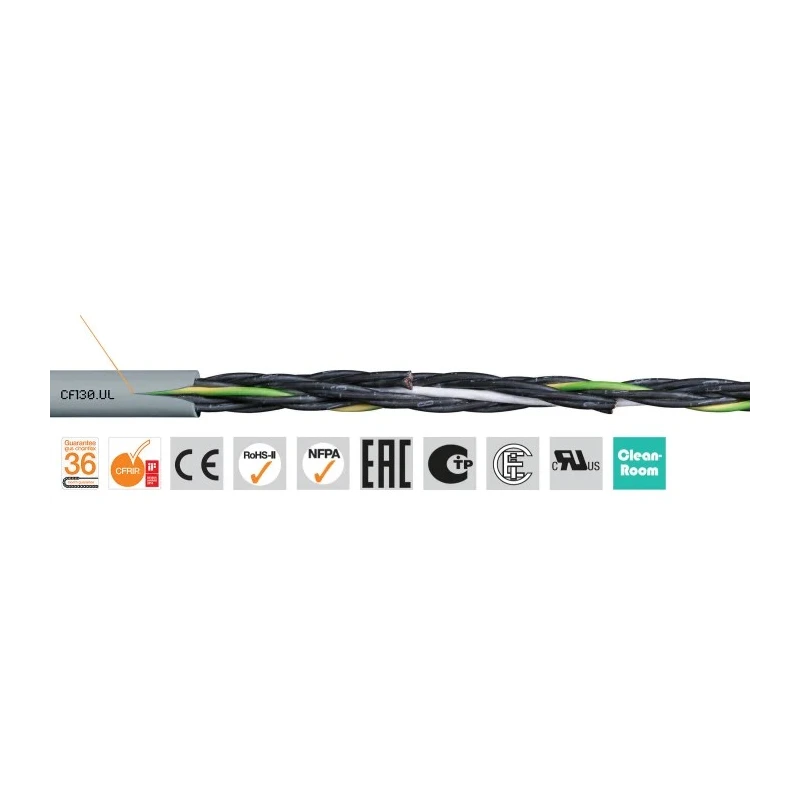

Igus Chainflex CF130.UL Unscreened Control Cable 3 Cores 0.5mm² 20 AWG Thermoplastic Elastomer Sheath CF130.05.03.UL (100m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF130.05.03.UL (100m) |
| Cable Length | 100m |
| Series | Chainflex CF130.UL |
| Outside diameter | 5.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 3 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
Key Features
- Designed for medium duty applications with a small bend radius for space-saving installation.

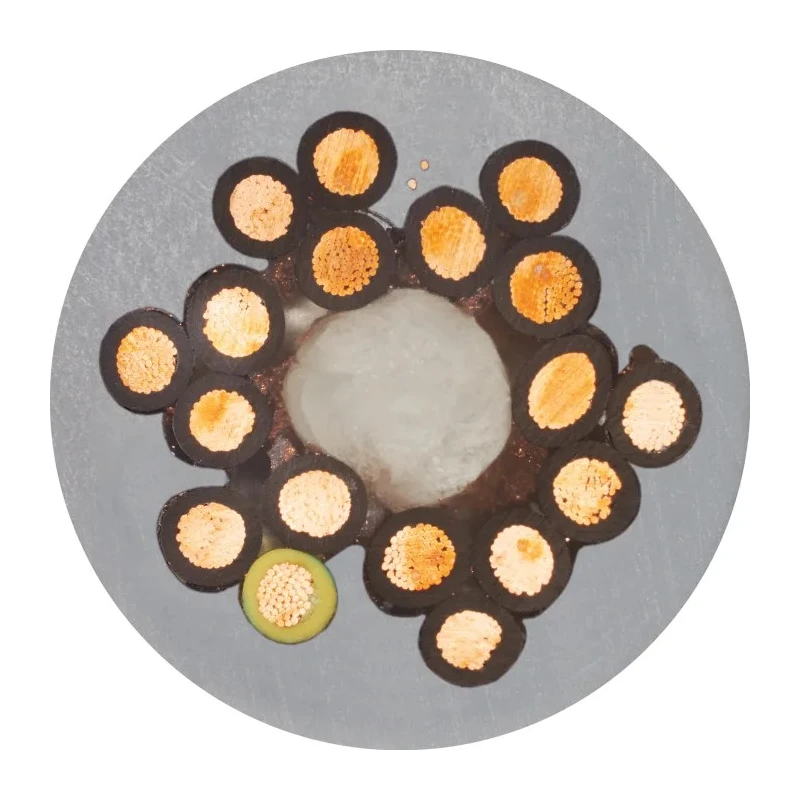

- Features a patented core bundled design ensuring long-lasting lifetime in dynamic echain® applications.
- Rated for 300/500 V voltage with flame retardant properties according to IEC 60332-1-2.
- Operating temperature range from -15°C to +70°C, suitable for indoor and protected outdoor use.
- Conductor made of stranded copper offering reliable conductivity and flexible use.
- Unscreened cable ideal for applications where EMC/EMI interference is not a concern.
- Thermoplastic elastomer jacket ensures high abrasion resistance in non-oil and non-chemical environments.
- Armoured cable with 5.5 mm nominal outside diameter for robust protection.
Product Description
Igus CF130.05.03.UL (100m) control cable is a high-quality unscreened control cable designed for medium duty industrial applications requiring flexible and reliable performance. Featuring 3 cores with stranded copper conductors of 0.5mm² cross-section (20 AWG), this cable is sheathed in a grey thermoplastic elastomer that provides excellent abrasion resistance while being cost-effective for environments without oil or chemical exposure.
The patented core bundled design offers a small bend radius, making it ideal for use in dynamic echain® cable carrier systems and flexible installations where space efficiency is critical. Rated for 300/500 V operation and equipped with flame retardant properties tested according to IEC 60332-1-2, this armoured cable maintains robust protection with a nominal outer diameter of 5.5 mm.
The cable supports a wide continuous temperature range from -15°C to +70°C, suitable for both indoor and frost-protected outdoor environments. Its unscreened construction is perfect for applications where electromagnetic interference is not a primary concern.
Certified to meet EN and CE standards, and conforming to RoHS-II directives, this igus Chainflex CF130.UL series cable comes with a trusted 36-month service life guarantee validated by extensive laboratory testing at igus. Typical industrial applications include wood and stone processing, packaging machinery, supply systems, and equipment handling and adjustment, making it a versatile choice for automated control wiring needs.
Small bend radii enable installation in confined spaces. Patented bundled core design extends cable lifetime in dynamic applications. 300/500 V voltage rating with flame retardant jacket. Wide temperature range from -15°C to +70°C ensures versatility.
Stranded copper conductors provide flexibility and conductivity. Unscreened construction suitable where EMC/EMI is non-critical. Thermoplastic elastomer sheath offers abrasion resistance and durability. Armoured cable with 5.5mm outer diameter for mechanical protection.
Conforms to EN, CE, and RoHS-II standards with 36-month guarantee. Ideal for industrial automation in wood processing, packaging, and material handling. Explore more Control Cable solutions in the Electronics & Electricals category at EnvMart for reliable industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 300/500 V operation.
The maximum operating temperature is +70°C.
The nominal outside diameter is 5.5 mm.
Yes, it is suitable for indoor and frost-protected outdoor use.
The minimum operating temperature is -15°C.
The jacket is made of thermoplastic elastomer, providing high abrasion resistance.
It conforms to EN and CE standards and is compliant with RoHS-II directives.
It is designed for medium duty industrial applications, including wood and stone processing, packaging machinery, and equipment handling.
Yes, it has flame retardant properties tested according to IEC 60332-1-2.
The cable has a 20 AWG rating.
