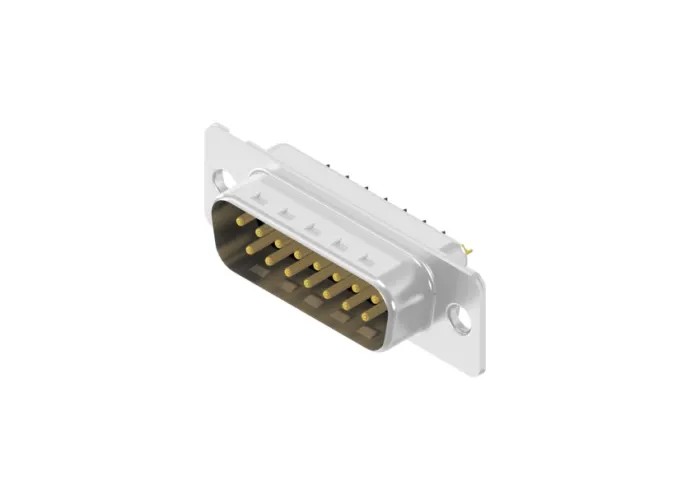

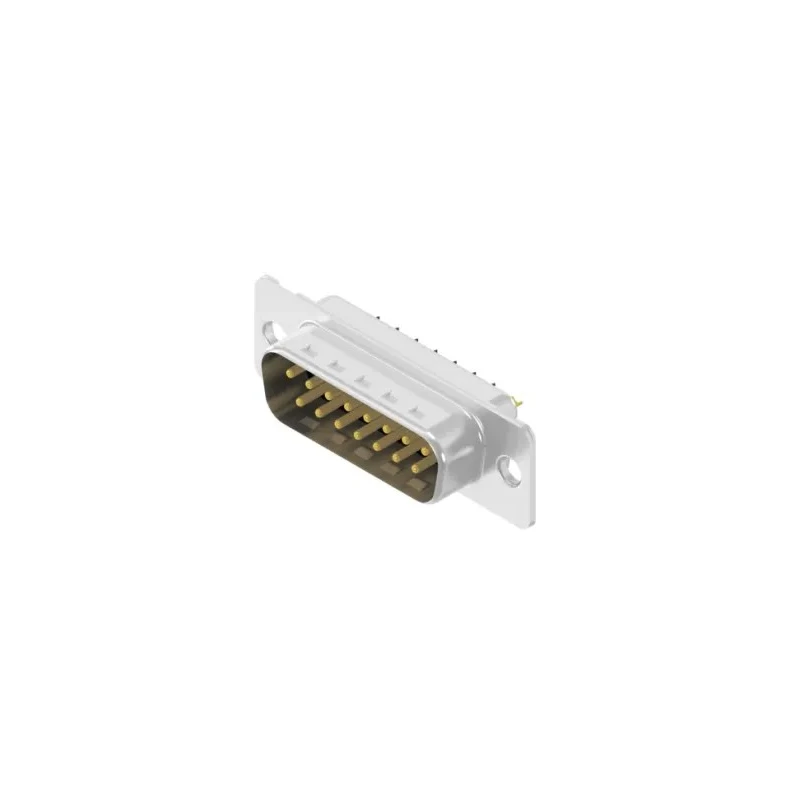

CONEC 15 Way Straight Through Hole D-Sub Connector, Male, 7.5A, 125V, Steel Housing, Solder Cup Termination 163A11079X
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | CONEC |
| Orientation | Straight |
| Current | 7.5A |
| Model | 163A11079X |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy Gold Over Nickel |
| Mounting Hardware | Mounting Hole |
| Termination Type | Solder Cup |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CSA, UL, VDE |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 20 AWG |
| Connector Type D | D-Sub |
| D-Sub Shell Size | 15 |
Key Features
- This D-Sub connector features 15 contacts in a male connector configuration.
- The connector mounts via through hole with mounting holes for secure installation.
- It supports a current rating of 7.5 amperes and operates up to 125 volts.
- Designed with a solder cup termination for reliable electrical connections.
- Operating temperature ranges from -55°C to 125°C for robust environmental performance.
- The shell size is 15 and the contact size is 20 AWG copper alloy plated with gold over nickel.
- Certified to CSA, UL, and VDE standards assuring quality and compliance.
- Suitable for industrial, electronic component, and power connector applications.
Product Description
The CONEC 163A11079X 15 Way Straight Through Hole D-Sub Connector is a high-quality male connector designed for power and electronic component applications. It features a straight orientation and robust steel housing, ensuring durability and reliability in demanding environments.
This D-Sub Connector supports a current rating of 7.5A and a voltage rating of 125V, making it suitable for various industrial, manufacturing, and electronic connectivity uses. The connector uses a solder cup termination method for secure and stable electrical connections, while the 20 AWG copper alloy contacts plated with gold over nickel provide excellent conductivity and corrosion resistance.
The mounting hardware includes mounting holes designed for through-hole PCB mounting, guaranteeing a stable mechanical connection. It operates effectively across a wide temperature range from -55°C minimum to 125°C maximum, making it suitable for harsh temperature environments such as HVAC, industrial controls, and power distribution systems.
Certified with CSA, UL, and VDE approvals, this connector meets international safety and performance standards. Its shell size 15 corresponds to standard D-Sub dimensions, allowing compatibility with various mating connectors and industry setups.
This connector includes 15 contacts configured in a male style for device interfacing. The straight through-hole mount type ensures ease of PCB integration. The steel housing offers mechanical strength and EMI shielding.
Gold over nickel plating ensures long-term reliability of the contact surfaces. RoHS compliant, it meets environmental regulatory requirements. Widely used in industrial electronics, power supplies, telecommunications, and automation equipment.
Choose CONEC 163A11079X for your electronic design and power connector needs, benefiting from reliable performance and certification-backed quality. Browse further in EnvMart’s Power Connectors category to explore more components from CONEC and top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a current rating of 7.5 amperes and operates at a voltage rating of 125 volts.
It operates effectively across a temperature range from -55°C to 125°C, making it suitable for harsh environments.
The connector utilizes a solder cup termination method for secure and stable electrical connections.
This model features 15 contacts configured in a male style for device interfacing.
The shell size of this connector is 15, which corresponds to standard D-Sub dimensions.
The contacts are made of copper alloy plated with gold over nickel, providing excellent conductivity and corrosion resistance.
It supports a through-hole mounting type with mounting holes designed for secure installation on PCBs.
This connector is certified to CSA, UL, and VDE standards, ensuring quality and compliance with international safety standards.
The housing is made of steel, providing mechanical strength and EMI shielding.
The contact size is 20 AWG, suitable for various electronic applications.
It is suitable for industrial, electronic component, and power connector applications, including telecommunications and automation equipment.
The country of origin for this connector is India.
