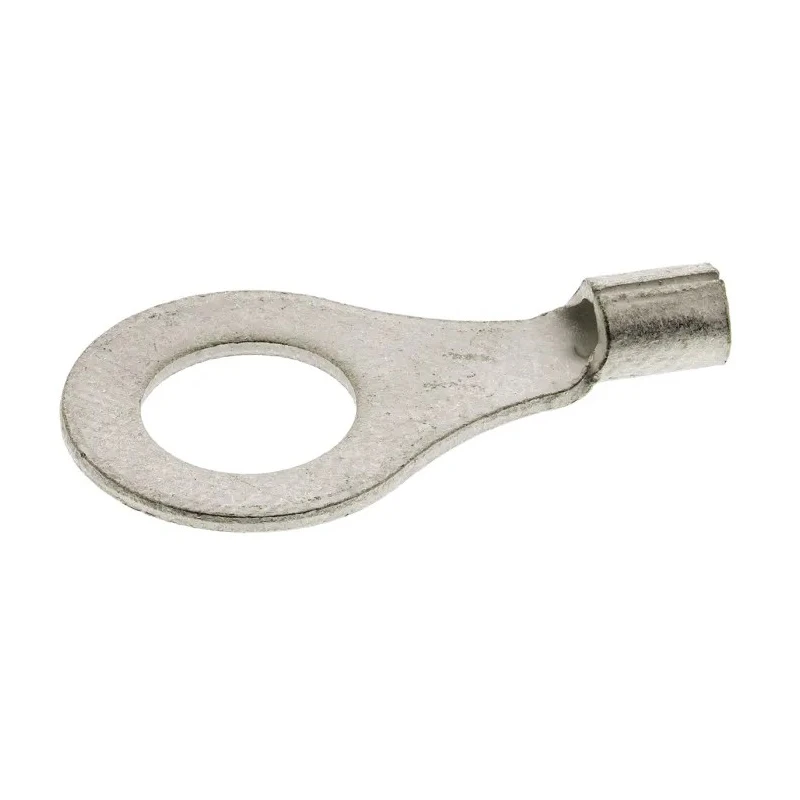

TE Connectivity Solistrand Uninsulated Ring Terminal M6 Stud Size 22 AWG to 16 AWG Wire Size 34113
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 34113 |
| Insulation | Uninsulated |
| Overall Length | 21.74mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.9mm |
| Inner Ring Diameter | 6.73mm |
| Stud Size | M6 |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- Constructed from fine grade high conductivity copper for optimal electrical performance.
- Electro tin plating improves corrosion resistance for enhanced durability.
- Uninsulated design suitable for applications requiring direct metal contact.
- Brazed barrel seams increase metal strength and resistance to harsh environments.
- Serrated and dimpled barrel interior ensures maximum tensile strength and electrical contact area.
- Bell-shaped barrel entrance facilitates easier wire insertion and faster installation.
- Rated for a maximum operating temperature of 170°C for wide industrial suitability.
- Compatible with SOLISTRAND crimping tools for optimum mechanical strength and conductivity.
Product Description
TE Connectivity 34113 Solistrand Uninsulated Ring Terminal is engineered for reliable wire termination with M6 stud compatibility and supports wire sizes from 22 AWG to 16 AWG. Manufactured from high conductivity copper and electro tin plated, this uninsulated ring terminal offers superior electrical performance and corrosion resistance.
The robust design incorporates brazed seams that enhance barrel strength, suitable for demanding industrial environments. The serrated and dimpled barrel design maximizes tensile strength and electrical contact after crimping, while the bell-shaped barrel entrance enables quicker and easier wire insertion, reducing installation time.
Rated for a maximum operating temperature of 170°C, this ring terminal ensures dependable performance across a variety of applications including materials handling equipment, heavy machinery, pad and pole mount transformers, switchgear, telecommunications, panel boxes, power supplies, and control instruments.
Meticulously compliant with RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standards, it ensures safe and environmentally responsible usage. For optimal results, it is recommended to pair these terminals with SOLISTRAND crimping tools available separately.
Fine grade copper construction for excellent conductivity. Electro tin plating for enhanced corrosion protection. Uninsulated design for direct metal contact applications. Brazed seams for increased mechanical strength. Dimpled and serrated barrel interior for tensile strength and electrical contact maximization.
Bell-shaped barrel mouth for quick wire insertion. 170°C maximum operating temperature rating. Ideal for diverse industrial equipment and control panel applications. Complies with RoHS and ANSI/ESD electrostatic control standards.
This product forms an essential component in electronic assemblies, power connection tasks, and harsh environment operations, ensuring longevity and reliability. Browse further electronic connector solutions at EnvMart to complement your industrial and commercial needs.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this uninsulated ring terminal is 170°C.
This model supports wire sizes from 22 AWG to 16 AWG.
It is constructed from fine grade high conductivity copper and features electro tin plating for improved corrosion resistance.
The stud size for this terminal is M6.
The serrated and dimpled barrel interior maximizes tensile strength and electrical contact area after crimping, while the bell-shaped barrel entrance facilitates easier wire insertion.
This product complies with RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standards.
The overall length of the terminal is 21.74 mm.
The outer ring diameter is 11.9 mm and the inner ring diameter is 6.73 mm.
It is recommended to use SOLISTRAND crimping tools for optimal mechanical strength and conductivity.
This terminal is suitable for applications including materials handling equipment, heavy machinery, telecommunications, and control instruments.
The thickness of this terminal is 0.79 mm.
The minimum wire size is 0.26 mm² and the maximum wire size is 1.65 mm².
