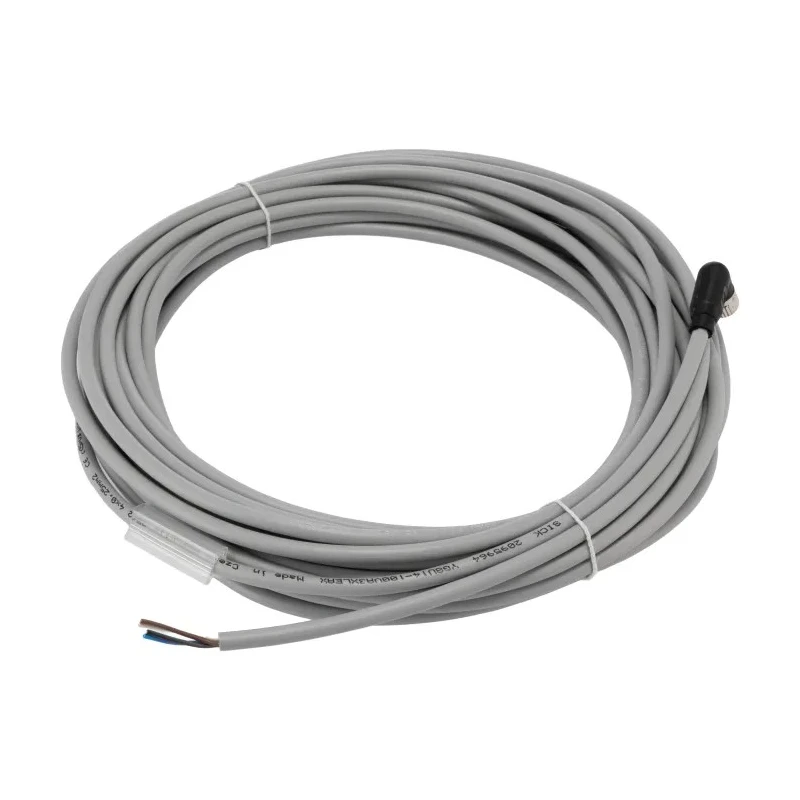

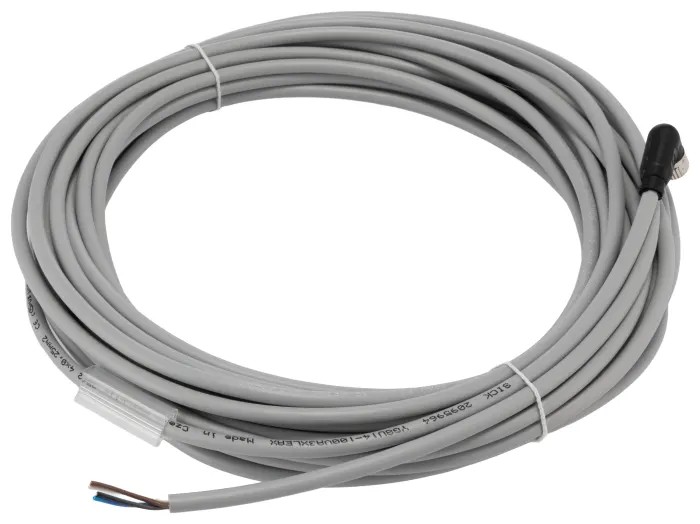

SICK Female 4 Way M8 to Unterminated Free End Sensor Actuator Cable 10 m YG8U14-100VA3XLEAX

SICK YG8U14-100VA3XLEAX sensor actuator cable is a high-quality 10-meter cable designed for industrial automation and control applications. It features a female angled M8 connector on one end and unterminated free leads on the other, allowing flexible wiring options for sensors and actuators.

The cable jacket is made from polyvinyl chloride (PVC) in grey color, providing chemical resistance and durability suitable for chemical-exposed zones. This cable is rated for a maximum voltage of 60V and supports a current rating of up to 4A, making it ideal for low-voltage sensor circuits.

With an IP67 rating, this cable withstands dust ingress and water immersion, ensuring reliable operation in harsh, wash-down, and outdoor industrial environments. The cable's flexible temperature rating ranges from −5°C to +80°C for flexible use, with stationary installation temperature from −30°C to +80°C. The connector head can operate between −25°C to +85°C.

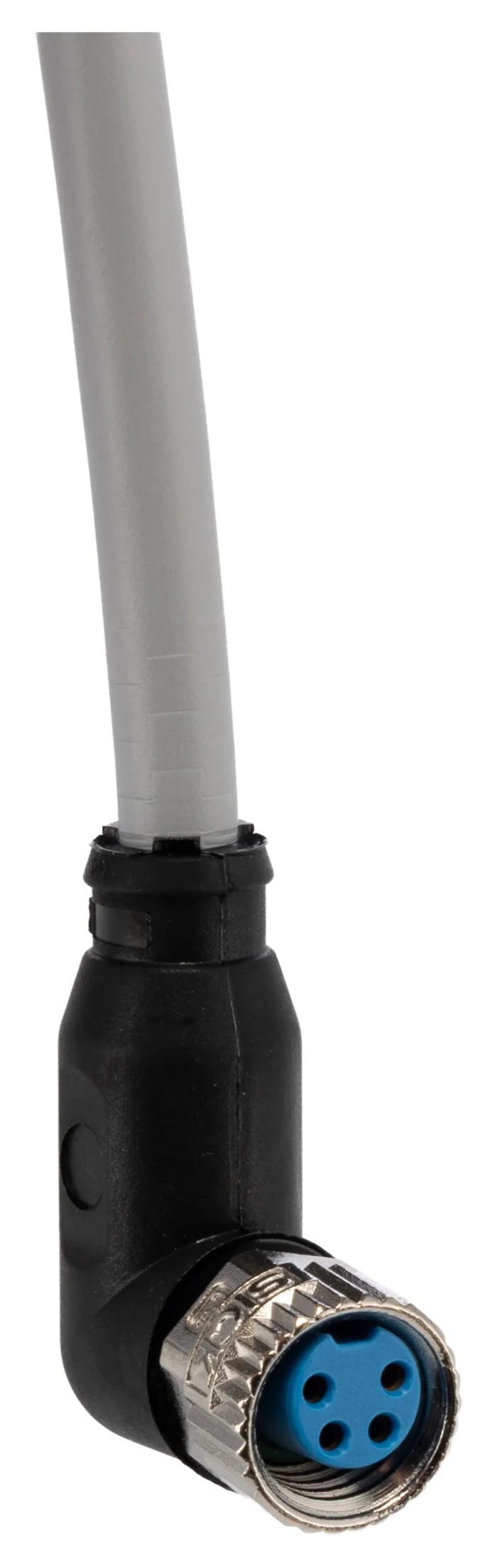

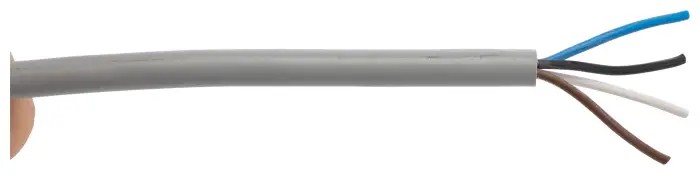

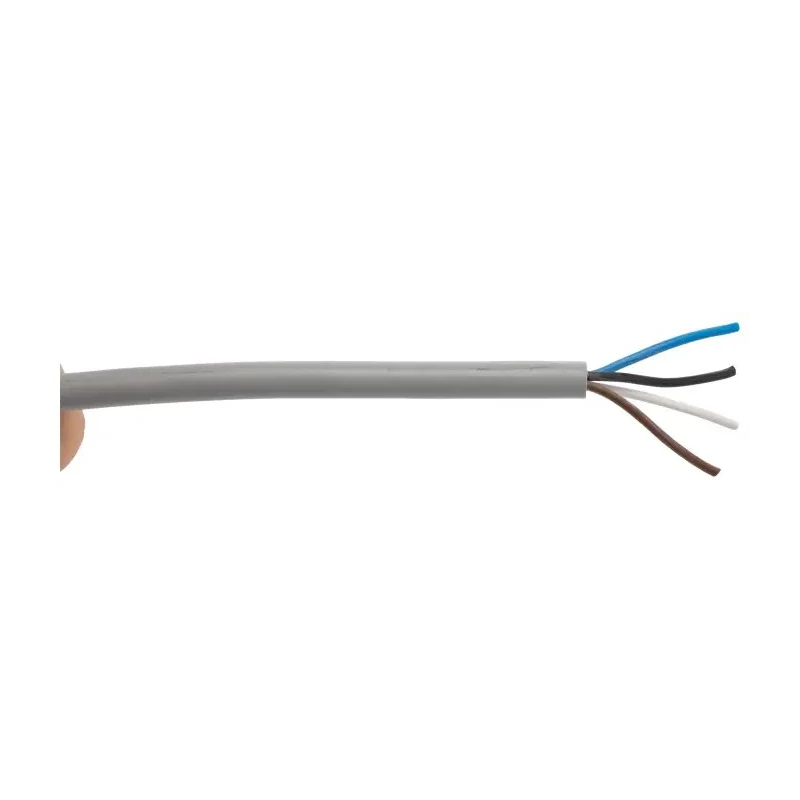

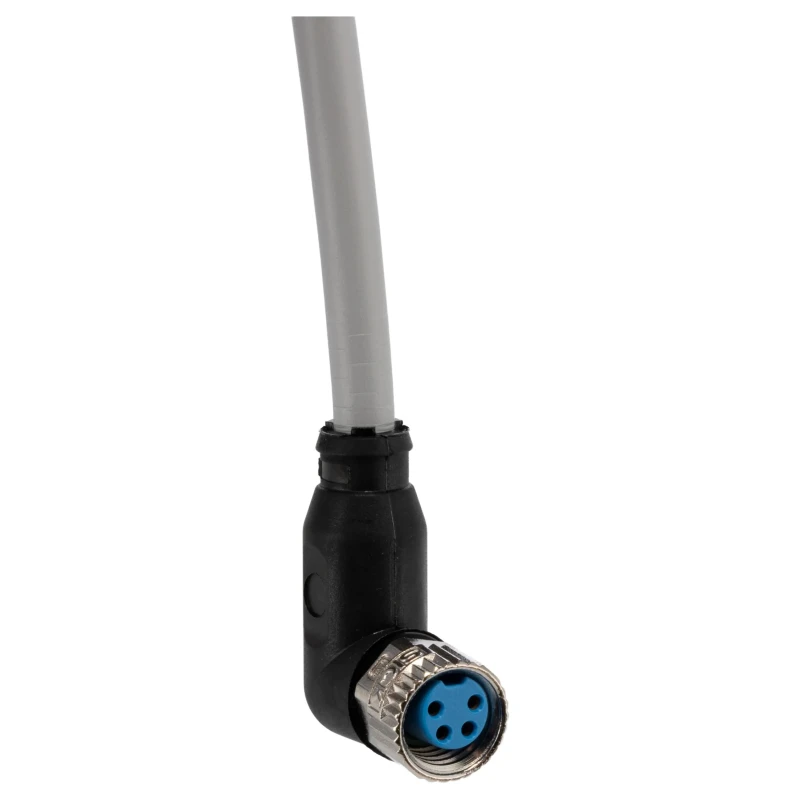

The cable consists of four 0.25 mm² conductors with PVC insulation and an overall diameter of approximately 4.8 mm. The angled female M8 connector includes a zinc die-cast, nickel-plated screw-type locking nut with a recommended tightening torque of 0.4 Nm for secure connections.

This sensor actuator cable is UL authorised and meets flame-retardant requirements per UL1581 VW1 and CSA FT1 standards, ensuring safety in industrial applications. It is suitable for numerous applications, including proximity sensor wiring on conveyors, robotic end-effector signal wiring, machine vision trigger wiring in wash-down zones, and connecting distributed sensors in process plants.

10 m length supports extended machine-to-sensor routing. Female angled M8 connector with screw-type locking nut ensures secure connections. Grey PVC jacket offers chemical resistance and flexibility. Four contacts enable 4-pin signal distribution suitable for sensor and actuator signaling.

Rated for 60V voltage and 4A current capacity for low-voltage sensor circuits. IP67 rated protection for harsh and wash-down environments. Cable suitable for flexible use from −5°C to +80°C and stationary use from −30°C to +80°C.

Connector head rated for temperature range of −25°C to +85°C. UL authorised assembly with flame-retardant properties per UL1581 VW1 / CSA FT1. Ideal for proximity sensors, robotic actuators, machine vision triggers, and distributed sensor installations.

This cable is an essential component for industrial automation applications demanding reliable sensor and actuator connections. Explore the full range of sensor and actuator cables available at EnvMart for your industrial wiring needs.
