SICK Female 4 Way M12 to Unterminated Sensor Actuator Cable 10 m Grey PVC Jacket YG2A14-100VB3XLEAX

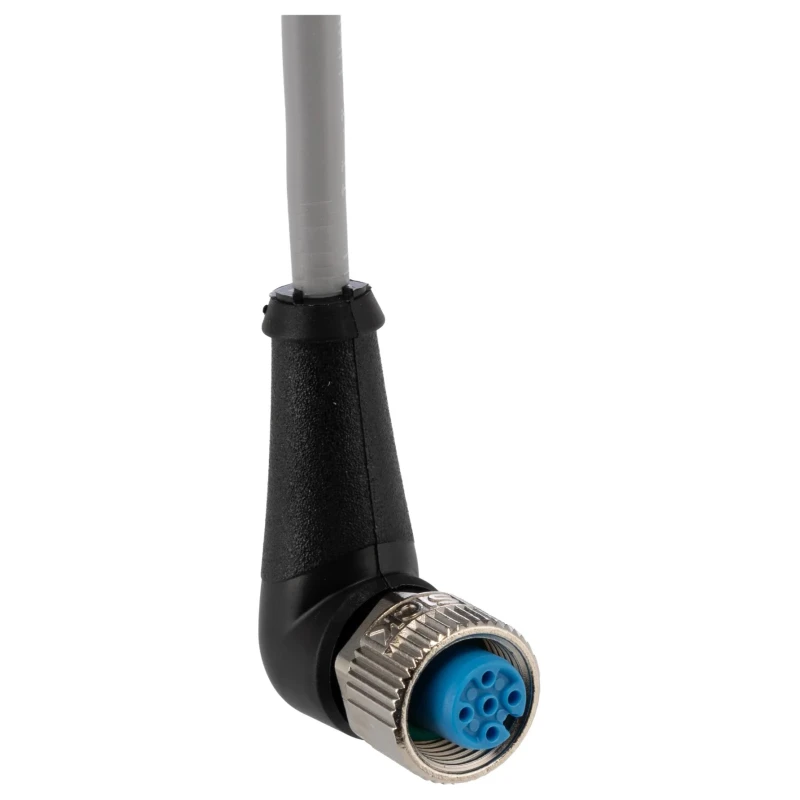

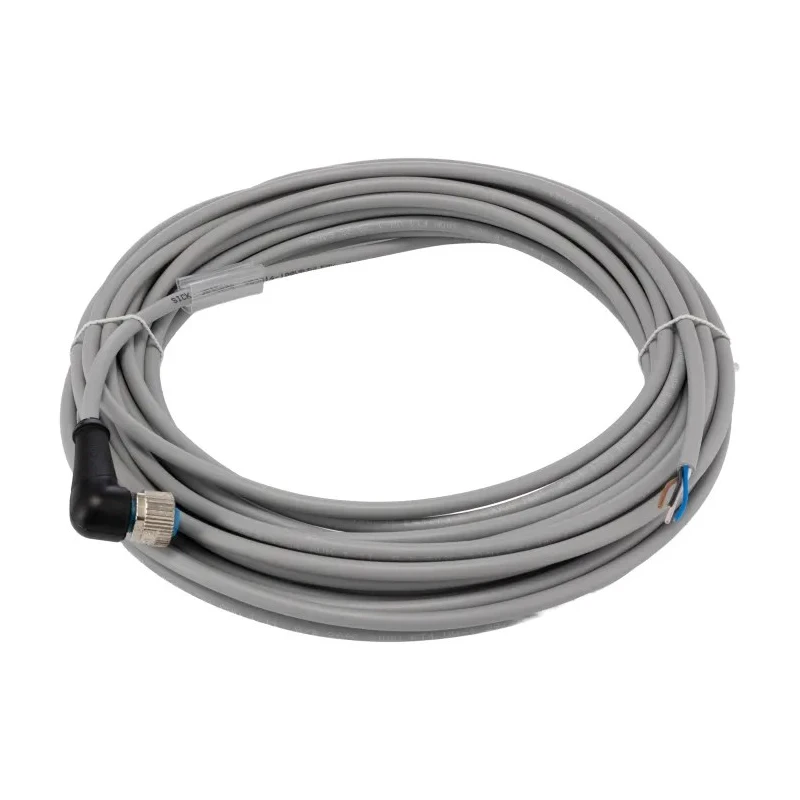

SICK YG2A14-100VB3XLEAX female 4 way M12 to unterminated sensor actuator cable is a 10 m long industrial-grade cable designed for reliable connection between sensors and actuators in automated systems. It features a 4-pin M12 female connector interfacing to flying leads, which allows flexible field wiring with direct termination options.

The cable has a robust grey polyvinyl chloride jacket that provides excellent resistance against chemicals and abrasion, ensuring durability in industrial zones. Its IP65, IP66K, and IP67 ratings guarantee protection from dust and powerful water jets, making it suitable for harsh environments including washdown areas.

Electrically, the cable supports a voltage rating of 250V and a current capacity of 4A, adequately serving typical sensor and actuator load requirements. The working temperature range from −30 °C to +80 °C makes it ideal for stationary installations in factory automation, conveyor systems, and pick-and-place machinery.

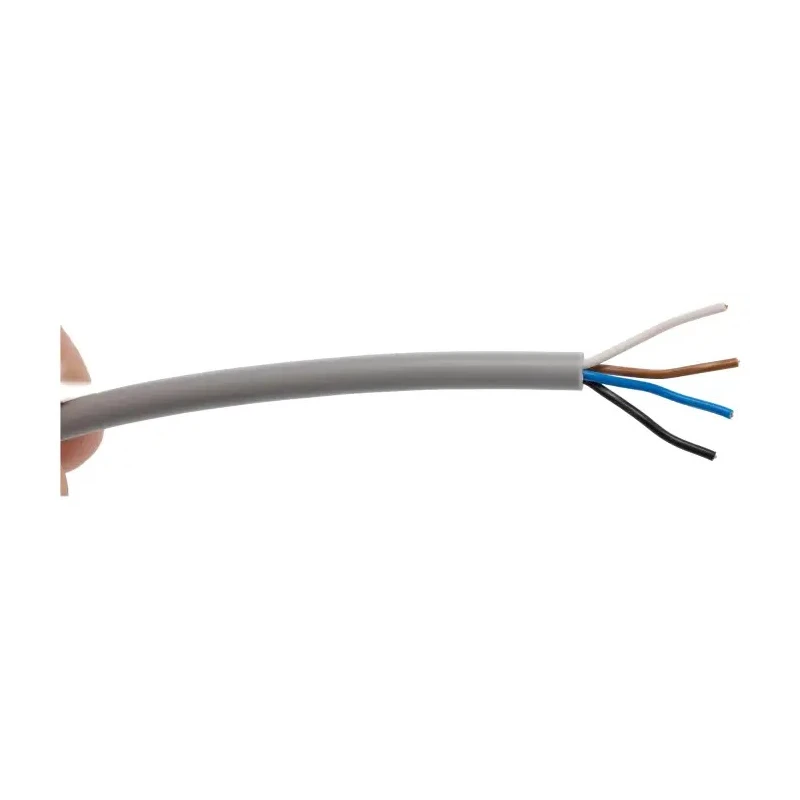

The unterminated flying leads facilitate screw or crimp termination to terminal blocks or custom harnesses, providing adaptable installation options for retrofit and new applications. The connector housing is made from thermoplastic polyurethane (TPU), enhanced with a nickel-plated zinc die-cast locking nut and fluorocarbon rubber (FKM) sealing elements to endure industrial mechanical flexing and ensure a tight seal.

The cable assembly is unshielded and contains four conductors, each with a cross-sectional area of 0.34 mm². The rated impulse withstand voltage is 2.5 kV, with insulation resistance of approximately 100 MΩ and specific contact resistance near 30 mΩ, ensuring signal integrity and safety.

The 4-pin M12 female connector provides secure low-voltage connections for sensors and actuators. The 10 m cable length allows extended reach without splicing for flexible installations. Durable grey polyvinyl chloride jacket resists chemicals and abrasion in harsh environments.

The cable is rated for IP65, IP66K and IP67, suitable for washdown and dust protection. Supports current capacity of 4A and voltage rating up to 250V for typical industrial loads. Working temperature range from −30 °C to +80 °C for reliable performance.

Unterminated flying leads enable versatile termination methods including screw or crimp to terminal blocks. TPU connector housing with nickel-plated locking nut and FKM sealing for enhanced durability. Unshielded cable with four 0.34 mm² conductors suitable for sensor-actuator wiring.

Ideal for factory automation, conveyor wiring, pick-and-place, and machine I/O connections requiring free-end termination.

This Sensor Actuator Cable is widely used in industrial automation, electrical, manufacturing, and water treatment applications where robust, flexible connection to sensors and actuators is necessary. Its IP rating and material construction ensure long service life under demanding environmental conditions.
