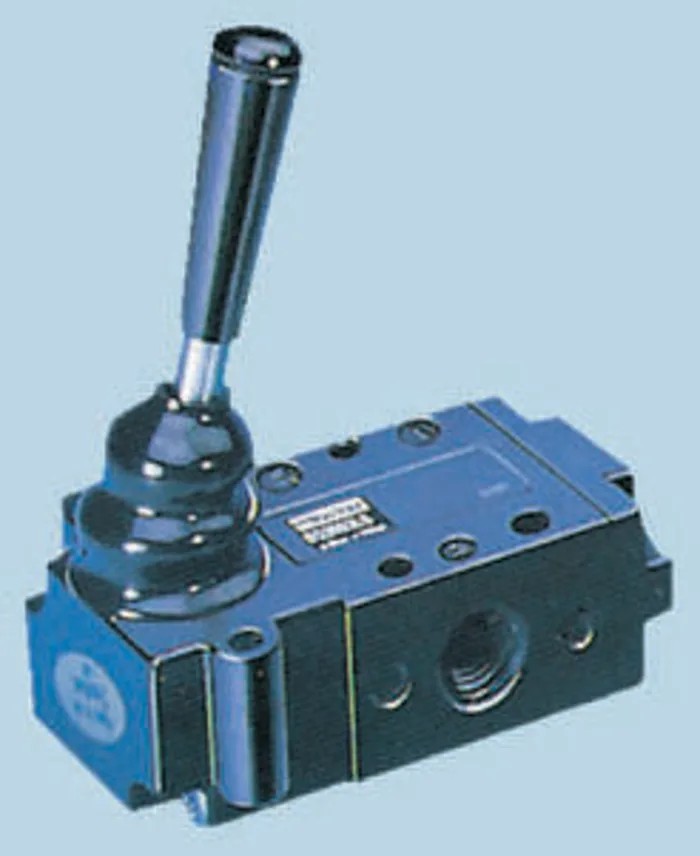

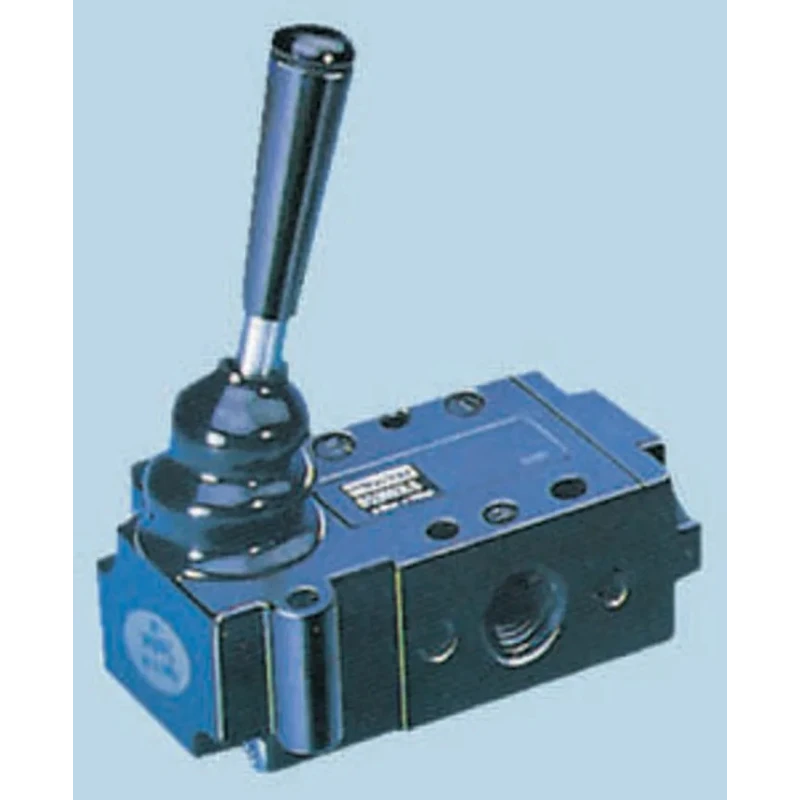

Parker Lever Pneumatic Manual Control Valve B53 Series G 1/4 Port, 3/2 Valve Function, Die Cast Zinc Body B53003LS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Parker |
| Body Material | Die Cast Zinc |
| Maximum Operating Pressure | 10 bar |
| Height | 100mm |
| Length | 82mm |
| Model | B53003LS |
| Width | 42mm |
| Series | B53 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +80°C |
| Thread Size | 1/4 in |
| Port Size | G 1/4 |
| Minimum Operating Temperature | -10°C |
| Maximum Flow Rate | 1740L/min |
| Control Mechanism | Lever |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
| Control Button/Switch Colour | Black |
| G1/4 3 port lever spring valveBrand | Parker |
Key Features
- Operates with maximum pressure of 10 bar ensuring effective flow control.
- Constructed from durable die cast zinc for long service life.
- Features G 1/4 port size and G connection thread standard.
- Valve function configured as 3/2 with three ports and lever control mechanism.
- Black control button/switch color enhances visibility and operation.
- Maximum flow rate of 1740 L/min supports high-volume pneumatic systems.
- Suitable for operating temperatures ranging from -10°C to +80°C.
- Compact dimensions with length 82 mm, width 42 mm, and height 100 mm.
Product Description
Parker B53003LS pneumatic manual control valve from the B53 series is a lever-operated 3/2 valve designed for precise pneumatic fluid power control in industrial environments. This valve features a robust die cast zinc body, providing durability and resistance to wear in demanding applications.
It supports a maximum operating pressure of 10 bar and a maximum flow rate of 1740 L/min, making it suitable for a wide range of pneumatic systems including manufacturing equipment, automation, and process controls.
The valve's compact size with dimensions 82 mm in length, 42 mm width, and 100 mm height makes it versatile for installations with space constraints. It operates effectively within a temperature range of -10°C to +80°C, ensuring reliable performance across varied environments.
The lever control and black button provide easy manual actuation, while the stainless steel spool ensures long service life and trouble-free operation. Viton™ seals are fitted as standard for superior sealing performance, suitable for both positive pressure and vacuum line applications.
Maximum operating pressure: 10 bar. Flow rate: 1740 L/min. Body material: Die cast zinc. Valve function: 3/2 with lever control. Operating temperature range: -10°C to +80°C. Port size: G 1/4.
This valve is widely applicable in pneumatic control systems in industrial manufacturing, automation, fluid power tools, and other mechanical systems requiring manual pneumatic valve operation.
Explore Parker Pneumatic Manual Control Valves for high reliability and performance in your industrial valve needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the B53003LS valve is 10 bar.
This model has a maximum flow rate of 1740 L/min, suitable for high-volume pneumatic systems.
It operates effectively within a temperature range of -10°C to +80°C.
The valve has compact dimensions of 82 mm in length, 42 mm in width, and 100 mm in height.
It features a lever control mechanism for manual operation.
This valve is configured with three ports, functioning as a 3/2 valve.
The body of this valve is made from durable die cast zinc.
The valve features a G connection thread standard with a port size of G 1/4.
The control button on this valve is black, enhancing visibility during operation.
It is suitable for pneumatic control systems in industrial manufacturing, automation, and fluid power tools.
The valve is fitted with Viton™ seals for superior sealing performance in both positive pressure and vacuum line applications.
The country of origin for this valve is India.
