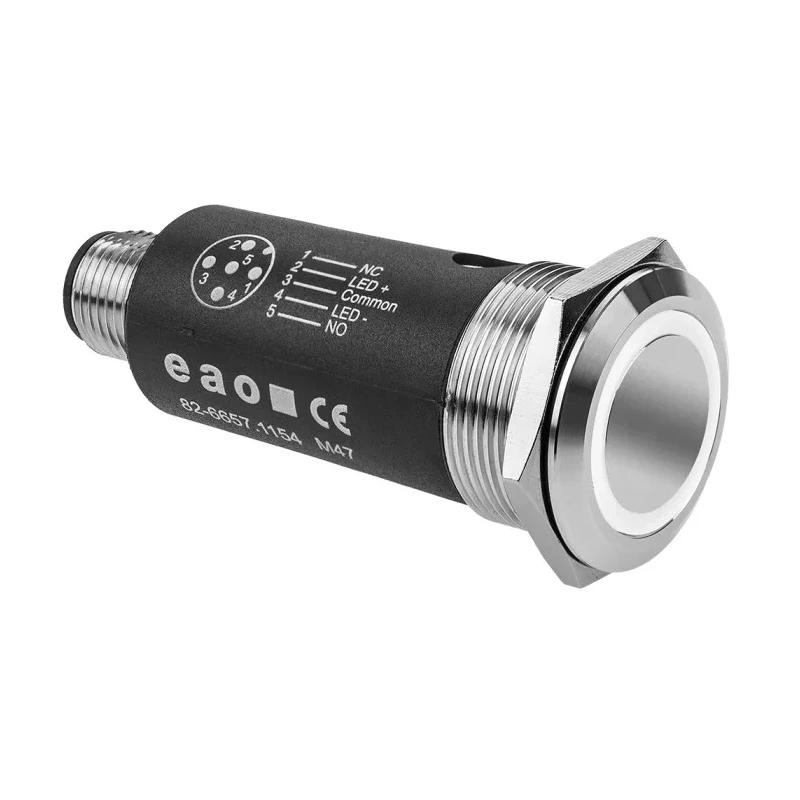

EAO Illuminated Push Button, Momentary, Panel Mount, 22 mm Cutout, SPDT, White LED, IP65 IP67, 35 V dc, 82-6657.1154



Category Push Button Switches & Components Brand EAO Condition New

Specifications

Country of Origin	China
Brand	EAO
Length	62mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	22 mm
Terminal type	Screw
Standards/Approvals	RoHS
LED Colour	White
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	35V dc
Actuator Style	Round
Switch Contact Current	500mA
Contact AC Voltage	35V ac

Key Features

The actuator is silver-colored and features a round style.
Equipped with a white LED for illumination, suitable for clear visibility.
Designed for robust use with stainless steel 316L front material.
IP65 and IP67 ratings ensure strong ingress protection against dust and water.
Operates reliably within a temperature range from -30°C to 70°C.
Supports both 35V dc and 35V ac contact voltages with a 500mA contact current.
Terminals feature screw type connections for secure wiring.
The length of the push button head is 62 mm, allowing easy panel mounting.

Product Description

EAO 82-6657.1154 Illuminated Push Button is a high-quality momentary panel mount push button switch designed for industrial and automation applications. Featuring a 22 mm panel cutout, this push button is equipped with a silver actuator and round style for ergonomic operation.

The switch utilizes SPDT (single pole double throw) contacts with screw terminal connections for secure installation. Illumination is provided by a white LED, enhancing operator visibility and status indication under various lighting conditions.

Constructed with stainless steel 316L front material, the button ensures robustness and resistance to wear in demanding industrial environments. The unit is rated IP65 and IP67, offering excellent protection against dust ingress and water immersion, making it suitable for harsh environments such as manufacturing floors, automation panels, or outdoor control stations.

The device supports a contact DC and AC voltage of up to 35 V and a contact current rating of 500 mA, enabling it to operate safely within typical control circuit requirements. It functions reliably over a wide ambient temperature range from -30°C to 70°C, adapting to diverse operating conditions.

Certified under RoHS standards, this push button contributes to environmentally responsible system designs. The compact 62 mm length facilitates easy integration into control panels and automation setups.

The actuator is silver-colored with a round style for effective human interaction. Illuminated with white LED for enhanced visibility and status monitoring. Robust stainless steel 316L construction guarantees durability.

High ingress protection with IP65 and IP67 ratings for dust and water resistance. Wide operating temperature range from -30°C to 70°C. Supports 35V dc/ac voltage and contact current of 500 mA for industrial compatibility.

Screw terminal connections for reliable electrical contacts. Compliant with RoHS environmental standards. Manufactured in China with stringent quality controls.

This EAO illuminated push button is ideal for use in industrial automation, machinery controls, HVAC systems, and electrical panels where reliable and visible user input devices are critical.
