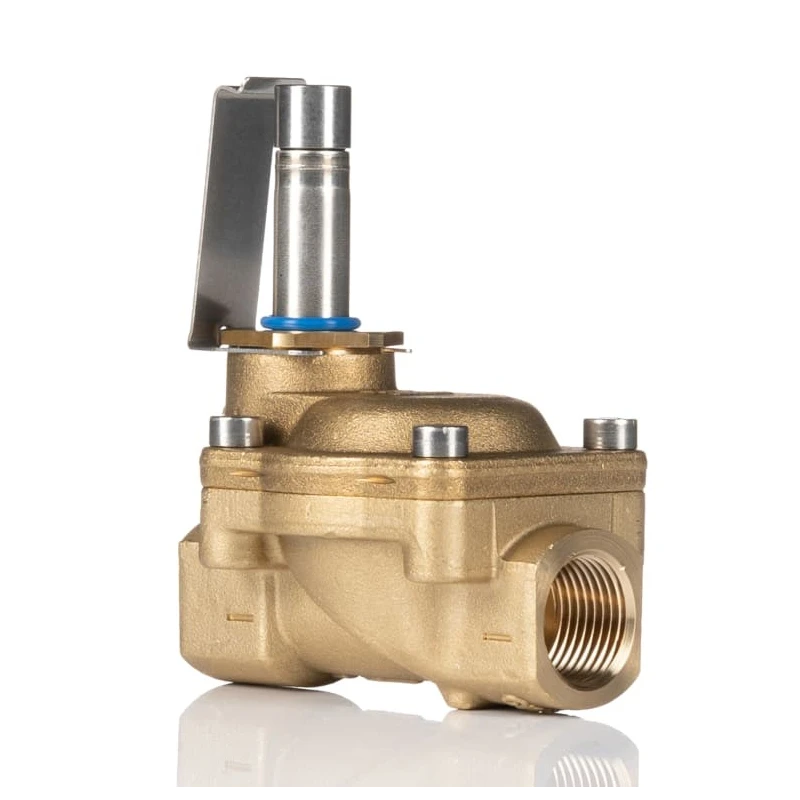

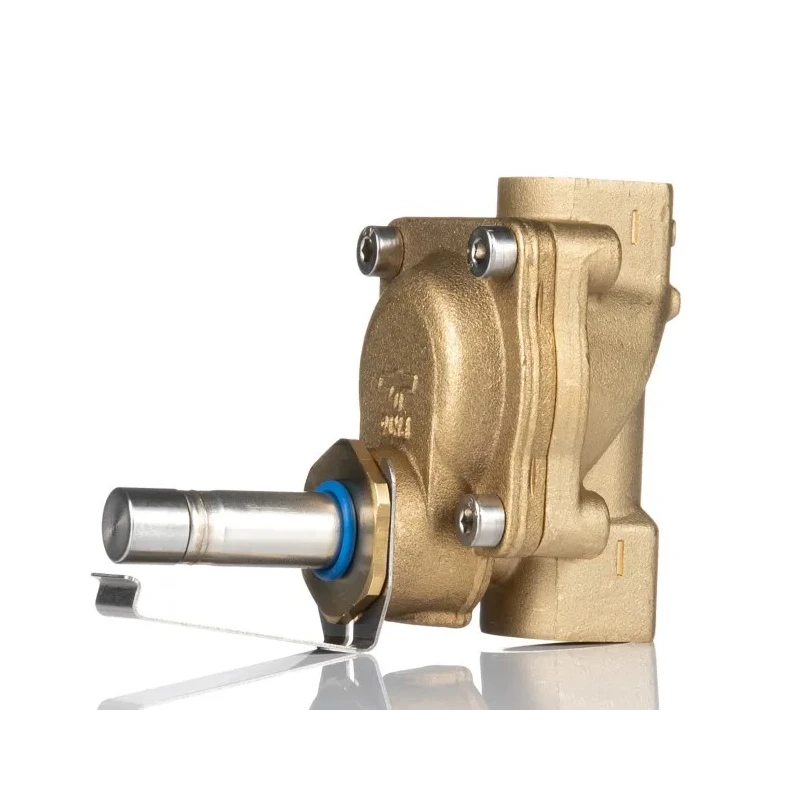

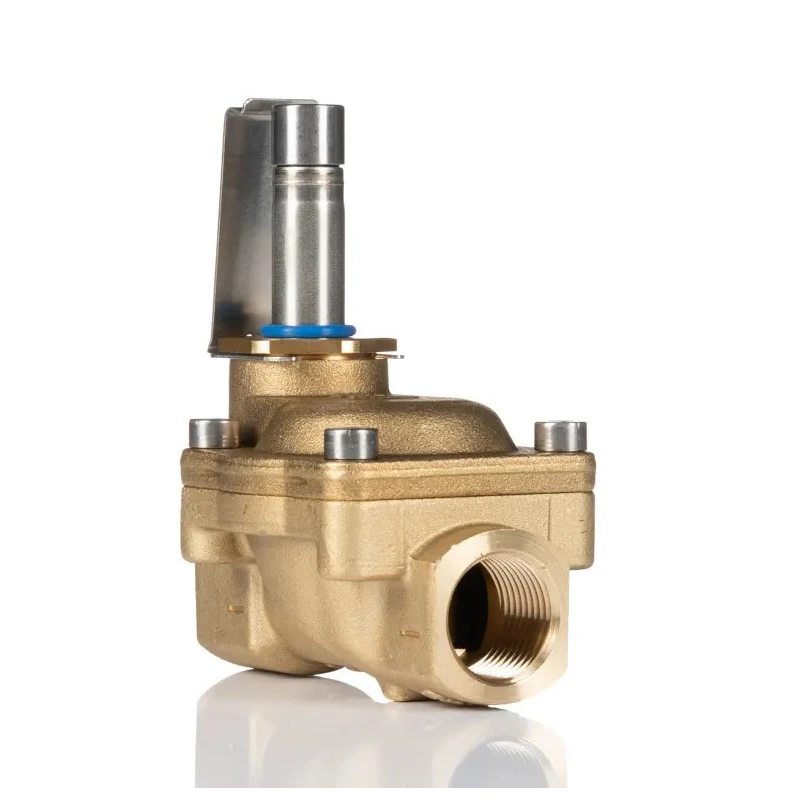

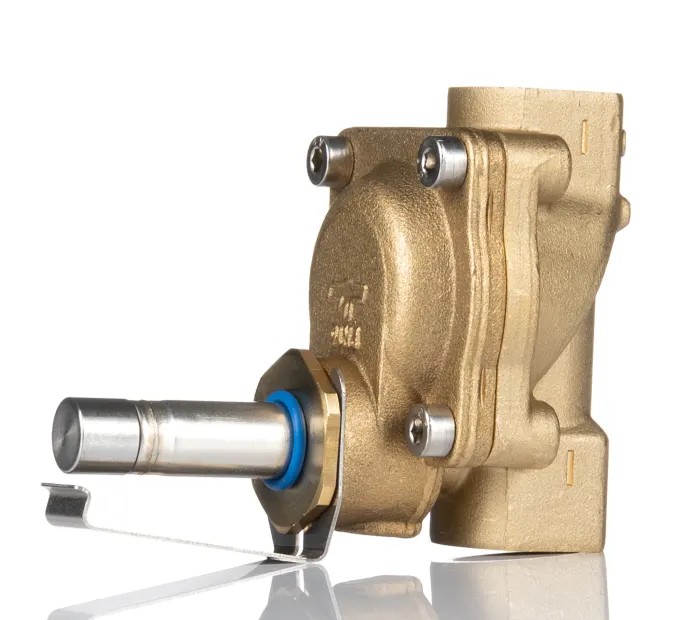

Buschjost Solenoid Pilot Valve 3/8 in Push-in Port, Brass Body, NC Valve Function, 16 bar Max Operating 8240100.9100.00000
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Buschjost |
| Body Material | Brass |
| Maximum Operating Pressure | 16 bar |
| Height | 80mm |
| Length | 60mm |
| Width | 44mm |
| Mount Type | Manifold |
| Series | 82400 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 3/8 in |
| Port Type | Push-in |
| Number of Positions | 2 |
| Port Size | 3/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 3m³/h |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0.1bar |
| Valve Function | NC |
| Maximum Pilot Pressure | 10bar |
| Port Gender | Female |
Key Features
- The valve is designed with a compact size of 80mm height, 60mm length, and 44mm width.
- Corrosion-resistant stainless steel components ensure long service life.
- Suitable for controlling neutral gases and liquids in industrial applications.
- The valve operates within -10°C to +50°C ambient temperature range and can handle fluids from -10°C to +90°C.
- Features a click-on fitting system enabling easy solenoid replacement without special tools.
- Designed for manifold mounting with push-in port type connections and G-thread standard.
- Maximum flow rate capability is up to 3 m³/h for versatile process use.
- Valve function is NC (normally closed) with spring return to ensure shut tight on power failure.
Product Description
Buschjost 8240100.9100.00000 Solenoid Pilot Valve is engineered to provide reliable control of neutral gases and liquids within industrial piping systems. This solenoid pilot valve features a 3/8 inch push-in port connection with a G-thread standard, housed in a robust brass body to withstand demanding operating conditions.
Designed as a 2/2-way seat valve, it offers two ports and two switching positions for controlled flow regulation. The valve function is normally closed (NC) with spring return, providing fail-safe shutoff in the event of power loss, vital for process safety and automation systems.
Its compact dimensions of 80mm height, 60mm length, and 44mm width make it suitable for installations with limited space. The corrosion-resistant stainless steel components contribute to a durable valve life, while the nitrile rubber (NBR) seals ensure reliable sealing performance.
The valve supports a maximum operating pressure of 16 bar and can manage flow rates up to 3 cubic meters per hour. It operates effectively within a minimum ambient temperature of -10°C up to a maximum of 50°C, and fluid temperature range between -10°C and +90°C, accommodating a wide range of industrial fluids.
The manifold mount type and push-in port style enable quick and secure installations. A convenient click-on fitting system permits easy removal and replacement of the solenoid coil without the need for specialized tools, reducing downtime and maintenance effort.
Typical application areas include factory automation, process control, and automotive industry, where precision flow control and durability are essential. This solenoid valve is manufactured in Germany under rigorous quality standards, ensuring premium performance and reliability.
The valve includes stainless steel components for corrosion resistance. Compact size suitable for small installation spaces. Click-on fitting system for easy solenoid replacement. Supports maximum operating pressure of 16 bar.
Operates in ambient temperatures from -10°C to +50°C. Handles fluid temperatures between -10°C and +90°C. Manifold mount for secure and versatile installation. Maximum flow rate of 3 m³/h for industrial fluid control. Normally closed valve function with spring return for fail-safe operation.
Ideal for use in factory automation, process control, and automotive industries. Explore more Pneumatic Solenoid Valves and related industrial valves at EnvMart to optimize your fluid control systems with trusted Buschjost quality products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this solenoid pilot valve is 16 bar.
This model has dimensions of 80mm in height, 60mm in length, and 44mm in width.
The valve function is normally closed (NC) with a spring return, ensuring shut tight on power failure.
It can handle a maximum flow rate of up to 3 cubic meters per hour (3 m³/h).
This unit operates effectively within an ambient temperature range of -10°C to +50°C.
It is designed for controlling neutral gases and liquids in industrial applications.
The valve features nitrile rubber (NBR) seals for reliable sealing performance.
This model is designed for manifold mounting with push-in port type connections.
The valve has a connection thread standard of G.
The minimum operating temperature for this solenoid pilot valve is -10°C.
The actuation type for this valve is solenoid.
This valve has 2 ports and 2 switching positions for controlled flow regulation.
