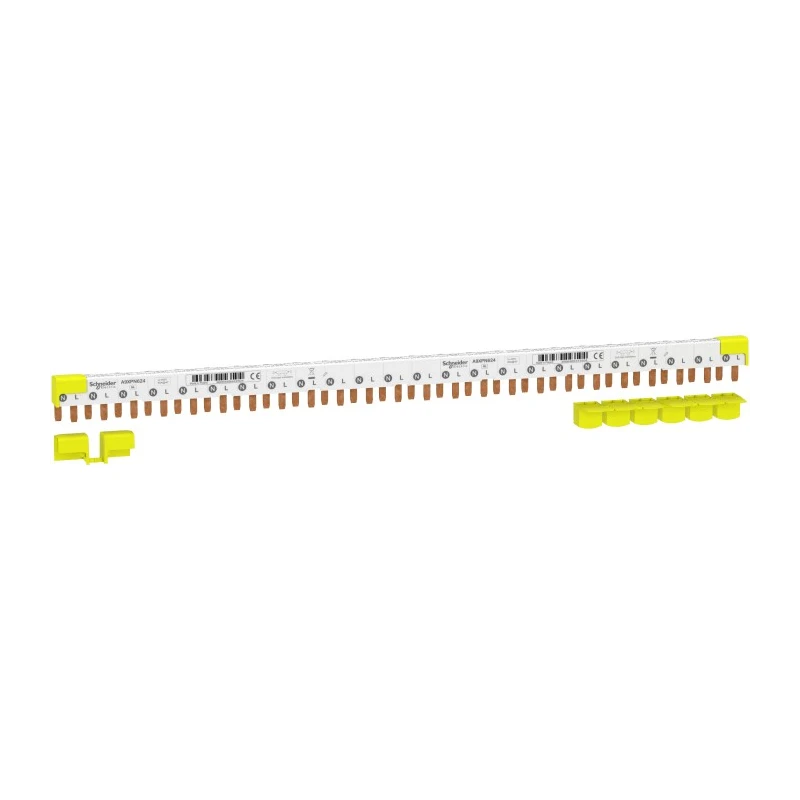

Schneider Electric Acti9 Acti9 iDT40 1 Phase Busbar, 9 mm Pitch A9XPN624

Schneider Electric A9XPN624 is a high-quality 1 Phase Busbar from the Acti9 iDT40 series, designed with a 9 mm pitch for precise electrical connections. This busbar is ideal for electrical distribution in industrial and commercial applications, providing reliable and safe operation with a rated current of 80 A at 40 °C and rated voltage of 230 V AC Phase/Neutral.

The busbar consists of 24 modules configured as 1 way per pole (1P+N), ensuring efficient space utilization in electrical panels. The 9 mm connection pitch between phase and neutral enables compatibility with a wide range of modular circuit breakers. The product’s insulated design in white color enhances safety and reduces risk of electrical faults.

Designed to meet EN/IEC 60439-1 standards, it guarantees conformity with international safety and performance requirements. The rated insulation voltage is 400 V AC with an impulse withstand voltage of 4 kV, allowing it to withstand transient electrical stresses.

Mounting in a horizontal orientation with tunnel type terminals suitable for top installation, the busbar facilitates easy and secure connection management in electrical enclosures. Its compact dimensions of 434 mm width, 32 mm height, and 27 mm depth allow for efficient integration within control panels and distribution boards.

Manufactured in Poland, this Schneider Electric busbar promotes sustainability with its Better World claim for designed disassembly, enabling easier recycling and material reuse. The product is part of Schneider Electric’s commitment to delivering efficient and sustainable electrical infrastructure solutions.

Part of Acti9 iDT40 series with 1 electrical phase and 24 modular count. Rated operational current: 80 A (at 40 °C) and voltage: 230 V AC Ph/N. Insulated white busbar with 9 mm pitch and 18 mm inter-way distance. Conforms to EN/IEC 60439-1 standards with 400 V insulation voltage.

Horizontal mounting on tunnel type terminals with compact dimensions. Better World product designed for disassembly promoting sustainability.

Ideal for electrical distribution in industrial, commercial, and manufacturing settings, the Schneider Electric A9XPN624 busbar ensures safe, reliable, and efficient connectivity. Explore more in the Busbar category on EnvMart for compatible circuit breakers and accessories.
