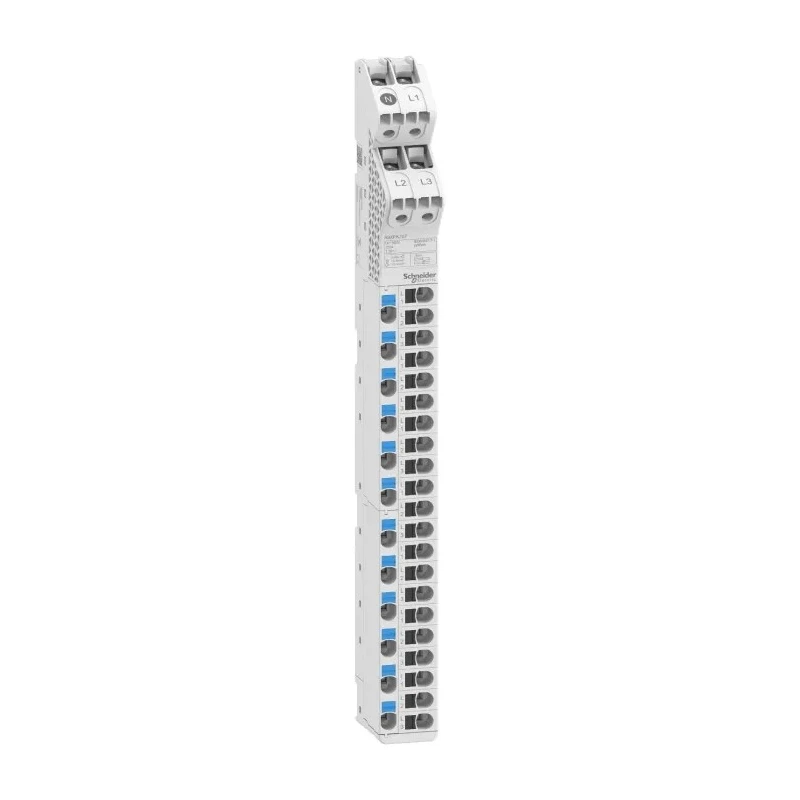

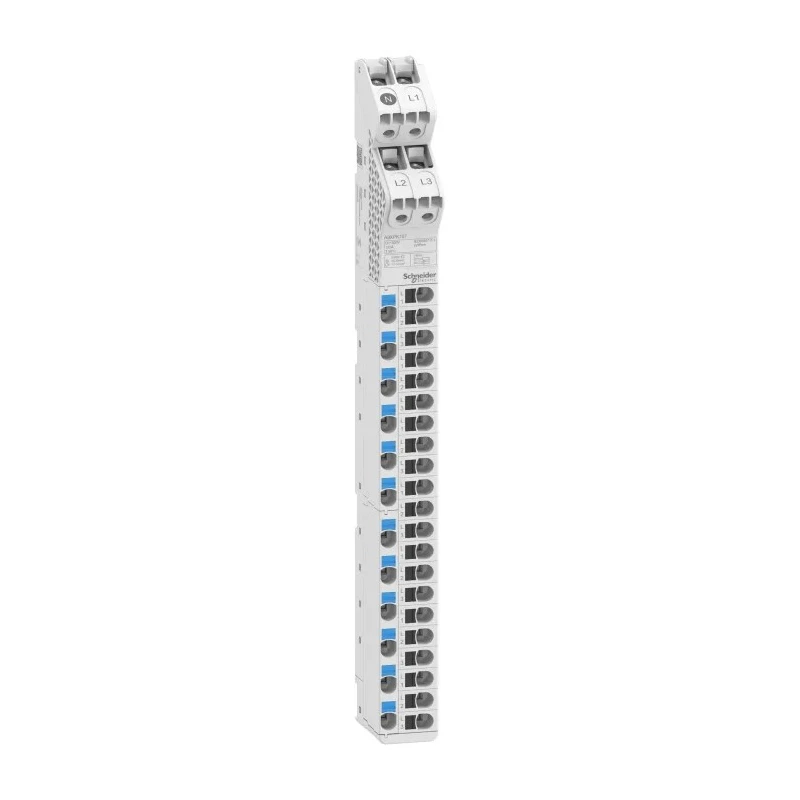

Schneider Electric Acti9 1 Phase Busbar 9 mm Pitch Rated Current 125 A

Schneider Electric A9XPK707 1 Phase Busbar with 9 mm pitch is engineered for efficient and reliable electrical distribution in industrial and commercial applications. This product is part of the Acti9 series, designed to handle a rated current of 125 A and an operating voltage of 250/440 VAC suitable for single-phase AC network frequencies of 50/60 Hz.

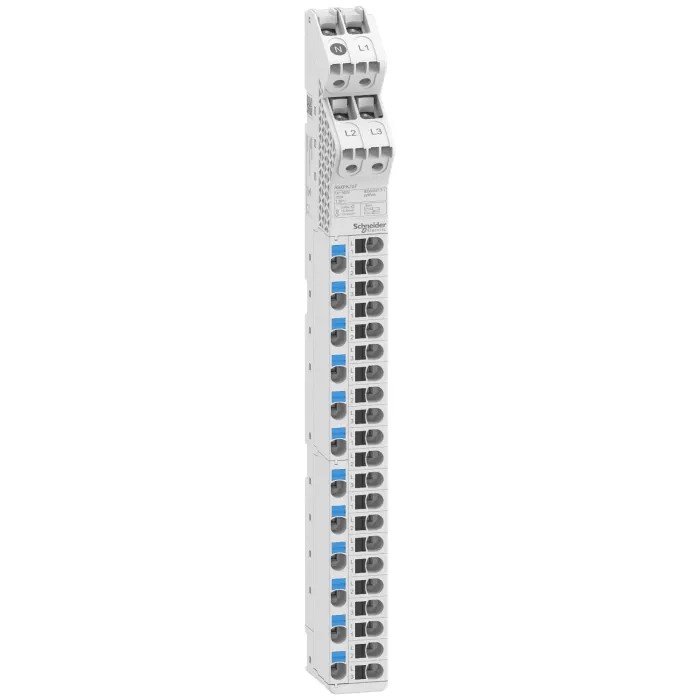

The busbar offers excellent insulation with a rated insulation voltage of 500 V and a rated impulse withstand voltage of 6 kV, ensuring dependable protection and safety in demanding electrical environments. It features a vertical distribution block design (Acti9 VDIS) with 33 connection points allowing flexible and organized wiring configurations.

The unit includes one terminal block equipped with 33 outgoes, distributed as 7 holes per phase and 12 holes for the neutral connection, facilitating comprehensive connectivity for electrical systems. Its compact dimensions of 408 mm height, 71.5 mm depth, and 40.5 mm width make it suitable for installation in tight electrical cabinets while maintaining accessibility for maintenance and expansion.

Manufactured in China under Schneider Electric's stringent quality controls, this busbar meets industrial standards for performance and reliability. Weighing 1.14 kg, it balances durability with ease of handling and installation.

This 1 phase busbar system from Schneider Electric is ideal for use in electrical distribution panels across industrial, commercial, and infrastructure projects. Its 9 mm pitch makes it compatible with Acti9 modular components ensuring seamless integration.

Designed to withstand high voltage surges with rated insulation and impulse withstand ratings enhancing safety. The 33 connection points facilitate multiple wiring setups for complex electrical requirements. Compact size and organized terminal blocks simplify installation in constrained spaces.

Manufactured to meet high-quality standards, ensuring durability and long service life. It supports 50/60 Hz network frequency suitable for global applications. Explore a wide range of Busbars and circuit protection accessories by Schneider Electric on EnvMart for your industrial and commercial electrical needs.
