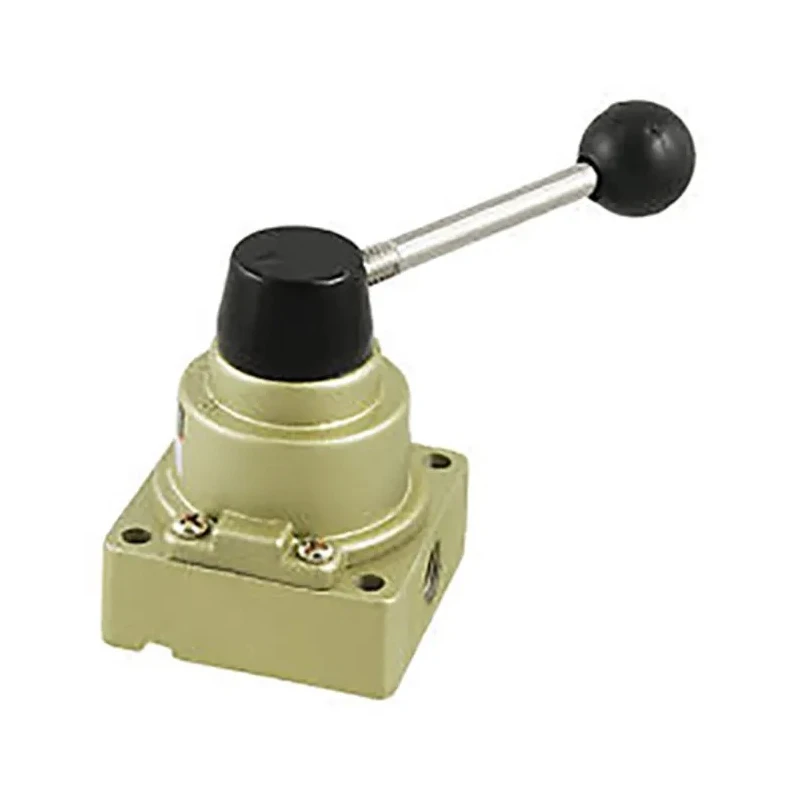

SMC Lever Pneumatic Manual Control Valve VH200 Series, NPT Rc 1/4, 4/3 Valve Function, 1 Mpa Max Pressure

SMC VH201-02 Lever Pneumatic Manual Control Valve VH200 Series is a precision-engineered compact rotary hand valve used for manual directional control in pneumatic systems. It features an ergonomic lever control mechanism which provides easy and reliable valve operation suitable for diverse industrial applications.

Constructed with a robust die-cast aluminium body, the valve offers excellent durability combined with resistance to corrosion and mechanical wear. The valve includes a red control button/switch for high visibility and ease of operation in busy industrial environments.

This valve supports NPT thread standards with a Rc 1/4 port sizing, making it compatible with a wide range of pneumatic piping and fittings. It functions as a 4/3 valve, allowing versatile flow control for different pneumatic circuit requirements.

The VH201-02 model boasts a maximum operating pressure of 1 Mpa and proof pressure of 1.5 Mpa, ensuring safe functioning under demanding pressure conditions. The operating temperature range from -5°C up to +60°C enables use in varied climatic and environmental conditions.

With a maximum flow rate capacity of 9123 L/min, this valve suits high flow pneumatic systems, maintaining efficiency and responsiveness. Its engineering includes a 90° operating angle for precise manual control and a self-cleaning wiping action to reduce contamination and extend valve service life.

This valve is adaptable for body or panel mounting, enabling straightforward integration into pneumatic control panels or machinery. Its compact size, with a width of 63 mm and three ports, makes it suitable for compact installations requiring reliable manual control.

Operates with a lever control mechanism for precise manual actuation. Compatible with NPT thread standards and Rc 1/4 port size. Maximum operating pressure of 1 Mpa ensures reliable performance. Die-cast aluminium body material provides durability and corrosion resistance.

Maximum flow rate of 9123 L/min suitable for high flow applications. Operating temperature ranges from -5°C to +60°C for versatile industrial use. Features a bright red control button/switch for easy visibility. Proof pressure is 1.5 MPa with a 90° operating angle for efficient control.

Designed for both body-mounted and panel-mounted installations. Self-cleaning wiping action enhances valve longevity and performance.

This valve is ideal for industrial pneumatic systems including manufacturing automation, fluid power control, laboratory pneumatic setups, and HVAC pneumatic controls. Its robust construction and reliable manual operation meet the stringent demands of modern industrial environments.

Explore the comprehensive range of Pneumatic Manual Control Valves at EnvMart for your precise industrial requirements and benefit from trusted SMC quality and performance.
