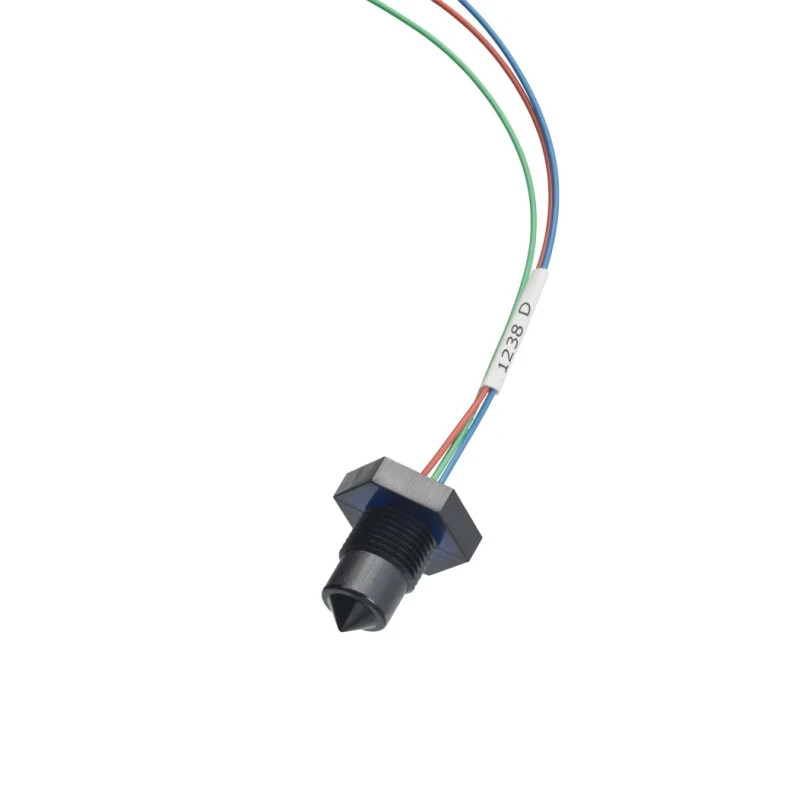

Cynergy3 Optical Sensor Level Switch Chassis Mount Polysulfone Housing PTFE Gasket 28V DC 1A Maximum Current OLS210D3L24-003
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Model | OLS210D3L24-003 |
| Cable Length | 250mm |
| Mount Type | Chassis Mount |
| Housing Material | Polysulfone |
| Series | OLS2 |
| Maximum Operating Temperature | 125°C |
| Maximum Pressure | 7bar |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 1A |
| Device Type | Optical Sensor |
| Maximum dc Voltage | 28V dc |
| Gasket Material | Polytetrafluoroethylene |
Key Features
- Measures liquid levels using an optical sensor with infrared emitter detection.
- Chassis mount type with M12 x 1 thread size for external tank mounting.
- Operating temperature range from -40°C to 125°C for diverse environments.
- Maximum DC voltage rating of 28 V and low current of 1 amp for energy efficiency.
- Maximum operating pressure of 7 bar suitable for low-pressure systems.
- Cable length of 250 mm with PTFE sheath for chemical and heat resistance.
- Housing material of robust polysulfone for corrosion and heat resistance.
- Ideal for applications including water catchment, marine, and brake fluid containers.
Product Description
Cynergy3 OLS210D3L24-003 optical sensor level switch is a high-performance liquid level sensor designed for chassis mount installation. It features a chassis mounting system with an M12 x 1 threaded connection, enabling easy external mounting on tanks without entry access. The sensor housing is made of durable polysulfone, a polymer resistant to corrosion, heat, and chemicals, ensuring long-lasting service life even in harsh environments.
The optical sensor technology detects liquid presence using an infrared emitter, toggling a switch when liquid levels move above or below the sensor. It supports a maximum DC voltage of 28 volts and operates efficiently at a low current rating of 1 amp. The sensor withstands temperatures ranging from -40°C to 125°C, making it suitable for both hot and cold environments.
This level switch can operate safely under pressures up to 7 bar, compatible with typical low-pressure liquid systems. The cable features a polytetrafluoroethylene (PTFE) sheath, providing excellent resistance to heat, chemical exposure, and mechanical impact. With a cable length of 250 mm, it offers convenient installation versatility.
Common industrial uses include water catchment areas, marine applications, brake fluid monitoring, and other liquid containment systems requiring robust and reliable level detection methods. The combination of polysulfone housing and PTFE gasket materials enhances durability in challenging environmental conditions.
This product is manufactured in China and supplied new. It complies with industrial quality standards but does not have specific hazardous area certification or additional approvals.
Measures liquid levels using infrared optical detection. Chassis mount design with M12 x 1 thread size. Polysulfone housing for corrosion and heat resistance. PTFE cable sheath for chemical, heat, and impact resistance. Operating temperature range −40°C to +125°C.
Maximum DC voltage: 28 V, current: 1 A. Maximum operating pressure of 7 bar. Cable length of 250 mm for flexible installation. Discover this and other reliable Level Sensors and optical sensor products in the EnvMart industrial and automation category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from -40°C to 125°C, making it suitable for both hot and cold environments.
It supports a maximum DC voltage rating of 28 volts, allowing for efficient operation in various applications.
The maximum current rating for this sensor is 1 amp, which contributes to its energy efficiency.
This model features a chassis mount design with an M12 x 1 threaded connection for easy external mounting on tanks.
It can operate safely under pressures up to 7 bar, making it suitable for low-pressure liquid systems.
The housing is made of polysulfone, while the gasket material is polytetrafluoroethylene (PTFE), providing resistance to chemicals and heat.
The cable length is 250 mm, offering flexibility for installation in various setups.
It is commonly used in applications such as water catchment areas, marine environments, and brake fluid monitoring.
It utilizes optical sensor technology with infrared emitter detection to toggle a switch based on liquid presence.
This model does not have specific hazardous area certification or additional approvals, but it complies with industrial quality standards.
It is manufactured in China and supplied new.
This level switch is part of the OLS2 series by Cynergy3.
