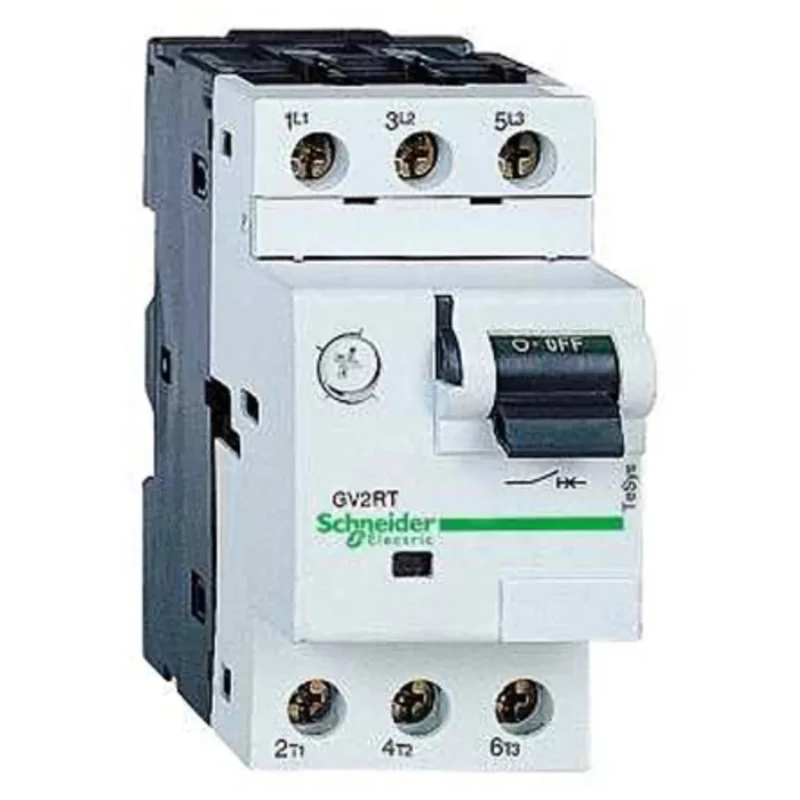

Schneider Electric Motor Protection Circuit Breaker 630mA, 1A, 690V, Thermal Magnetic, 3 Poles, TeSyS GV GV2RT05

Schneider Electric GV2RT05 Motor Protection Circuit Breaker is engineered for high starting current peak motor applications, delivering reliable thermal and magnetic protection in a compact and durable form factor. Rated at 1A/690V with a current rating capability of 630 mA to 1A, this 3-pole circuit breaker supports 0.25-0.37 kW motors at 400V.

The device is designed with a thermal-magnetic sensing system, providing rapid response to overcurrent situations with magnetic tripping set at twenty times nominal current for short-circuit protection. Its high breaking capacity (Icu) of 100 kA ensures secure interruption under fault conditions.

With manual operation via a rocker lever selector switch, the GV2RT05 allows dependable start-stop control rated for 100,000 AC-3 cycles. Installation is simplified via screw clamp terminals that guarantee solid electrical connections. The product is suitable also for 3-phase transformer protection.

Manufactured under stringent quality standards, the GV2RT05 adheres to multiple certifications such as IEC 60947-4-1, UL, CSA, CCC, ATEX, and other international norms, making it appropriate for industrial, laboratory, manufacturing, HVAC, and electrical automation applications. Its IP20 rating provides protection from solid object ingress while operating in ambient conditions ranging from -20°C to 60°C.

This Schneider Electric circuit breaker is included in the TeSyS GV series, recognized for efficient motor protection solutions. Its design supports sustainability goals, classified as a Better World product with features enabling disassembly and RoHS/REACH compliance.

Compact dimensions of 89 mm length, 44.5 mm width, and 78.5 mm depth facilitate integration into control panels and automation systems. The circuit breaker is made in France, reinforcing its reliability and manufacturing excellence.

Provides thermal-magnetic protection suitable for high peak starting currents. Rated for use with three-pole motor applications with a 3P configuration. High breaking capacity of 100 kA for enhanced safety and performance.

Designed for manual operation via a rocker lever selector switch with screw clamp terminals. Certified to multiple international standards including IEC, UL, CSA, CCC, and Marine classifications. Operates reliably within temperature ranges of -20°C to 60°C.

Compact design with dimensions of 89 mm length, 44.5 mm width, and 78.5 mm depth. IP20 rated for protection against solid objects but not water ingress. Green Premium compliant, designed for sustainability and disassembly.

Originates from France, guaranteeing quality manufacturing standards. Explore a range of Schneider Electric motor protection devices within the Electronics & Electricals category on EnvMart to suit diverse industrial and commercial needs.
