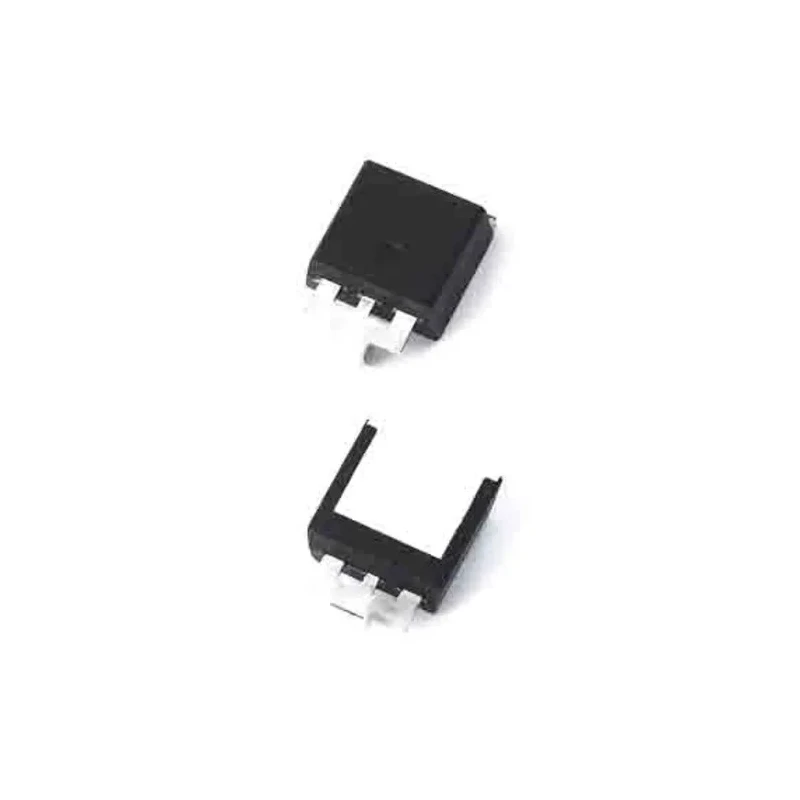

Littelfuse Uni-Directional TVS Diode 1-Pin Surface Mount TO-263 Package 1.8 kW Peak Pulse Power SLD6S36A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 4.78mm |
| Length | 15.24mm |
| Model | SLD6S36A |
| Width | 10.67mm |
| Mount Type | Surface |
| Series | SLD6S |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 1 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 58.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 40V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 1.8kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 79A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Designed for unidirectional transient voltage suppression to protect sensitive electronics.
- Single-element diode with 1-pin surface mount TO-263 package.
- Minimum breakdown voltage of 40 V ensures robust surge protection.
- Peak pulse power dissipation of 1.8 kW suitable for high energy transient events.
- Clamping voltage of 58.1 V limits voltage spikes effectively.
- Operating temperature ranges from -55°C to 150°C for diverse environments.
- Low incremental surge resistance and fast response time for reliable protection.
- Glass passivated chip junction enhances device durability.
Product Description
The Littelfuse SLD6S36A is a uni-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from voltage spikes caused by transient events such as lightning and switching surges. Featuring a single-element diode configuration in a durable surface mount TO-263 package, this component delivers high reliability and efficient surge suppression with a peak pulse power rating of 1.8 kW.
This device has a minimum breakdown voltage of 40 V and clamps voltage spikes to a maximum of 58.1 V, safeguarding sensitive semiconductor devices. It is engineered for operation across a wide temperature range from -55°C to 150°C, making it suitable for various industrial, automotive, and commercial applications.
The diode offers fast response time and low incremental surge resistance, enabling efficient absorption of transient currents without damage. The glass passivated chip junction enhances durability and high-temperature reflow compatibility simplifies assembly processes.
The Littelfuse SLD6S36A meets the demanding requirements of the automotive industry by complying with the AEC-Q101 standard, ensuring excellent performance in automotive electronic systems. Its compact TO-263 surface mount package with dimensions approximately 15.24 mm length, 10.67 mm width, and 4.78 mm height facilitates easy integration into printed circuit boards.
Typical use cases include overvoltage protection in power supply lines, circuit board protection in industrial electronics, automotive electronics surge protection, and ESD sensitive device safeguarding.
Designed for unidirectional transient voltage suppression to protect sensitive electronics. Single-element diode with 1-pin surface mount TO-263 package. Minimum breakdown voltage of 40 V ensures robust surge protection.
Peak pulse power dissipation of 1.8 kW suitable for high energy transient events. Clamping voltage of 58.1 V limits voltage spikes effectively. Operating temperature ranges from -55°C to 150°C for diverse environments. Low incremental surge resistance and fast response time for reliable protection.
Glass passivated chip junction enhances device durability. Compliant with automotive standard AEC-Q101 ensuring quality in automotive applications. Explore more semiconductor and TVS Diode products at EnvMart for your electronic and industrial protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse SLD6S36A has a peak pulse power dissipation of 1.8 kW, making it suitable for high energy transient events.
This unit has a clamping voltage of 58.1 V, which effectively limits voltage spikes.
The minimum breakdown voltage of this diode is 40 V, ensuring robust surge protection for sensitive electronics.
The dimensions of the TO-263 package are approximately 15.24 mm in length, 10.67 mm in width, and 4.78 mm in height.
It operates within a temperature range of -55°C to 150°C, making it suitable for diverse environments.
Yes, the Littelfuse SLD6S36A complies with the AEC-Q101 standard, ensuring quality performance in automotive applications.
This model features a single-element diode configuration, which is designed for unidirectional transient voltage suppression.
The maximum reverse stand-off voltage for the SLD6S36A is 24 V.
The maximum peak pulse current for this unit is 79 A, allowing it to absorb significant transient currents.
This diode is designed for surface mounting, specifically in a TO-263 package.
The maximum reverse leakage current for this model is 2 μA, indicating low leakage during operation.
Typical applications include overvoltage protection in power supply lines and circuit board protection in industrial and automotive electronics.
