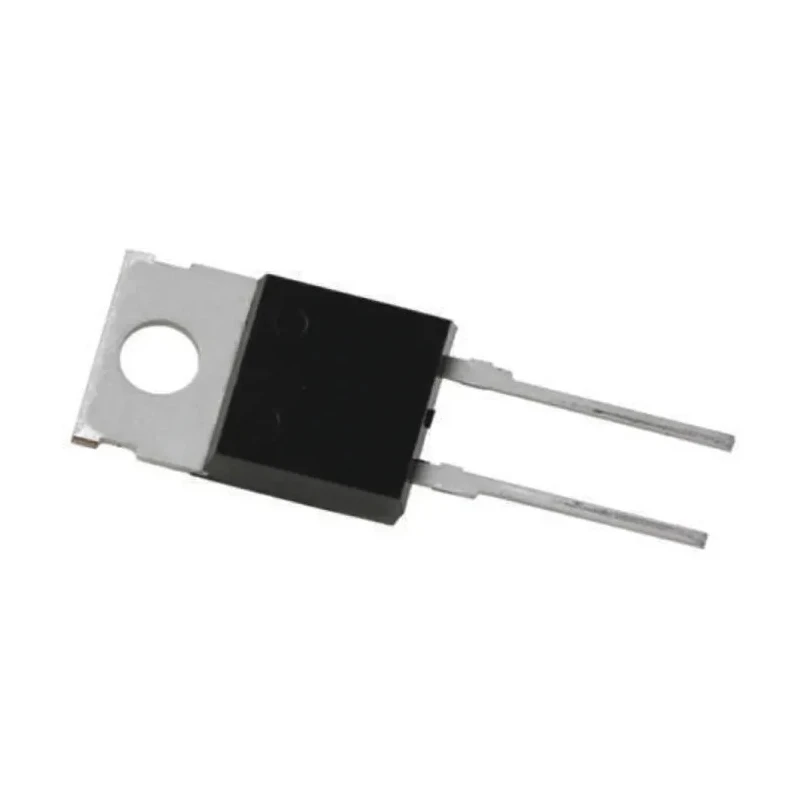

Vishay Fast Recovery Diode 800 V 20 A 2-Pin TO-220 VS-20ETF08-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 10.51mm |
| Brand | Vishay |
| Height | 8.76mm |
| Length | 10.54mm |
| Model | VS-20ETF08-M3 |
| Width | 4.57mm |
| Mount Type | Through Hole |
| Series | VS-20ETF-M3 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 355A |
| Maximum Forward Voltage Vf | 1.31V |
| Peak Reverse Recovery Time trr | 400ns |
| Vishay 1200V 20A, Rectifier Diode, 2-Pin TO-220AC VS-20ETF12-M3Brand | Vishay |
Key Features
- This diode features fast recovery characteristics suitable for high-speed switching applications.
- It has a low maximum forward voltage drop of 1.31 V at rated current.
- Operates efficiently over a temperature range from -40°C to 150°C.
- Designed as a single diode configuration with 2 pins for easy through-hole mounting.
- Peak reverse recovery time of 400 nanoseconds ensures minimal switching losses.
- Complies with RoHS standards for environmental safety.
- Its compact dimensions allow integration into a wide range of electronic circuits.
- High peak non-repetitive forward surge current capability of 355 A provides robustness against transient conditions.
Product Description
Vishay VS-20ETF08-M3 is a fast recovery diode offering a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 800 V. Packaged in a standard 2-pin TO-220 case, this diode is engineered for applications requiring efficient switching and rectification in power electronics.
This diode delivers reliable performance over a wide operating temperature range from -40°C to 150°C, making it suitable for demanding industrial and commercial uses. Its fast recovery capability, with a peak reverse recovery time of 400 ns, minimizes switching losses and improves overall system efficiency.
The device exhibits a low maximum forward voltage drop of 1.31 V at the rated current, optimizing power dissipation. It also supports a high peak non-repetitive forward surge current of 355 A for transient tolerance during startup or fault conditions.
Compliant with RoHS directives, the Vishay VS-20ETF08-M3 diode integrates seamlessly into designs prioritizing both performance and environmental standards.
Common industrial applications include power supplies, motor drives, inverters, and other power conversion equipment where fast switching and high current handling are required. The through-hole mount package ensures compatibility with traditional PCB assembly processes.
This diode features fast recovery characteristics suitable for high-speed switching applications. It has a low maximum forward voltage drop of 1.31 V at rated current. Operates efficiently over a temperature range from -40°C to 150°C.
Designed as a single diode configuration with 2 pins for easy through-hole mounting. Peak reverse recovery time of 400 nanoseconds ensures minimal switching losses. Complies with RoHS standards for environmental safety. Its compact dimensions allow integration into a wide range of electronic circuits.
High peak non-repetitive forward surge current capability of 355 A provides robustness against transient conditions. Typical peak reverse current is limited to 100 microamperes, enhancing reliability. Explore more fast recovery diodes and semiconductor components at EnvMart for your electronic manufacturing and repair needs.
Explore more products in our Semiconductor Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-20ETF08-M3 diode is 20 A.
This diode has a peak reverse repetitive voltage rating of 800 V.
The peak reverse recovery time for the VS-20ETF08-M3 is 400 nanoseconds.
The maximum forward voltage drop at rated current is 1.31 V.
It operates efficiently over a temperature range from -40°C to 150°C.
The VS-20ETF08-M3 is designed for through-hole mounting.
This diode can handle a peak non-repetitive forward surge current of 355 A.
The dimensions of the TO-220 package are 10.54 mm in length, 4.57 mm in width, and 8.76 mm in height.
This model features a pin count of 2.
Yes, the VS-20ETF08-M3 complies with RoHS standards for environmental safety.
The typical peak reverse current is limited to 100 microamperes.
This diode is suitable for applications such as power supplies, motor drives, and inverters, where fast switching and high current handling are required.
