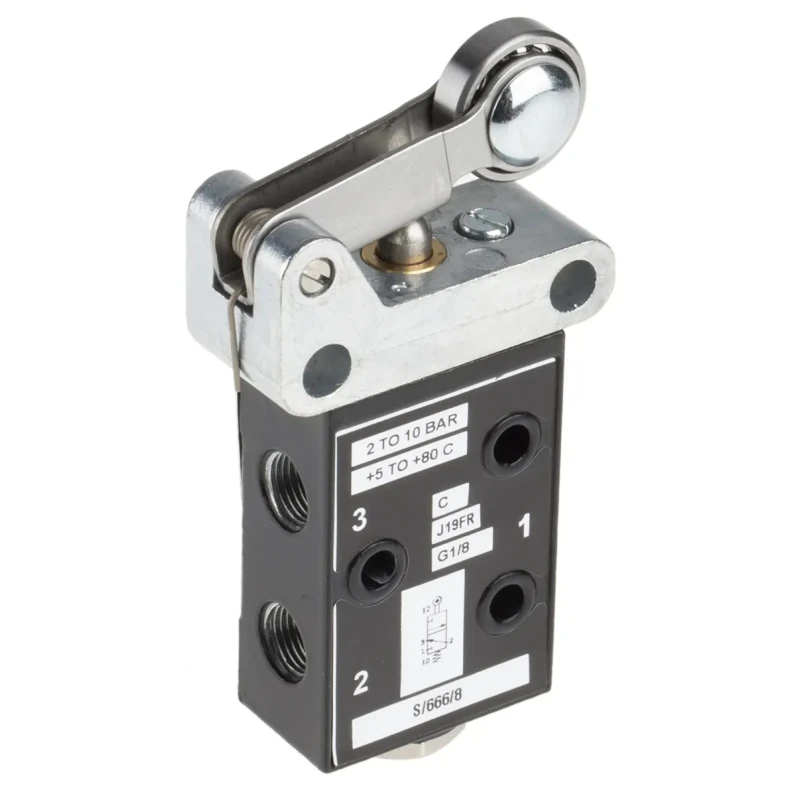

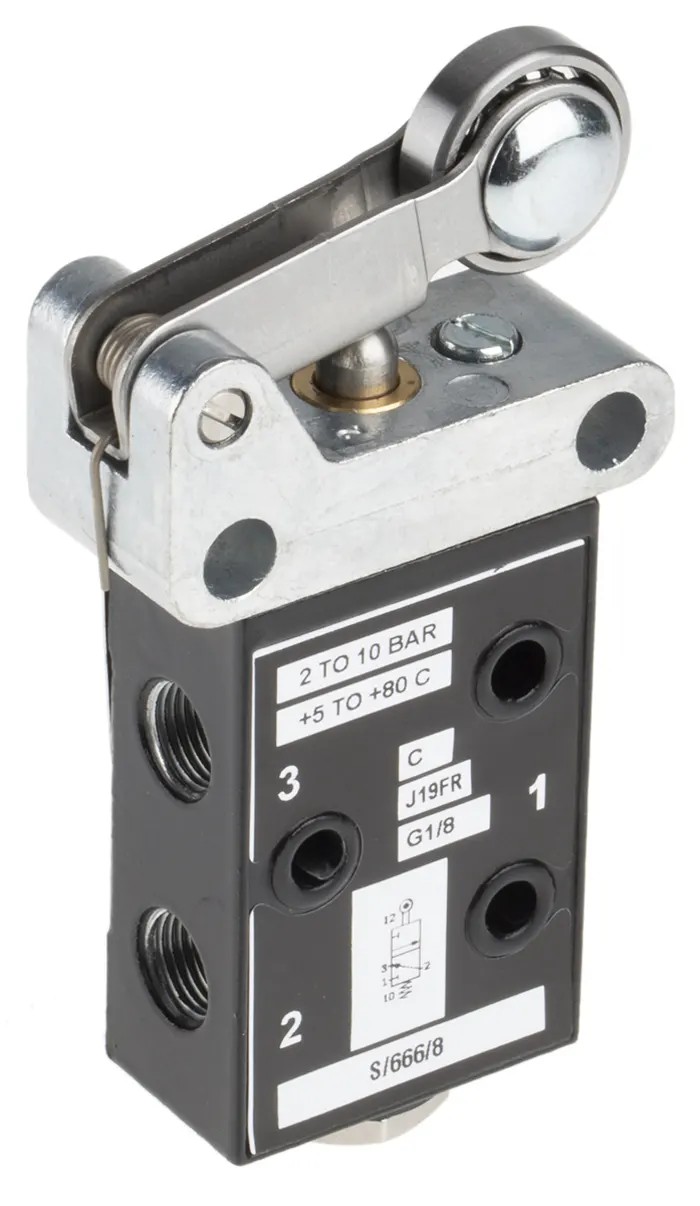

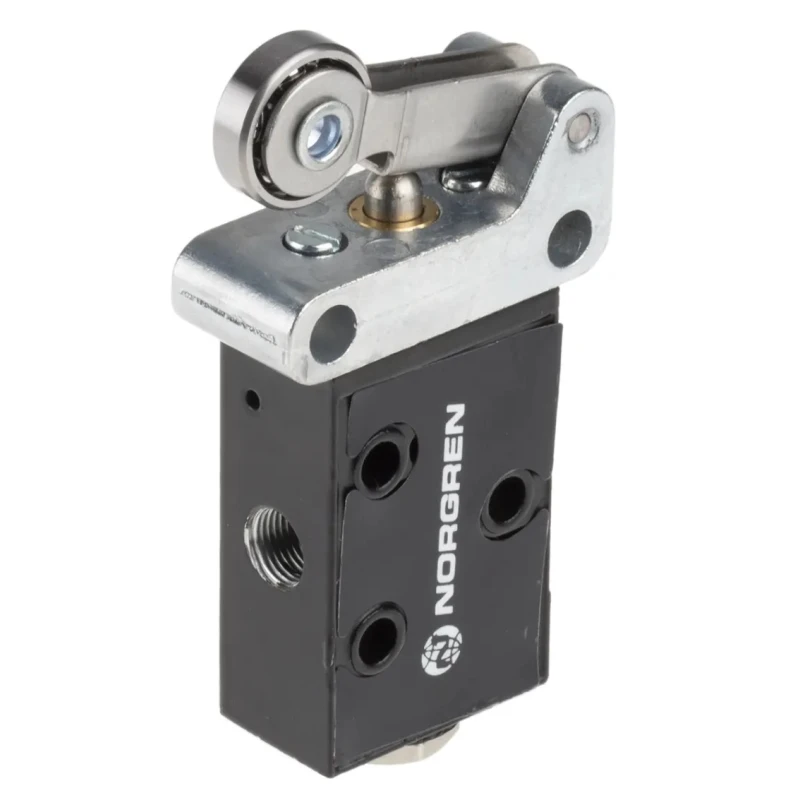

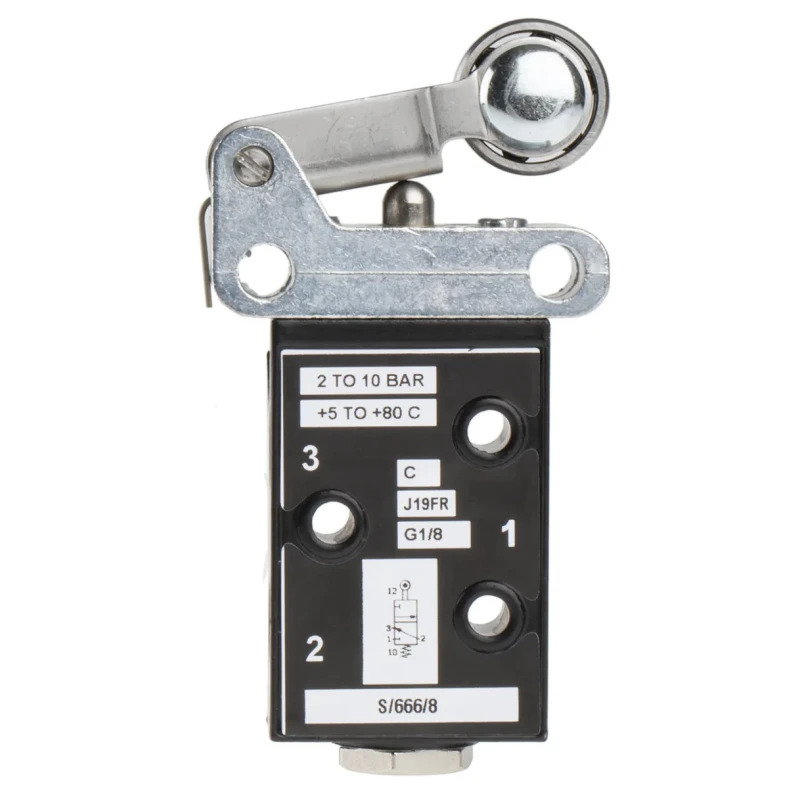

Norgren Roller Pneumatic Manual Control Valve S666 Series, G 1/8, 3/2 Function, 10 bar, 197L/min Flow Rate, Die S/666/83/R

Norgren S/666/83/R Roller Pneumatic Manual Control Valve S666 Series is a high-quality manual control valve designed for precise pneumatic flow regulation in industrial systems. It features a 3/2 valve function allowing air to flow through three ports by shifting between two positions. Alternatively, it can be configured as a 2/2 valve by plugging the exhaust port, enhancing versatility for various applications.

The valve's control mechanism utilizes a roller arm for manual operation, providing tactile feedback and control precision. Constructed with a die cast zinc body, it offers excellent corrosion resistance, ensuring longevity even in demanding environments. With a maximum operating pressure rating of 10 bar and a maximum flow rate of 197 liters per minute, it supports efficient performance in low-pressure pneumatic circuits.

The operating temperature range from -20°C to +80°C allows usage in diverse industrial conditions including medical, pharmaceutical, packaging, assembly plants, and automotive sectors. Its compact dimensions of 51mm height, 33.5mm length, and 19mm width facilitate easy integration into pneumatic assemblies.

The internal poppet mechanism closes ports to regulate fluid flow precisely. The roller spring arm is made of aluminium, providing impact resistance which is suitable for rigorous industrial setups. Mounting is supported via through-holes for stable and convenient installation.

Manual control with roller mechanism ensures precise pneumatic flow regulation. Die cast zinc body provides durable corrosion resistance. Maximum operating pressure of 10 bar supports low-pressure applications. Wide temperature range from -20°C to +80°C for versatile industrial use.

Compact size enables easy integration into assemblies. 3/2 valve function with possibility to use as 2/2 valve by plugging exhaust port. High flow rate of 197L/min suitable for demanding systems. Impact-resistant aluminium roller spring arm increases reliability.

Commonly applied in medical, pharmaceutical, packaging, automotive, and assembly industries.

This pneumatic manual control valve is a reliable component engineered for industrial, manufacturing, medical, and packaging uses where precise air flow control is essential. Explore the extensive range of pneumatic valves and controls at EnvMart for your industrial automation needs.
