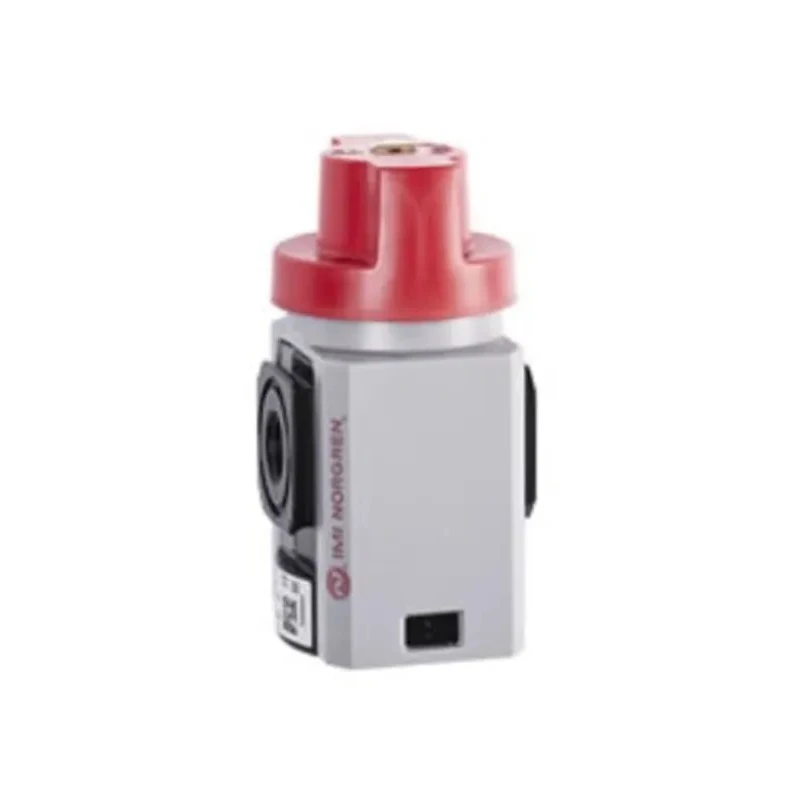

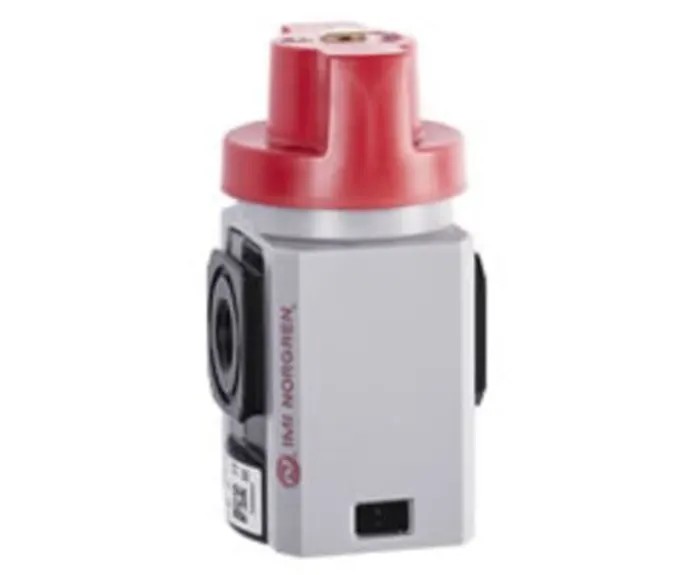

Norgren Pneumatic Manual Control Valve Locking Shut-Off Valve G 1/4 Port Die Cast Aluminium Body 45dm³/s Flow T82T-2GA-B1N
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Norgren |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 48mm |
| Length | 90mm |
| Model | T82T-2GA-B1N |
| Width | 70mm |
| Series | T82T |
| Number Of Ports | 2 |
| Maximum Operating Temperature | +65°C |
| Thread Size | 4-Jan |
| Port Type | Push-in |
| Number of Positions | 3 |
| Port Size | G 1/4 |
| Minimum Operating Temperature | -20°C |
| Maximum Flow Rate | 45dm³/s |
| Control Mechanism | Locking Shut-Off Valve |
| Standards/Approvals | Atex 2014/34/EU II 2 GD Ex h IIC T6 Gb EX h IIIC T85°C Db |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
| Port Gender | Female |
| Control Button/Switch Colour | Red |
Key Features
- Die cast aluminium body provides high tensile strength and corrosion resistance.
- Maximum operating pressure of 10 bar suitable for industrial compressed air systems.
- Red control button allows manual operation and can be padlocked for safety.
- 3/2 valve function with 3 positions and 2 ports for effective air flow control.
- Compatible with temperatures ranging from -20°C to +65°C for harsh environments.
- 45dm³/s maximum flow rate enables high output performance.
- Conforms to ATEX 2014/34/EU standards for safe operation in explosive atmospheres.
Product Description
Norgren T82T-2GA-B1N pneumatic manual control valve locking shut-off valve features a robust die cast aluminium body with brass valve components, designed for controlling compressed air flow in industrial setups.
This valve is manually operated with a red control button that supports locking in the closed position for secure shut-off. The valve incorporates a 3/2-way function with three positions and two ports, and a female G 1/4 push-in port type that ensures easy installation and wide compatibility.
Operating pressure ratings reach up to 17 bar, with a maximum flow rate of 45dm³/s, suitable for demanding pneumatic systems. It performs reliably in temperatures from -20°C to +65°C, making it ideal for harsh and industrial environments such as mining, oil and gas production, and food and beverage industries.
The valve's compact size with dimensions of 90mm length, 70mm width, and 48mm height allows for versatile mounting options including modular or in-line installation. It meets the ATEX 2014/34/EU II 2 GD Ex h IIC T6 Gb EX h IIIC T85°C Db standards for explosive atmosphere safety certification.
Die cast aluminium body offers high durability and corrosion resistance. Lockable red manual control button enhances operational safety. 3/2 valve function suitable for pneumatic flow regulation. Wide temperature range for various industrial applications.
Complies with ATEX standards for hazardous environments. Compact and versatile design for flexible installation. High maximum flow rate to support efficient air distribution.
This reliable Norgren pneumatic manual control valve is engineered to provide precise and safe air flow management in rigorous industrial, manufacturing, HVAC, and pneumatic system applications.
Discover more Pneumatic Manual Control Valves and related pneumatic components in EnvMart’s Industrial Valves & Valve Fittings category to meet your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar, making it suitable for industrial compressed air systems.
It has a maximum flow rate of 45dm³/s, enabling high output performance for pneumatic applications.
This valve operates effectively in temperatures ranging from -20°C to +65°C, suitable for harsh environments.
It features a 3/2 valve function with three positions and two ports for effective air flow control.
The body is made of die cast aluminium, providing high tensile strength and corrosion resistance, while the valve components are brass.
The valve has dimensions of 90mm in length, 70mm in width, and 48mm in height, allowing for versatile mounting options.
This model is manually operated using a red control button that can be padlocked for safety, ensuring secure shut-off.
Yes, it conforms to ATEX 2014/34/EU standards, making it safe for operation in explosive atmospheres.
It features a female G 1/4 push-in port type, ensuring easy installation and compatibility with various systems.
It is suitable for use in various industries, including mining, oil and gas production, and food and beverage applications.
The control mechanism is a locking shut-off valve, which enhances operational safety by allowing secure shut-off.
This valve is manufactured in Mexico, ensuring compliance with industrial standards.
