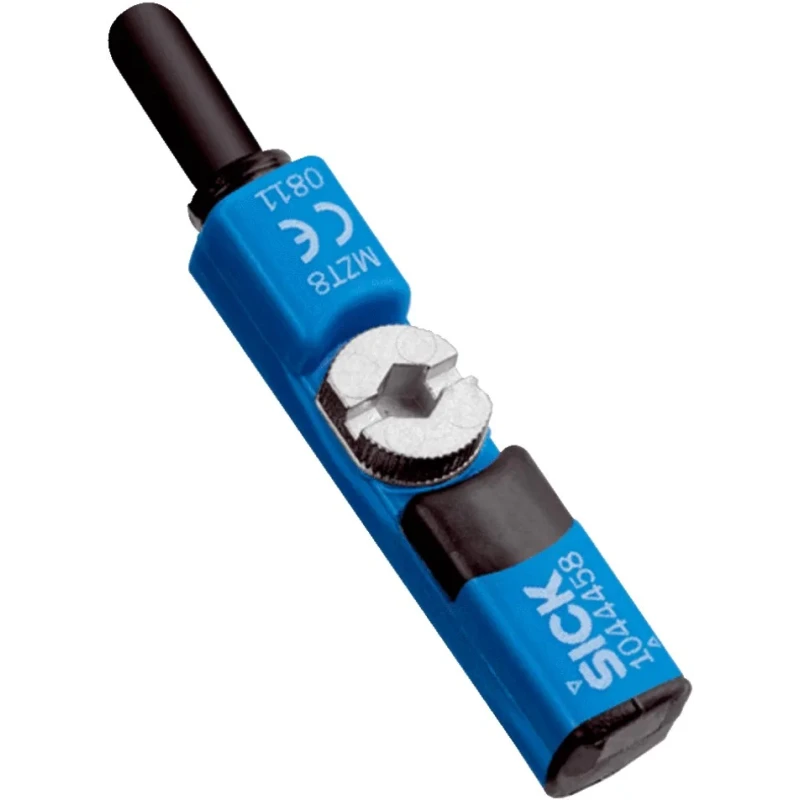

SICK Pneumatic Sensor T-Slot Construction, Magnetic Cylindrical Sensor, IP68, 30V DC, LED Indicator, Model MZT8-03VNS-KR0

SICK MZT8-03VNS-KR0 Pneumatic Sensor is designed specifically for detecting piston positions in pneumatic actuators. Featuring a magnetic cylindrical sensor principle and T-slot construction, it fits various standard pneumatic cylinders and can be adapted to round rod, tie-rod, and profile cylinders using adapters. The sensor housing is made of polyamide 12 plastic material, ensuring a rugged build suitable for demanding industrial environments.

This sensor operates reliably at 30V DC and has an NPN switching action. It boasts an IP68 rating for dust and water resistance, further enhanced by options for IP67 and IP69K ratings on other variants. The sensor works across an operating temperature range of -30°C to 80°C, with high-temperature versions available that endure up to 100°C, supporting applications with challenging thermal conditions.

Mounting the sensor is facilitated by a combined fixing screw, which can be tightened quickly using either a hexagon socket or flat-head screwdriver. The very short sensor housing allows use in short stroke cylinders and ensures minimal intrusion into cylinder operation. The diameter of 2.9mm enables flexibility in compact pneumatic setups.

Integrated LED indicators provide immediate visual feedback on the sensor status, improving machine uptime and diagnostics. The patented GMR technology combined with SICK ASIC electronics ensures precise and reliable switching at the first detection, reducing machine cycle times by preventing multiple switching attempts.

LED indicator enhances operational visibility. Flexible mounting in T-slot and adapted cylinders. Durable polyamide 12 housing provides long service life. 30V DC voltage operation with NPN output switching. High ingress protection with IP68 rating.

Suitable for temperatures from -30°C to 80°C with high-temperature options. Compact diameter of 2.9 mm for short stroke applications. Simple and efficient installation with combined fixing screws. Advanced sensing with patented GMR technology for high precision.

This pneumatic sensor is optimized for industries including consumer goods, machine building, metalworking, electronics, and automotive sectors. It is ideal for monitoring clamping cylinders, cylinder end positions, gripper states, and other pneumatic positioning tasks in industrial automation and assembly lines.

For environmental sealing and increased reliability, this sensor meets multiple enclosure standards including IP67, IP68, and IP69K, ensuring operational integrity in wet, dusty, or high-pressure cleaning conditions. Its robust construction reduces maintenance needs and extends machine operational life.

Choose the SICK MZT8-03VNS-KR0 for precise pneumatic sensor applications requiring durable construction, excellent environmental resistance, and easy installation. Explore more Pneumatic Sensors and related hydraulic tools on EnvMart to find compatible components for your system.
