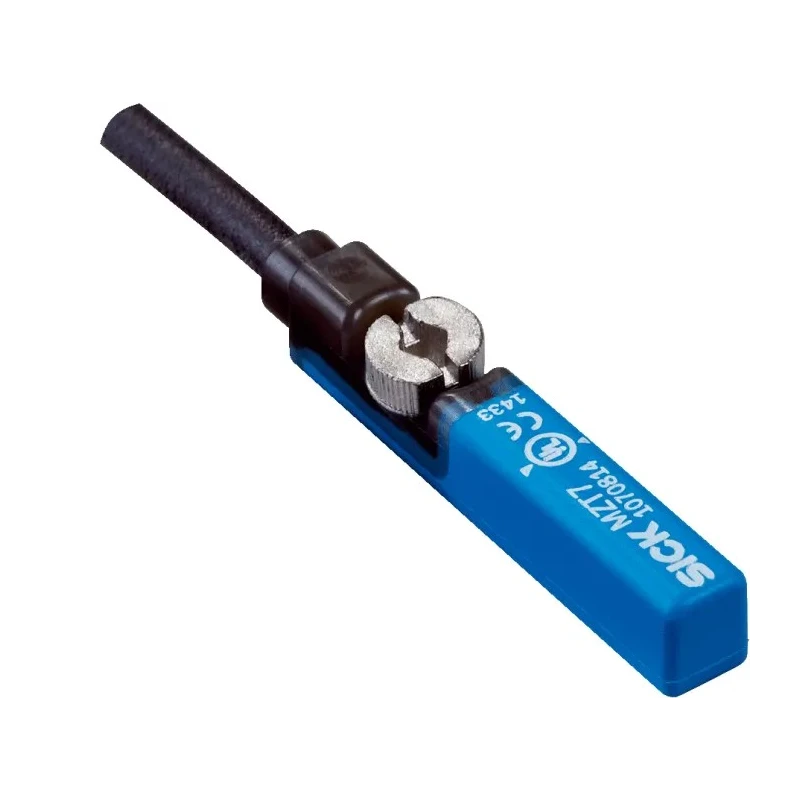

SICK Pneumatic Sensor T-Slot Construction IP65 30V DC PNP Output LED Indicator MZT7-03VPS-KUD

The SICK MZT7-03VPS-KUD pneumatic sensor is designed for industrial applications requiring reliable piston position detection in pneumatic cylinders. Operating at 30V DC with a PNP switching action, the sensor includes an LED indicator to visually confirm output state, enhancing monitoring and diagnostics.

Its IP65 enclosure rating ensures protection against dust and low-pressure water jets, making it suitable for harsh environments in manufacturing and automation. The sensor operates reliably within a temperature range of -30°C to 80°C, offering versatility across different operating conditions.

Mounting the sensor is straightforward; retaining ribs hold it securely in place before the fixing screw is tightened. The combined hexagon and slotted screw mechanism enables fast installation with a simple quarter-turn lock, providing both speed and security. The rugged fixing screw ensures the sensor remains stable during exposure to shock and vibration.

In addition, replacement during servicing is easy and quick, requiring no dismantling of cylinder end caps, thereby reducing machine downtime. The magnetic cylindrical sensor measurement principle employed provides reliable piston detection in pneumatic drives, crucial for precise machine control.

Applications of the SICK MZT7 include packaging machines, woodworking machines, handling and assembly technology, electronics manufacturing, textile machinery, and special purpose machines. It helps in removal of faulty products, monitoring clamping devices, position checking of trays, rotary gripper monitoring, and textile tracking on overhead conveyors.

A sensor designed for integration in demanding industrial environments, combining robust mechanical design with precise sensing capabilities. Its plastic housing ensures durability without compromising lightweight handling.

Set includes the SICK MZT7-03VPS-KUD pneumatic sensor with integrated LED indicator and mounting hardware compatible with standard T-slot cylinders. The sensor fits all standard T-slot cylinders worldwide regardless of cylinder profile or make.

Mounting is simplified by retaining ribs that hold the sensor before the fixing screw is tightened. The fixing screw enables fast and secure installation with a quarter turn to lock the sensor into place. The sensor includes an LED for clear indication of output state.

Constructed of durable plastic housing, it offers robust performance in industrial pneumatic applications. Supports a wide operating temperature range from -30°C to 80°C. Designed with magnetic cylindrical sensor measurement principle for reliable piston position detection in pneumatic drives.

Its IP65 rating ensures resistance to dust and water ingress in demanding environments. Simple replacement is possible without removing cylinder end caps, reducing downtime during servicing. Widely applied in packaging machines, handling and assembly technology, woodworking, electronics production, textile machinery, and special machine construction.
