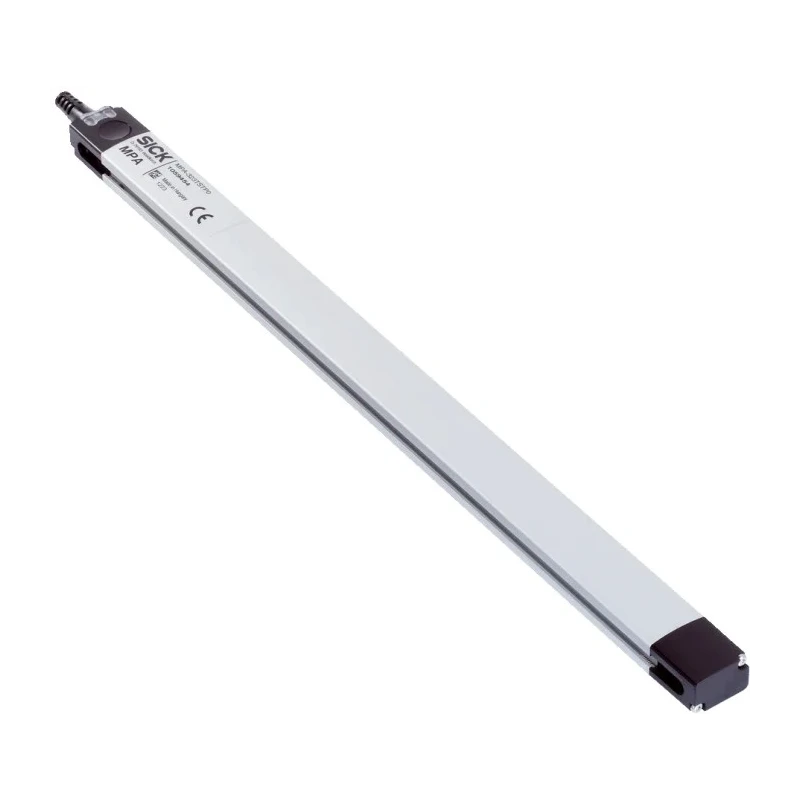

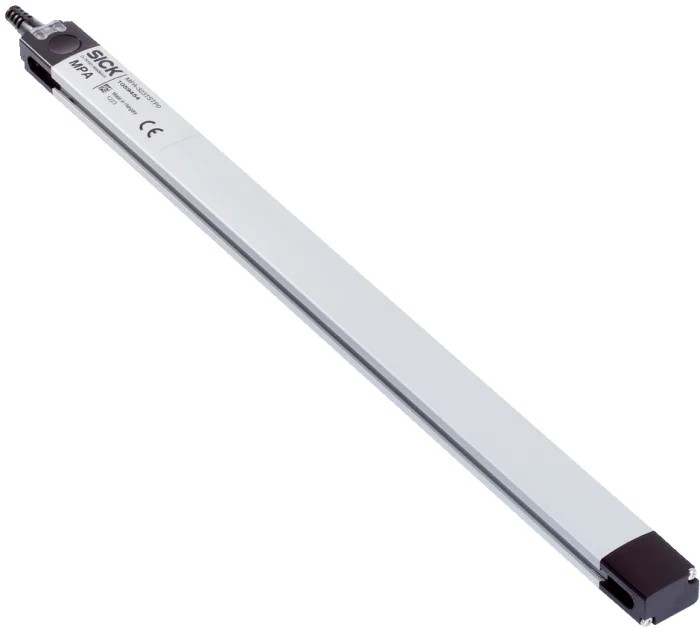

SICK Cable Pneumatic Position Detector IP65 30V dc Magnetic Cylindrical Sensor with LED Indicator MPA-359THTU0
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 30V dc |
| Diameter | 2.6mm |
| Brand | SICK |
| Model | MPA-359THTU0 |
| IP Rating | IP65 |
| Width | 20mm |
| Housing Material | Plastic, Metal, Aluminium |
| Construction | Universal |
| Series | MPA-359THTU0 |
| Maximum Operating Temperature | 70°C |
| Measurement Principle | Magnetic Cylindrical Sensor |
| Minimum Operating Temperature | -20°C |
| Analogue Output | 0 to 10 V dc, 4 to 20 mA |
| For Use With | Universal |
| Output Function | IO Link, Analogue |
| Standards/Approvals | According to EN 60529, According to EN 60947-5-2 |
| Electrical Connection Type | Cable |
Key Features
- Provides continuous piston position detection for pneumatic cylinders.
- Equipped with an LED indicator for operational status visualization.
- Offers analogue outputs (0 to 10 V dc, 4 to 20 mA) and IO-Link communication.
- Robust IP65 rated aluminum, metal, and plastic housing for durability.
- Suitable for various cylinder types with easy external mounting.
- Allows parameter adjustment via teach pad or IO-Link during operation.
- Operates reliably within a temperature range of -20°C to 70°C.
- Features a 2.6 mm diameter sensor and compact 20 mm wide housing.
Product Description
SICK MPA-359THTU0 cable pneumatic position detector is designed for precise and continuous piston position detection on pneumatic cylinders. Featuring a magnetic cylindrical sensor principle, this sensor operates at 30V dc and provides superior reliability with a rugged IP65-rated aluminum and plastic housing.
Suitable for universal use, it can be mounted easily on tie-rod, round body, and profile cylinders without mechanical coupling components. The integral LED indicator assists quick status checks on operation.
The device supports analogue output signals (0 to 10 V dc and 4 to 20 mA) along with IO-Link communication for enhanced diagnostic and parameterization flexibility via teach pad or digital interface. This non-contact sensor eliminates wear and ensures consistent performance across a working temperature range of -20°C to 70°C.
Its slim 2.6 mm diameter sensor and compact 20 mm width housing allow mounting in confined spaces, expanding its utility in complex pneumatic systems.
Common industrial applications include dancer position detection, product pusher monitoring, end position and press travel sensing, wear monitoring of grinding heads, and quality control processes such as laser line measurement. Integration of this sensor upgrades pneumatic cylinders into intelligent components capable of delivering detailed position data for process control and automation.
Continuous piston position detection with non-contact magnetic sensing. Robust IP65 rated housing combining aluminum, metal, and plastic components. Flexible outputs including analogue signals and IO-Link interface. Easy installation on multiple cylinder types without piston coupling elements.
Wide operating temperature range and reliable LED status indicator.
SICK Pneumatic Position Detectors like the MPA-359THTU0 are ideal for industrial, manufacturing, automation, and fluid power applications where precise position monitoring is critical. Explore more pneumatic cylinder sensors to enhance your pneumatic system's intelligence and performance at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage of this sensor is 30V DC.
It uses a magnetic cylindrical sensor principle for continuous piston position detection.
The sensor has a diameter of 2.6 mm and a width of 20 mm.
It operates reliably within a temperature range of -20°C to 70°C.
This model offers analogue outputs of 0 to 10 V DC and 4 to 20 mA, as well as IO-Link communication.
The housing is made of a combination of plastic, metal, and aluminum, providing an IP65 rating.
It can be easily mounted on tie-rod, round body, and profile cylinders without the need for mechanical coupling components.
Common applications include dancer position detection, product pusher monitoring, and quality control processes such as laser line measurement.
It complies with EN 60529 and EN 60947-5-2 standards.
Yes, it is equipped with an LED indicator for operational status visualization.
The construction is universal, allowing for versatile use across different applications.
Parameters can be adjusted via a teach pad or through the IO-Link interface during operation.
