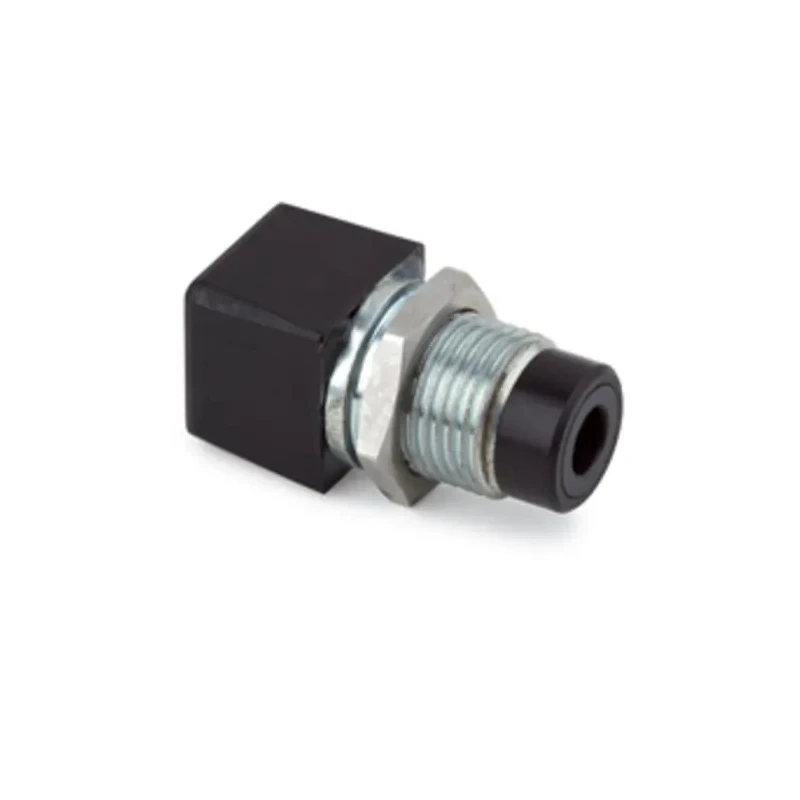

Global Laser 635 nm 0.8 mW Diode Laser Module with TTL Control and Ellipse Pattern 5V 3.3 V 1266-26-000

Global Laser 1266-26-000 is a miniature diode laser module producing a highly stable 635 nm red laser with an optical power of 0.8 mW. Featuring TTL modulation control and a precision A/R coated adjustable collimating lens, it delivers an ellipse-shaped laser beam that can be finely focused to meet varied application needs.

The laser diode, collimating lens, and driver circuit are compactly integrated within a 24 mm long, 14 mm diameter threaded barrel for easy bulkhead mounting with excellent thermal contact to heat sinks. Electrical isolation between Diode and casing, transient and polarity protection, and a latching connector enhance operational reliability.

Operating voltage ranges from 3.3 V minimum to a 5 V maximum with a supply current of 40 mA. It adheres to Laser Class 2 safety standards under IEC 60825-1:2014 certification and functions in ambient temperatures from -10°C to 55°C.

The module includes a third TTL modulation input (≥100 kHz bandwidth) for precise laser power switching and a fourth wire enabling slow speed control input for interlocks and safety switches. Various external optics can be fitted including lines, crosses, grids, and diffractive patterns, making it adaptable for machine vision, positioning, alignment, medical, and industrial automation tasks.

The robust laser package supports diverse industrial, manufacturing, laboratory, and electronic component applications requiring stable, finely controlled laser output. Compatible optics extend its functionality to specialized pattern generation for marking and inspection.

Its design ensures high output power stability and reliable operation under challenging conditions. Threaded barrel mounting ensures secure and thermally efficient installation onto heat sinks. Explore a wide range of Global Laser products and accessories in the Laser Modules category at EnvMart for your precision laser needs.
