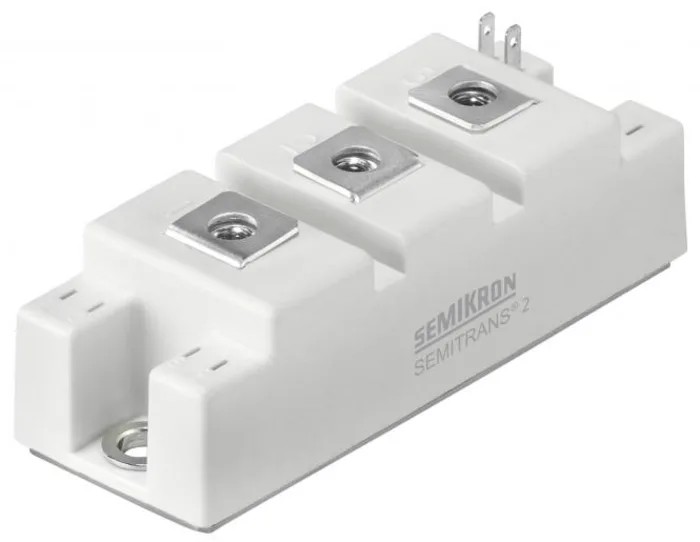

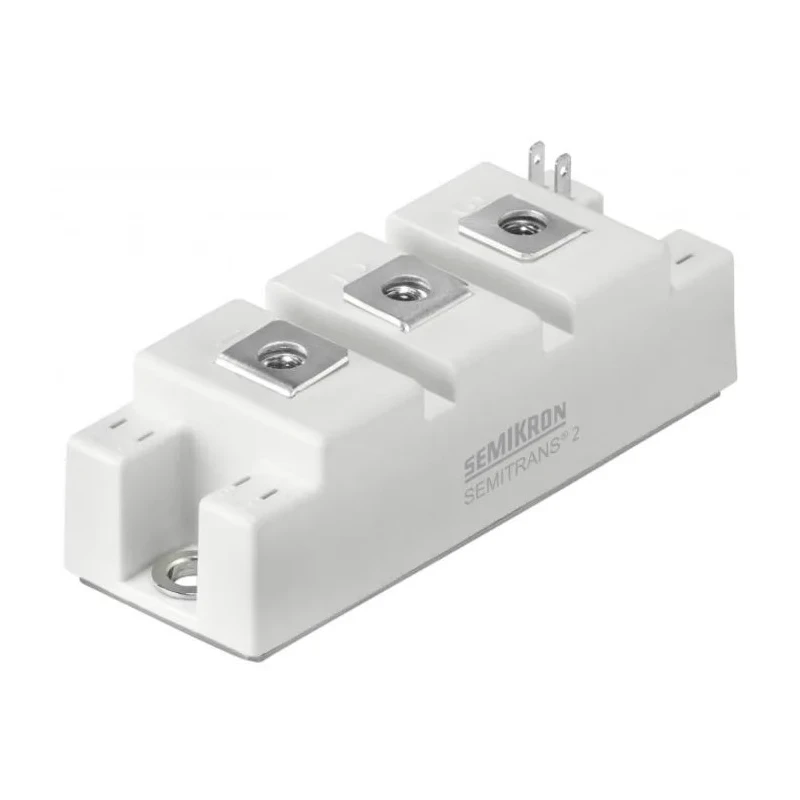

Semikron Danfoss N-Channel IGBT Module SEMITRANS 2 GAL 160 A 1200 V Surface Mount SKM100GAL12T4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30mm |
| Length | 94mm |
| Model | SKM100GAL12T4 |
| Width | 34mm |
| Mount Type | Surface |
| Series | SKM100GAL12T4 |
| Maximum Operating Temperature | 175°C |
| Package Type | SEMITRANS 2 GAL |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL, File no. E63532 |
| Maximum Continuous Collector Current Ic | 160A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.4V |
| Channel Type | N |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Maximum continuous collector current of 160 A for robust current capacity.
- Collector emitter voltage rated at 1200 V ensuring high voltage operation.
- SEMITRANS 2 GAL package surface mount style for efficient cooling and integration.
- Operates reliably within a temperature range of -40°C to 175°C.
- Integrates a 4th generation CAL diode and isolated copper baseplate.
- Suitable for applications including hybrid and electric vehicles, electronic welders, DC/DC converters, brake choppers and switched reluctance motors.
- Soft switching capability improves power cycling and operational efficiency.
- Compact dimensions of 94 mm length, 34 mm width, and 30 mm height.
Product Description
Semikron Danfoss SKM100GAL12T4 is a high-performance N-Channel IGBT Module featuring the SEMITRANS 2 GAL package with a maximum continuous collector current rating of 160 A and a collector emitter voltage of 1200 V. This surface mount device is engineered to provide reliable operation in industrial and automotive power electronics applications.
The module includes innovative DBC (Direct Bonded Copper) technology providing an isolated copper baseplate that enhances thermal management and mechanical durability. It also integrates the soft switching 4th generation CAL diode within the module for improved switching characteristics and reduced losses.
Operating temperature ranges from -40°C to 175°C, supporting harsh environmental conditions in automotive systems, industrial welders, and DC/DC converters. The maximum switching frequency capability of 20 kHz enables use in high-frequency power control and motor drive applications.
Its mechanical dimensions of 94 mm length, 34 mm width, and 30 mm height suit compact power assemblies. The module complies with UL safety standards (File no. E63532), ensuring stringent quality and performance validation.
This IGBT module is ideal for use in hybrid or electric vehicles, electronic welders, brake choppers, switched reluctance motors, and other demanding industrial power applications where efficient switching and high power handling are required.
Maximum continuous collector current of 160 A. 1200 V collector emitter voltage rating. SEMITRANS 2 GAL surface mount package. Temperature range from -40°C to 175°C. Integrated 4th generation CAL diode and DBC copper baseplate.
Suitable for automotive and industrial power electronics. High switching frequency capability of 20 kHz. Complies with UL standards for safety and reliability. Compact dimension of 94x34x30 mm. Explore a wide range of IGBT Modules and power semiconductor components on EnvMart for your industrial and automotive electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 160 A.
The collector emitter voltage rating is 1200 V.
It operates reliably within a temperature range of -40°C to 175°C.
The dimensions are 94 mm in length, 34 mm in width, and 30 mm in height.
This model features a surface mount type for efficient integration.
The maximum switching frequency capability is 20 kHz.
Yes, it complies with UL safety standards, specifically File no. E63532.
It integrates a 4th generation CAL diode for improved switching characteristics.
It is suitable for applications such as hybrid and electric vehicles, electronic welders, and DC/DC converters.
The maximum gate emitter voltage is 20 V.
It uses Direct Bonded Copper (DBC) technology for enhanced thermal management and mechanical durability.
The channel type of this module is N-Channel.
