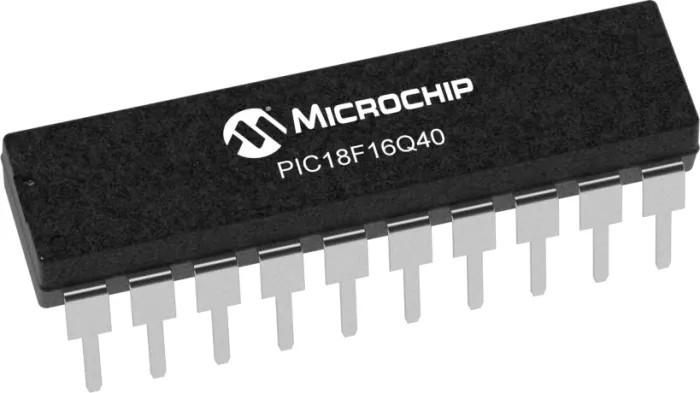

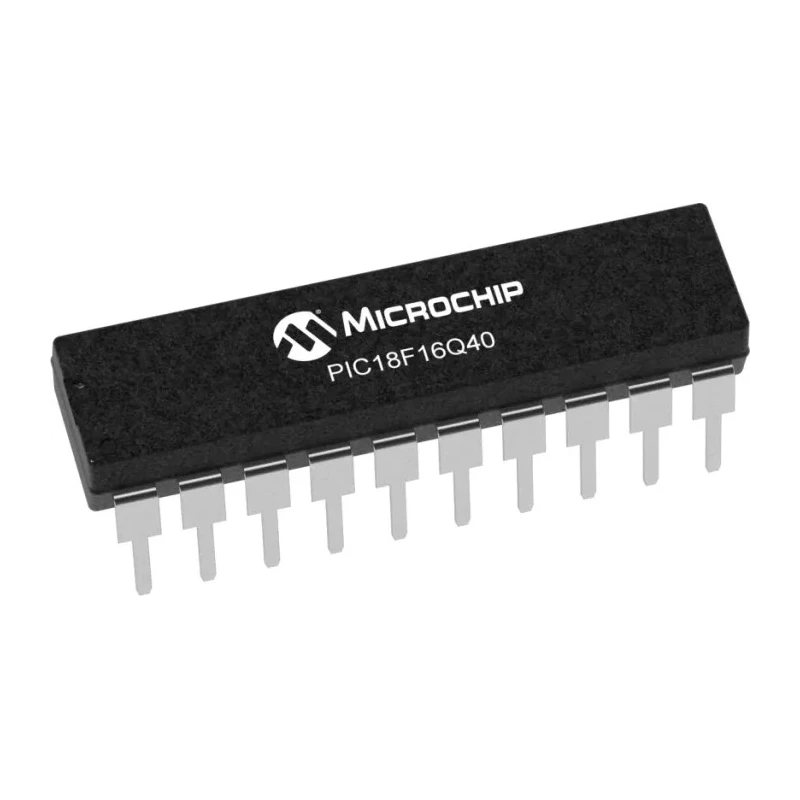

Microchip 8 bit PIC Microcontroller, 64 MHz, 64kB FLASH, 20-Pin PDIP PIC18F16Q40-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.4mm |
| Length | 24.4mm |
| Model | PIC18F16Q40-I/P |
| Width | 7.62mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- The microcontroller features an 8-bit data bus width ideal for embedded applications.
- It includes a 10-bit ADC, 5-bit DACs, and 2 analogue comparators for versatile signal processing.
- Operating voltage ranges from 2.5 V minimum to 5.5 V maximum, supporting low power designs.
- Programmable 18 I/Os and a RISC instruction set architecture enable efficient control.
- RoHS compliant construction ensures environmental safety and quality.
- Compact dimensions of 24.4 mm length, 7.62 mm width, and 4.4 mm height suit space-constrained applications.
- Operating temperature range from -40°C to 85°C supports industrial usage.
- Includes features such as three 16-bit dual PWMs, DMA controllers, and vectored interrupt capability for real-time control.
Product Description
Microchip PIC18F16Q40-I/P is a high-performance 8-bit PIC microcontroller designed for real-time control and sensor applications. It operates at a maximum clock frequency of 64 MHz and utilizes 64kB of FLASH program memory, providing ample space for complex embedded programs.
This microcontroller is housed in a 20-Pin PDIP package which supports surface mount technology, enabling integration in compact devices. It features an 8-bit data bus width and a PIC device core based on the RISC architecture for efficient instruction execution.
The device includes advanced peripherals such as a 10-bit Analog-to-Digital Converter (ADC), 5-bit Digital-to-Analog Converters (DACs), two analogue comparators, and three 16-bit dual Pulse Width Modulators producing six PWM outputs, suitable for motor control and signal generation tasks. Four Direct Memory Access (DMA) Controllers improve data handling efficiency by reducing CPU load.
It supports a supply voltage range from 2.5V to 5.5V, making it suitable for low-power applications. The component is RoHS compliant, ensuring it meets current environmental standards.
Size constraints are addressed with its small form factor of 24.4 mm length by 7.62 mm width and 4.4 mm height, ideal for space-sensitive industrial, laboratory, and embedded system designs. The operating temperature range from -40°C to +85°C makes it reliable for harsh environmental conditions.
The microcontroller enables fast interrupt responses through vectored interrupt capability. It supports multiple communication interfaces, enhancing versatility in system integration. Ideal for industrial automation, sensor interfacing, and embedded control applications.
Compact package and high integration facilitate efficient electronic component design.
This Microchip PIC18F16Q40-I/P unit is new and sourced from India, and is intended to streamline product development and manufacturing processes in various electronics domains. For further exploration of Microchip Microcontrollers, visit our dedicated electronics components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It features a program memory size of 64kB, allowing for complex embedded programs.
The operating voltage ranges from 2.5V to 5.5V, making it suitable for low-power applications.
This model includes 18 programmable I/Os for versatile control in embedded applications.
The dimensions are 24.4 mm in length, 7.62 mm in width, and 4.4 mm in height.
It features a 10-bit ADC and 5-bit DACs, along with two analogue comparators for signal processing.
The operating temperature range is from -40°C to +85°C, suitable for industrial environments.
This microcontroller is housed in a 20-Pin PDIP package, supporting surface mount technology.
Yes, it is RoHS compliant, ensuring it meets current environmental standards.
It is based on the RISC instruction set architecture, which allows for efficient instruction execution.
This microcontroller includes two analogue comparators for enhanced signal processing capabilities.
It includes three 16-bit dual PWMs, DMA controllers, and vectored interrupt capability for real-time control.
